Electric Technology

Electric_webbanner-01
  • finlay-j1175-electric-tracked-jaw-crusher

    J-1175 Electric

    The Finlay® J-1175 electric jaw crusher has been designed to meet the needs of customers for whom electricity is the preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the grid or a genset electrical power source.

    Specification Value
    Net Engine Power CAT C4.4 130hp CAT C4.4 97kW
    Inlet Opening 42" x 30" 1070mm x 760mm
    Operating Weight 119,711lbs 54,300kg
    Transport Dimensions Height 11' 6'' | Width 9' 6'' | Length 47' 8'' Height 3.5m | Width 2.9m | Length 14.5m
    Working Dimensions No Value
  • finlay-j1175-electric-tracked-jaw-crusher

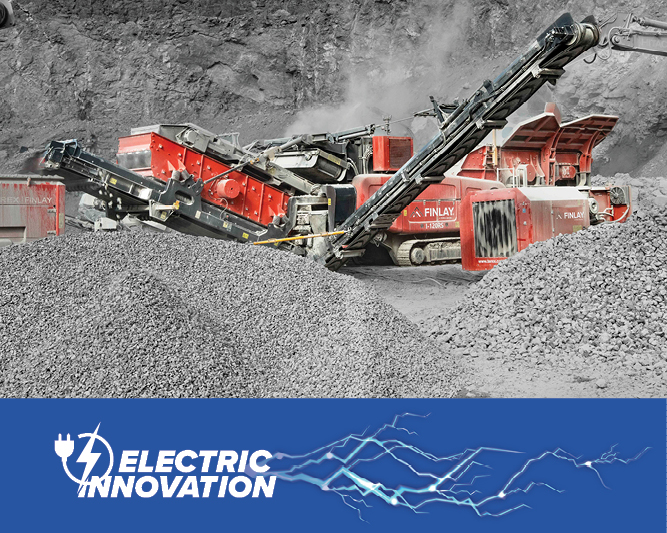

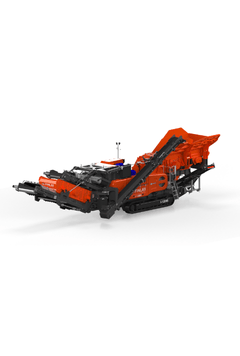

    I-120RS Electric

    The Finlay® I-120RS electric impact crusher has been designed to meet the needs of customers for whom electricity is the preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the grid or a genset electrical power source.

    Specification Value
    Net Engine Power CAT 2.2 74hp CAT 2.2 55kW
    Rotor Size Ø41” x 44” Ø1033mm x 1100mm
    Operating Weight 106,153lbs 48,150kg
    Transport Dimensions Height 11' 2'' | Width 10' 2'' | Length 59' Height 3.4m | Width 3.1m | Length 18m
    Working Dimensions Height 15' 5'' | Width 19' 1'' | Length 58' 6'' Height 4.7m | Width 5.8m | Length 17.8m
  • finlay-c1540-electric-tracked-cone-crusher

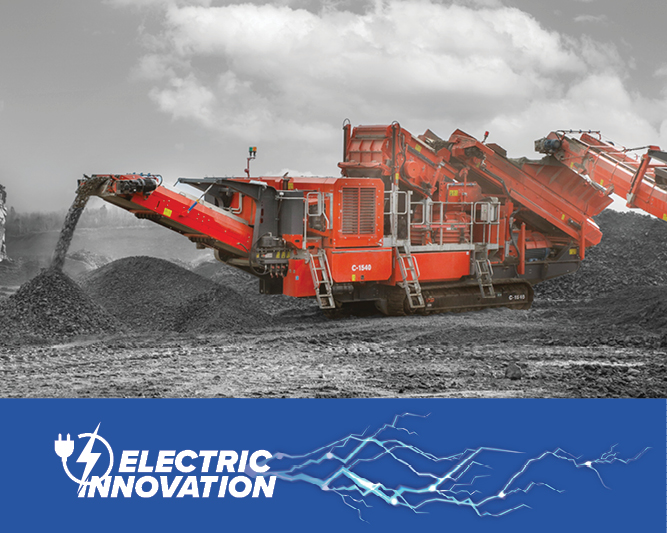

    C-1540 Electric

    The Finlay® C-1540 electric cone crusher has been designed to meet the needs of customers for whom electricity is the preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the electricity grid or a secondary electrical power source.

    Specification Value
    Net Engine Power CAT C4.4 130hp CAT C4.4 97kW
    Cone Head Diameter 40” 1000mm
    Transport Weight 99,914lbs 45,320kg
  • wr-80-radial-conveyor-stacking-aggregates

    WR-80

    The Finlay® WR-80 wheeled radial conveyor is essential for producers who want to produce a consistent quality product and reduce segregation, degradation, compaction and contamination of material in the stockpile. The machine features a 22.85m (74’ 10”) discharge conveyor that has the capacity to transfer up to 300tph (330 US Tph) of material.

    Specification Value
    Conveyor Length 74' 10" 22.85m
    Belt Width 36" 900mm
    Max Discharge Height 30' 1" 9.2m
    Working Dimensions Width: 14"8" Length: 74' 10" Height: 32' 7" Width: 4.48m Length: 22.85m Height: 9.95m
    Output Potential 330 300
  • rt140-telescopic-conveyor-stockpiling-rock-in-a-quarry

    RT-140

    The Finlay® RT-140 telescopic conveyor is essential for producers who want to produce a consistent quality product and reduce segregation, degradation, compaction and contamination of material in the stockpile. The machine features a 42.45m (139’ 3”) discharge conveyor that has the capacity to transfer up to 600tph of material.

    Specification Value
    Conveyor Length 137' 9" 42m
    Belt Width 36" 900mm
    Max Discharge Height 48' 14.6m
    Transport Dimensions Width: 11"4" Length: 89' 11" Height: 13' 6" Width: 3.45m Length: 27.4m Height: 4.1m
    Output Potential 661tph 600tph
