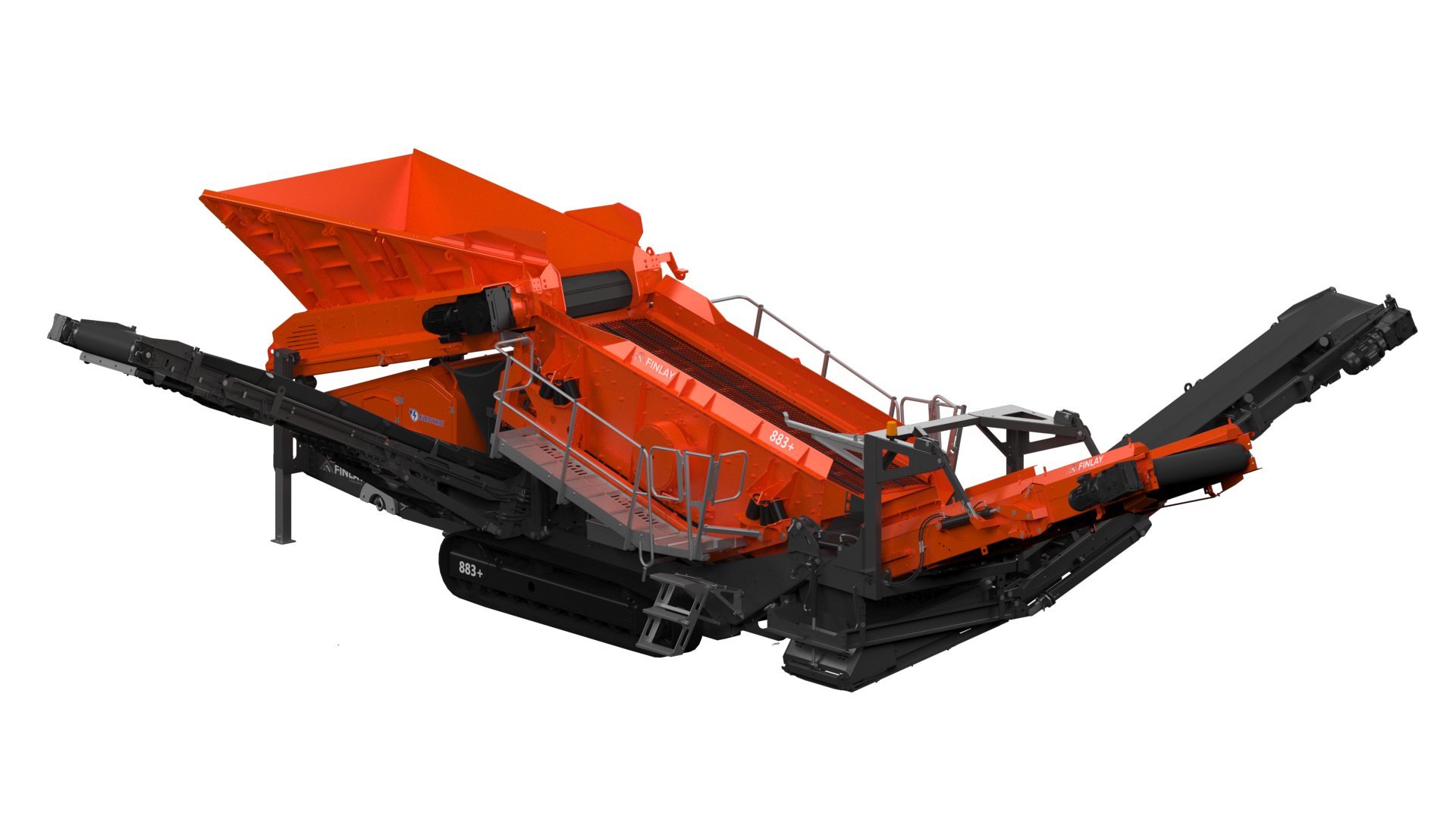

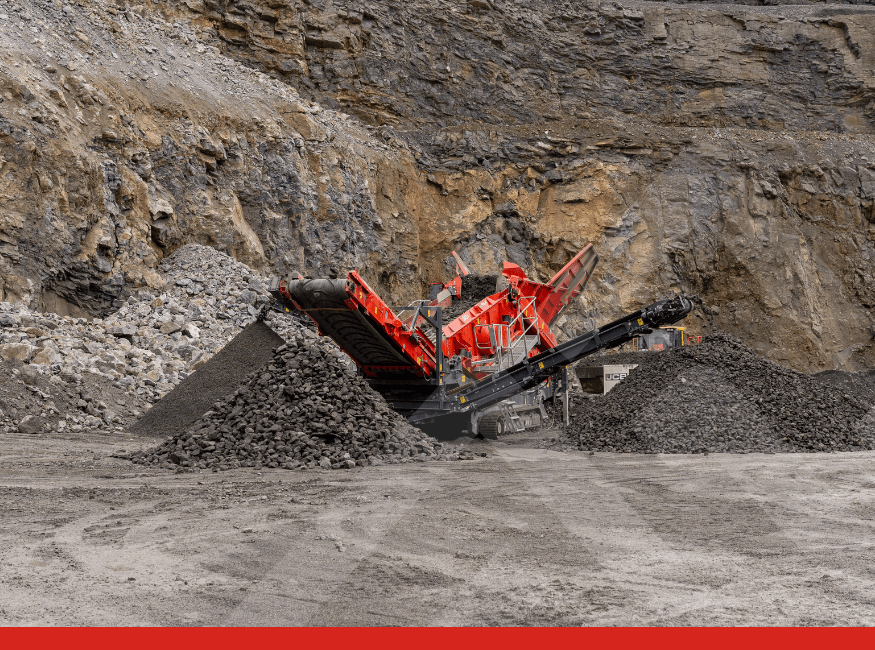

883+ Electric
Electric Scalper
The Finlay® 883+ Electric Scalper has been designed to meet the needs of customers for whom electricity is the preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the grid or a genset electrical power source.
In operational mode the plant’s electrical drive system powers the feeder, screenbox and all conveyors without compromising on performance and flexibility in applications.
For ease of transport the machine is fitted with an onboard engine that can be engaged for powering the tracks to enable movement around the job site.
As the world moves towards a more environmentally friendly future investing in electric powered equipment can position your business to a long-term sustainability and compliance with changing regulations.
Key Features:
- Significant reduction in operating costs by powering from grid electricity.
- Reduced carbon footprint with the elimination of Co2 gas emissions and reduction in engine noise when operating in both urban and indoor environments.
- Electric powered equipment typically require less maintenance than diesel counterparts reducing maintenance costs.
- Maximised machine availability and uptime as scheduled service interval periods are longer.
- Electric screeners are more energy-efficient and cost effective to operate compared to diesel powered screeners.
Downloads
Hopper/Feeder
Powerunit
Screenbox
Midgrade Conveyor
Undercarriage
Fines Conveyor
Oversize Conveyor
Image Gallery
| Specification | Value |
|---|---|
| Power Unit | CAT 2.2 55KW (75HP) - Covers all regions / CAT 2.2 55KW (75HP) - Covers all regions |
| Screen | 16'' x 5'' / 4.8m x 1.53m |
| Weight | 71,650lbs / 32,500kg |
| Transport Dimensions | Height 11' 2'' | Width 9' 10'' | Length 49' 4'' / Height 3.4m | Width 3.1m | Length 14.95m |
| Working Dimensions | Height 15' 9'' | Width 41' 12'' | Length 49' 2'' / Height 4.8m | Width 12.8m | Length 14.98m |
