J-1280
Jaw Crusher

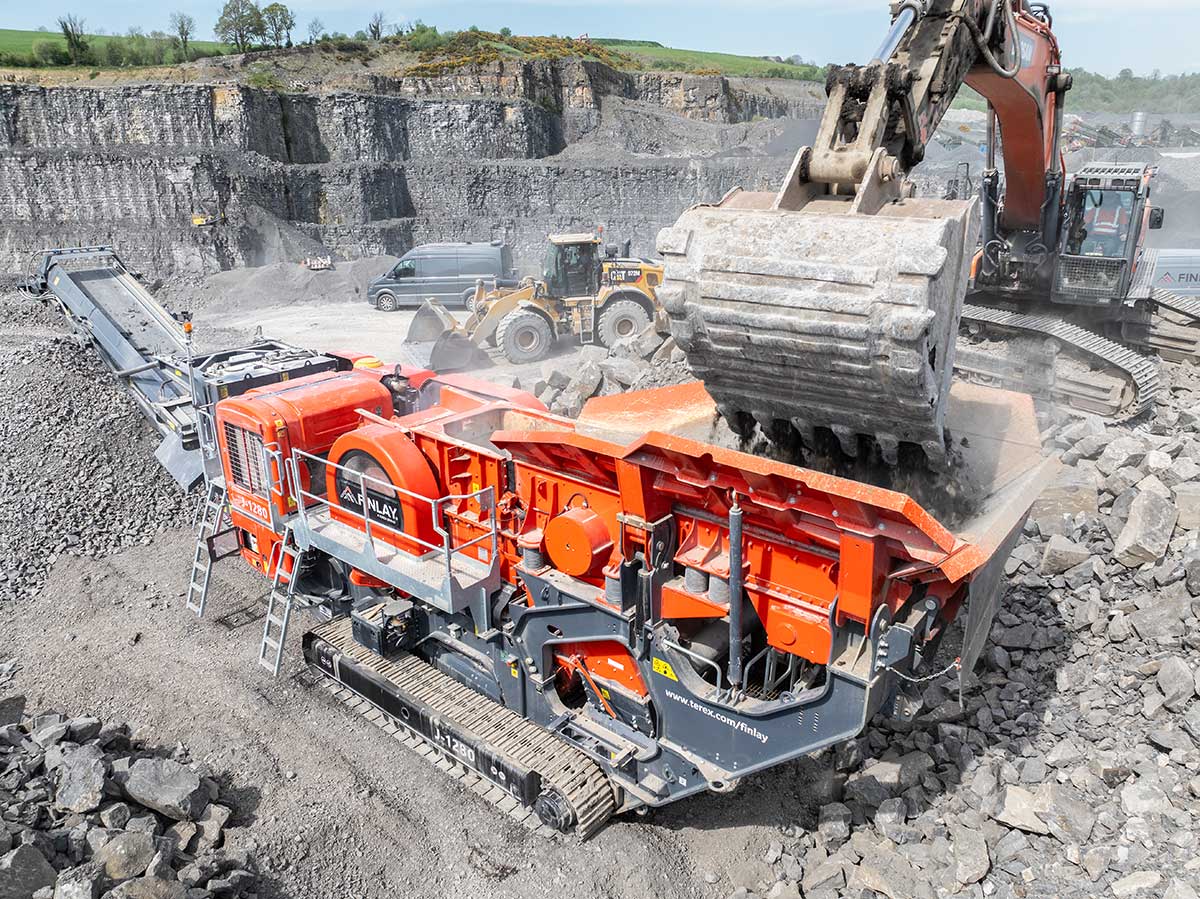

The Finlay J-1280 Jaw Crusher is a powerful new addition to Finlay's tracked mobile crusher lineup, engineered to deliver exceptional performance in a highly transport-friendly package. Designed to bridge the gap between the J-1175 and the larger J-1480, this machine is the ideal solution for medium-sized quarries and larger contractors seeking high capacity without the logistical challenges associated with heavier equipment.
At its core, the J-1280 features a large 1200mm x 820mm (47" x 32") jaw chamber, offering a wide gape and robust throughput capabilities for hard rock applications. A standout feature is its hydrostatic drive system, which allows the crusher to continuously operate in reverse. This crucial functionality enables quick and safe clearing of blockages, significantly improving safety by reducing the need for working at height and minimizing downtime by eliminating lock-out/tag-out procedures during unblocking.
Key Features:
- Large Jaw Chamber: Features a 1200mm x 820mm (47" x 32") Terex® single toggle jaw chamber with a wide gape for robust throughput in hard rock applications.
- Hydrostatic Drive System: Allows continuous reverse operation for safe and rapid clearing of blockages, reducing downtime and enhancing safety.
- Optimal Transportability: Engineered for easier transport and weighing less than the J-1480, providing high capacity with reduced logistical challenges.
- Flexible Feed-in Configurations: Available with a standard vibrating grizzly feeder (VGF), a pre-screen option, and an extended pan feeder with pre-screen, allowing customization for specific application needs.

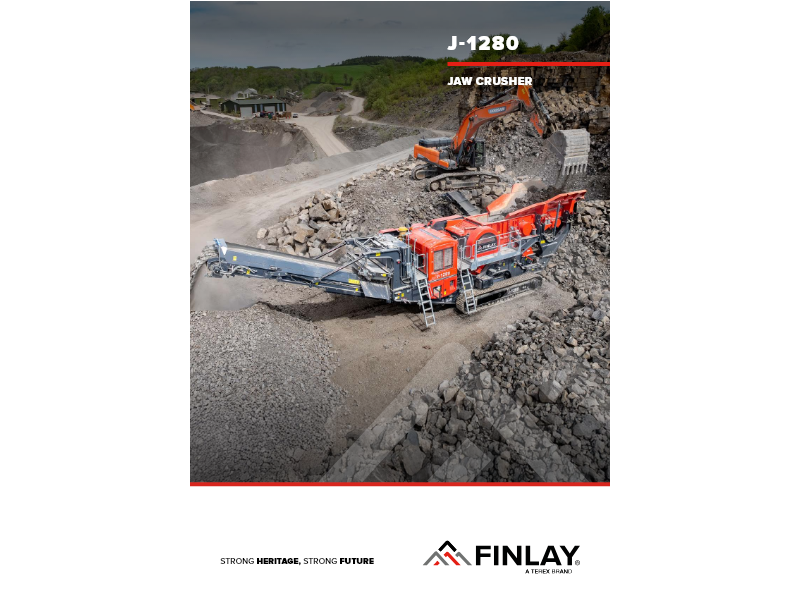

Downloads
Image Gallery
| Specification | Value |
|---|---|
| Net Engine Power | Tier 3/Stage III: Caterpillar C13 328kW (440hp) / Tier 4F/ Stage V: Scania DC13 331kW (450hp) / Tier 3/Stage III: Caterpillar C13 328kW (440hp) / Tier 4F/ Stage V: Scania DC13 331kW (450hp) |
| Inlet Opening | 47" x 32" / 1200mm x 820mm |
| Operating Weight | 167,419lbs / 75,940kg |
| Transport Dimensions | Height 12' 6" | Width 9' 10" | Length 56' 1" / Height 3.8m | Width 3.0m | Length 17.1m |
| Working Dimensions | Height 14' 9" | Width 26' 5" | Length 54' 7" / Height 4.49m | Width 8.06m | Length 16.63m |
