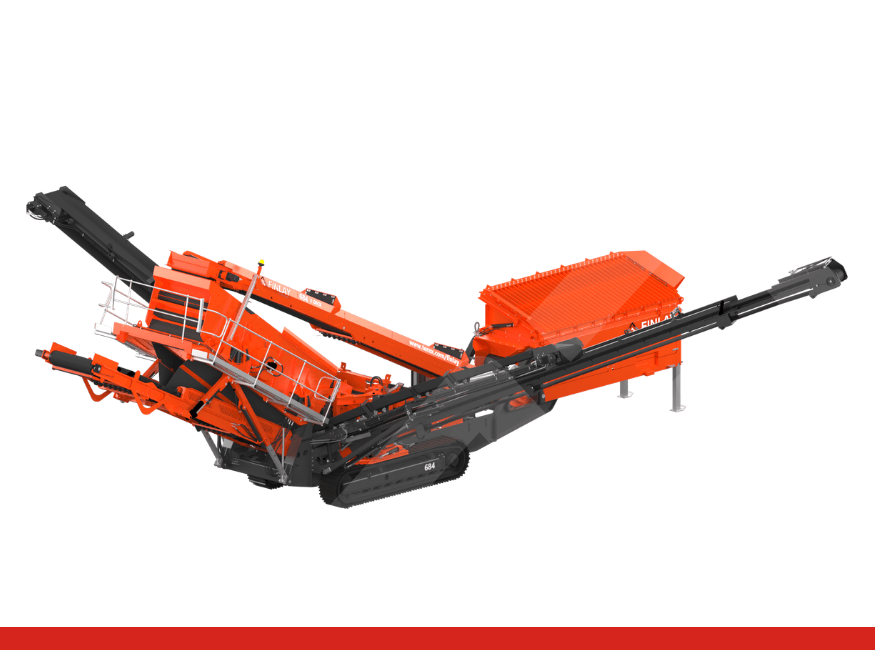

684 3-Deck
Inclined Screen
The Finlay® 684 3-Deck Screener is a compact easily transportable machine that offers operators rapid set up and tear down times.
The screenbox features three large 4.3m x 1.7m (14’ x 5’ 7”) inclined screens giving a large screening area of 236ft2 to provide efficient screening and high capacity. The screenbox features quick wedge tensioning, access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes.
All four discharge conveyors are adjustable and hydraulically fold for transport. The fourth product ‘oversize plus’ conveyor has variable tilt and side slew to accurately discharge material for recirculation and stockpiling.
The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine.
Key features:
- Triple deck 4.3m x 1.7m (14’ x 5’ 7”) screen with full catwalk access.
- The fourth (oversize plus) conveyor provides variable tilt and slide slew capability to accurately discharge materials for recirculation to crushers or for stockpiling.
- Maximum utilisation of three 4.3m x 1.7m (14’ x 5’ 7”) decks provides ultra-effi cient screening capabilities even at small aggregate sizes.
- A combination of quick wedge tensioning, convenient access holes and hydraulic tensioning on the bottom deck ensure mesh set up and change out times are kept to an absolute minimum.
- T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
Screenbox
Main conveyor
Hopper / feeder
Oversize plus conveyor
Midgrade conveyor
Midgrade conveyor
Undercarriage
Fines conveyor
T-Link Telematics
| Specification | Value |
|---|---|
| Net Engine Power: Tier 3 / Stage IIIA | Tier 3 - Cat 113hp | Tier 4F / Stage IV - 111hp / Tier 3 - CAT 83kW | Tier 4F / Stage IV - Cat 82kW |
| Screen | 14’ x 5’ 7” / 4.3m x 1.7m |
| Weight | 73,800lbs / 33,500kg |
| Transport Dimensions | Height 11' 7'' | Width 9' 10'' | Length 57' 10'' / Height 3.5m | Width 3m | Length 17.62m |
| Working Dimensions | Height 20' | Width 57' 8'' | Length 60' 7'' / Height 6.1m | Width 17.57m | Length 18.47m |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
