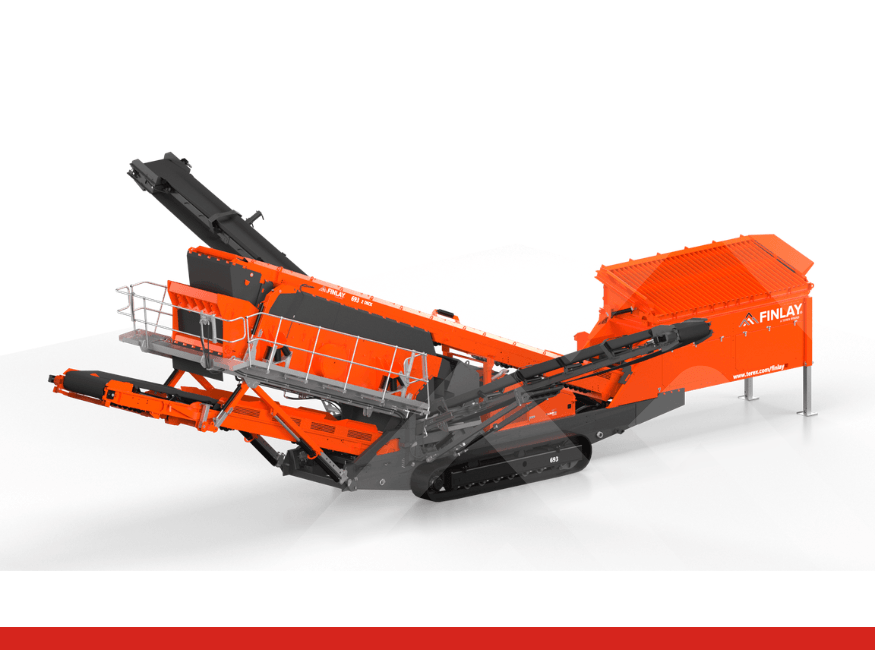

693 Hybrid

Inclined Screener

693-tracked-mounted-stone-screener-in-stone-quarry

The Finlay® 693 hybrid inclined screen has been developed to fulfill the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications.

The new high energy screenbox features two full size 6.1m x 1.53m (20’ x 5’) decks that can process fine, sticky and dirty material with ease. The large hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid.

The hydraulics system has been upgraded to provide the optimum balance of power and efficiency and the powerpack designed to operate at lower engine speeds to raise cost-efficiency in the long term without compromising on performance.

The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.

Key Features:

Simplified and reconfigured folding mechanism for the onboard product conveyors for ease of deployment and user-friendly operation.
Hydraulic folding catwalks as standard for improved onsite efficiency and to enable rapid screenbox deployment.
Maximum utilisation of two 20’ x 5’ (6.1m x 1.53m) decks provide ultra-efficient screening capacities even at small aggregate sizes.
Screen box angle can be hydraulically adjusted to an angle between 18°and 30°.
T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Downloads

Brochure_Finlay_693

Please enable marketing cookies for this feature

Specification	Value
Net Engine Power	Tier 3/Stage IIIA - CAT C4.4 83kW \| Tier 4F/Stage V - Cat C3.6 82kW (Dual Certified) / Tier 3/Stage IIIA - CAT C4.4 83kW \| Tier 4F/Stage V - Cat C3.6 82kW (Dual Certified)
Screen	20’ x 5’ (top deck) \| 18' x 5' (bottom deck) / 6.1m x 1.53m (top deck) \| 5.55m x 1.53m (bottom deck)
Weight	76,500lbs / 34,700kg
Transport Dimensions	Height 11' 10'' \| Width 10' 4'' \| Length 62' 2'' / Height 3.6m \| Width 3.15m \| Length 18.95m
Transport Weight	76,831lbs / 34,850kg

Brochure_Finlay_693

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.

T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
