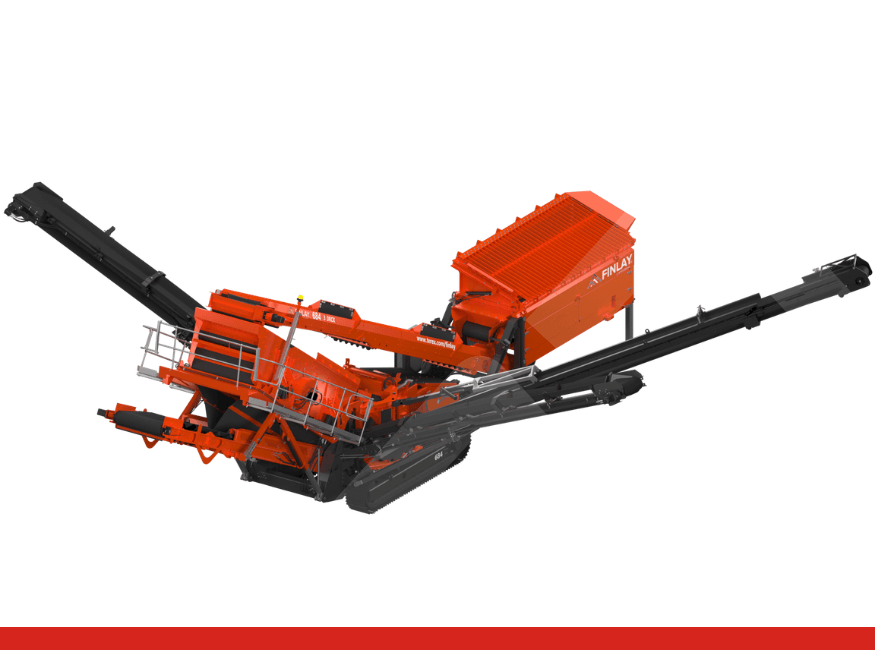

684 3-Deck Hybrid

Inclined Screener

684-portable-triple-deck-screen-in-quarry

The Finlay® 684 3 deck screener is a compact easily transportable machine that offers operators rapid set up and tear down times.

The screenbox features three large 4.3m x 1.7m (14’ x 5’ 7”) inclined screens giving a large screening area of 236ft2 to provide efficient screening and high capacity. The screenbox features quick wedge tensioning, access holes and bottom deck hydraulic tensioning system to reduce time required for mesh changes.

All four discharge conveyors are adjustable and hydraulically fold for transport. The fourth product ‘oversize plus’ conveyor has variable tilt and side slew to accurately discharge material for recirculation and stockpiling.

The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.

Key Features:

Triple deck 4.3m x 1.7m (14’ x 5’ 7”) screen with full catwalk access.
The fourth (oversize plus) conveyor provides variable tilt and slide slew capability to accurately discharge materials for recirculation to crushers or for stockpiling.
Maximum utilisation of three 4.3m x 1.7m (14’ x 5’ 7”) decks provides ultra-effi cient screening capabilities even at small aggregate sizes.
A combination of quick wedge tensioning, convenient access holes and hydraulic tensioning on the bottom deck ensure mesh set up and change out times are kept to an absolute minimum.
T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Request a Quote

Specification	Value
Net Engine Power: Tier 3 / Stage IIIA	Caterpillar C4.4 (102hp) / Caterpillar C4.4 77kW
Net Engine Power: Stage IIIA Constant Speed	Caterpillar C4.4 (131hp) / Caterpillar C4.4 98.1kW
Net Engine Power: Tier 4F / Stage IV	Caterpillar C4.4 (110hp) / Caterpillar C4.4 82kW
No. Stockpilers	4 / 4
Transport Weight	73,800lbs / 33,500kg

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.

T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
