693+ Spaleck Hybrid

Inclined Screener

693-spaleck-screener-with-flip-flow-screen

The Finlay® 693+ Spaleck Inclined Screener is the ultimate in mobile fine screening and separation technology. At the heart of the plant is an innovative 2-deck German designed and constructed high performance aggressive screenbox with state of the art flip flow technology on both the top and bottom decks.

Its processing capabilities and application flexibility make this Spaleck Inclined Screener the ultimate tracked mobile solution for the processing and separation of recycling materials. These materials include incineration slag, shredder light and heavy fraction, scrap metal, electronic scrap, compost, clay, quarry dust, agg-lime, plastic fractions, biomass, topsoil, ore and aggregates etc.

The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.

Key Features:

Highly flexible and adaptable and capable of operating with ease in wet, moist, sticky, dry, mixed recycling, virgin ore and aggregate materials.
Dynamic wear resistant screening mats ensure an efficient material flow.
High acceleration forces of the screening mats ensures accurate screening and creates a self-cleaning effect preventing blinding of the screening mats.
The Flip-Flow screen with boltless mounted screen mats avoids unnecessary cleaning and reduces maintenance times.
T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.

Downloads

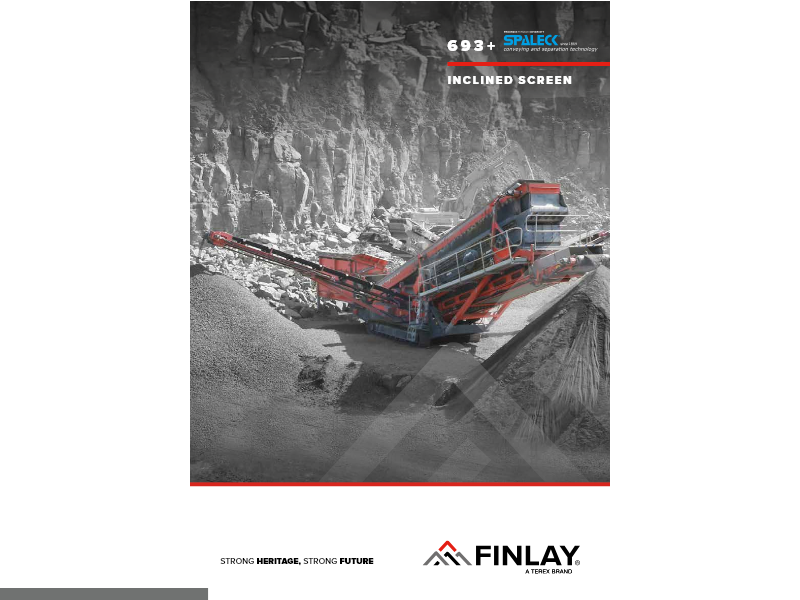

Finlay-693+-Spaleck-Inclined-Screen

Please enable marketing cookies for this feature

Specification	Value
Net Engine Power: Tier 3 / Stage IIIA	Caterpillar C4.4 (121hp) / Caterpillar C4.4 90kW
Net Engine Power: Stage IIIA Constant Speed	Caterpillar C4.4 (131hp) / Caterpillar C4.4 98.1kW
Net Engine Power: Tier 4F / Stage IV	Caterpillar C4.4 (110hp) / Caterpillar C4.4 82kW
No. Stockpilers	3 / 3
Transport Weight	72,900lbs / 33,050kg

Finlay-693+-Spaleck-Inclined-Screen

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.

T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
