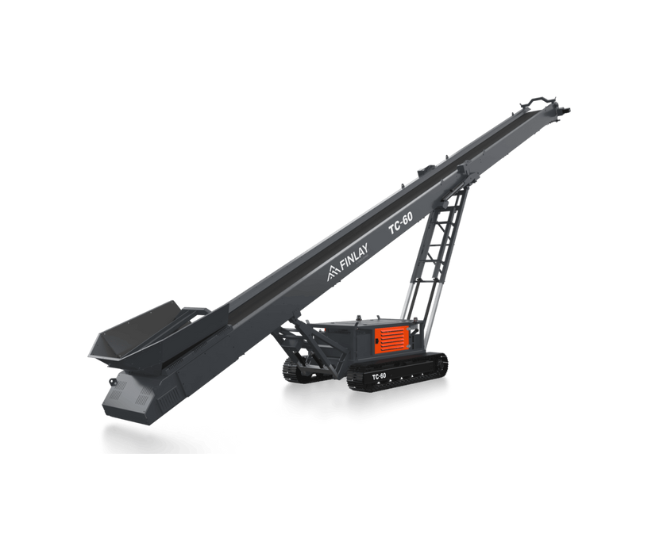

TC-60
The Finlay® TC-60 is a highly versatile tracked stacking conveyor designed for efficient stockpiling and material transfer. With a 60-foot conveyor, enhanced feedboot options, and fully remote-controlled operat...

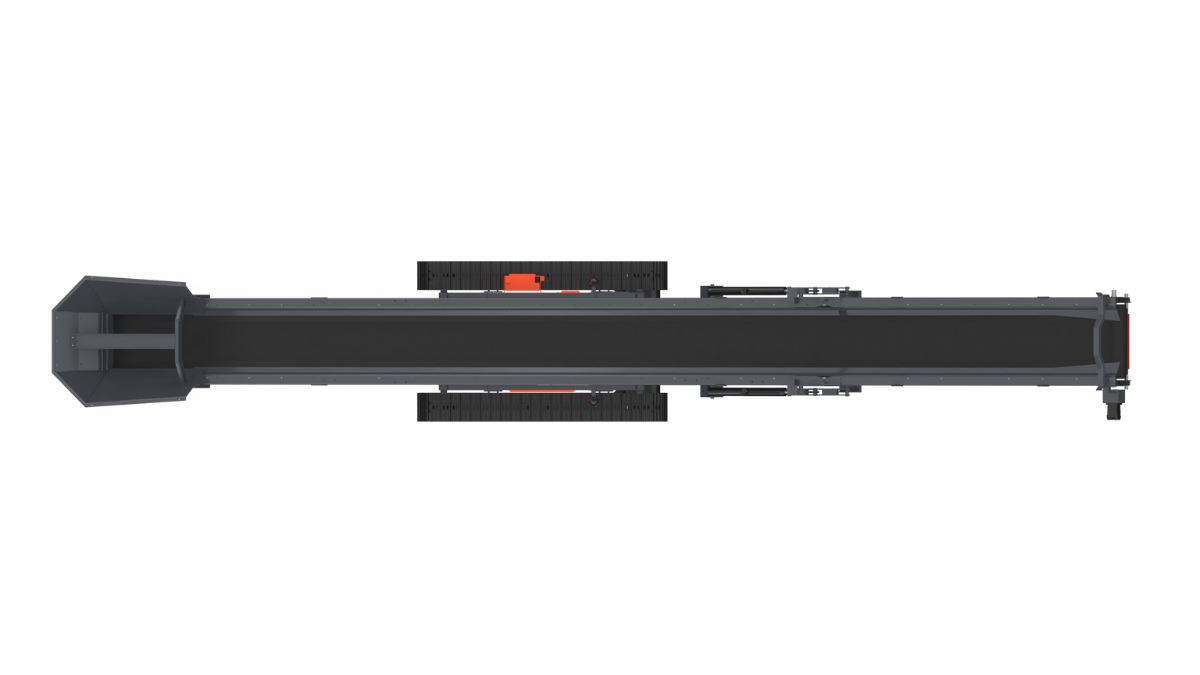

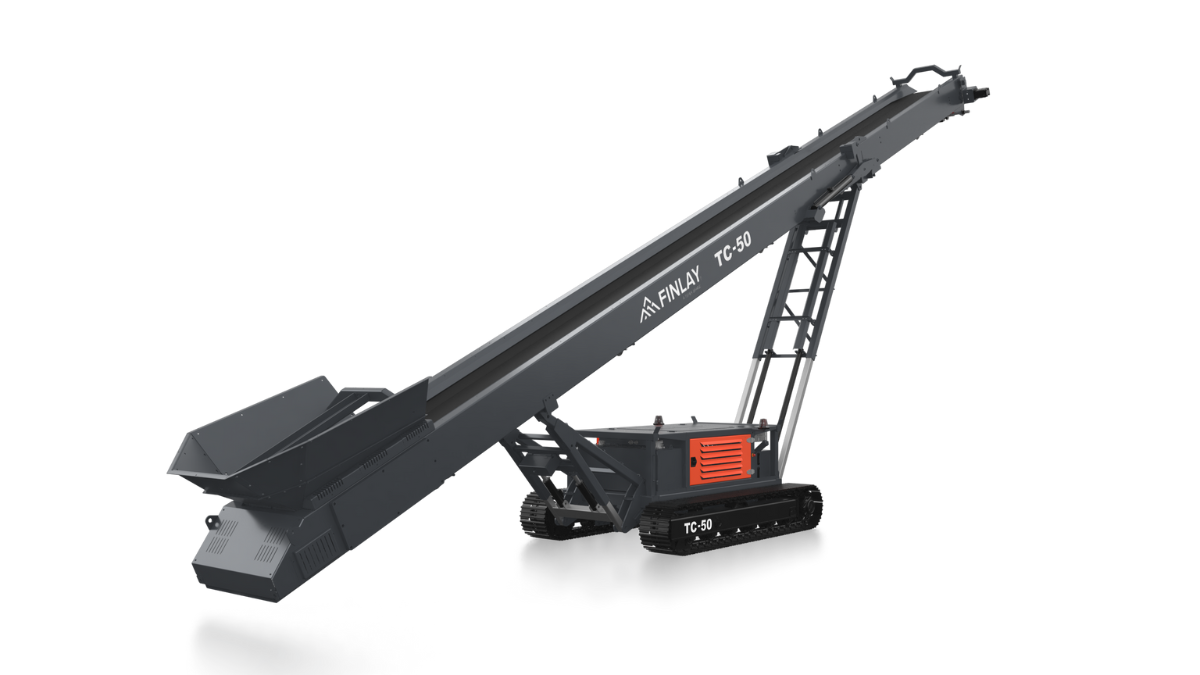

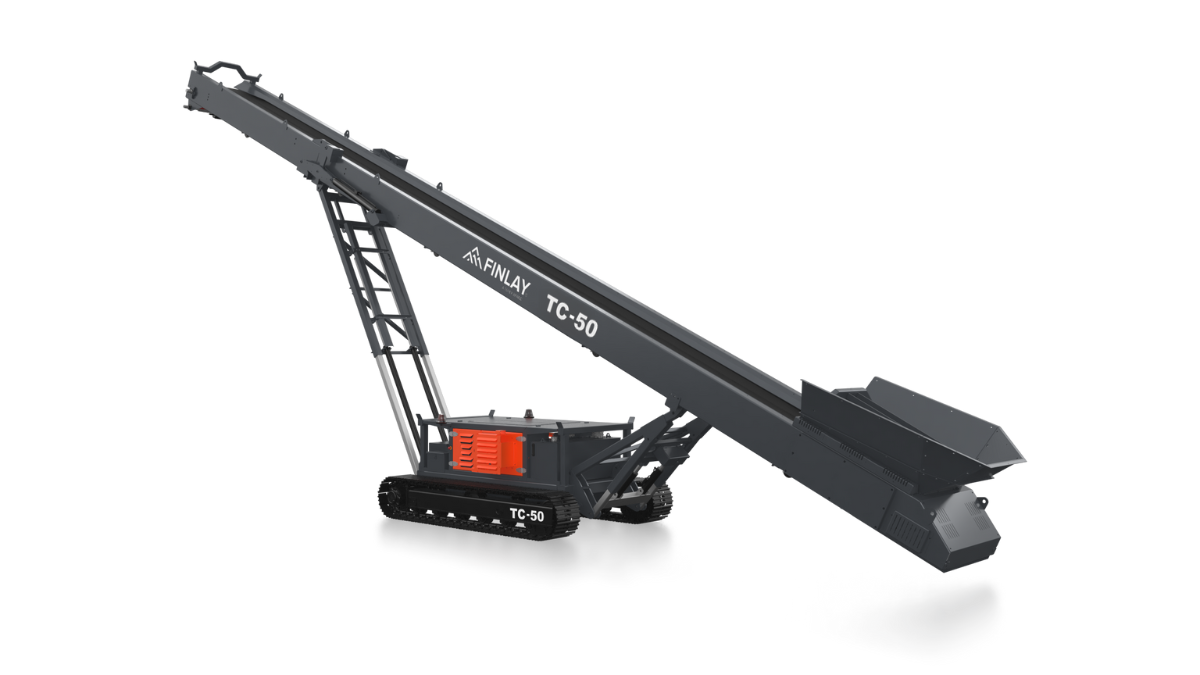

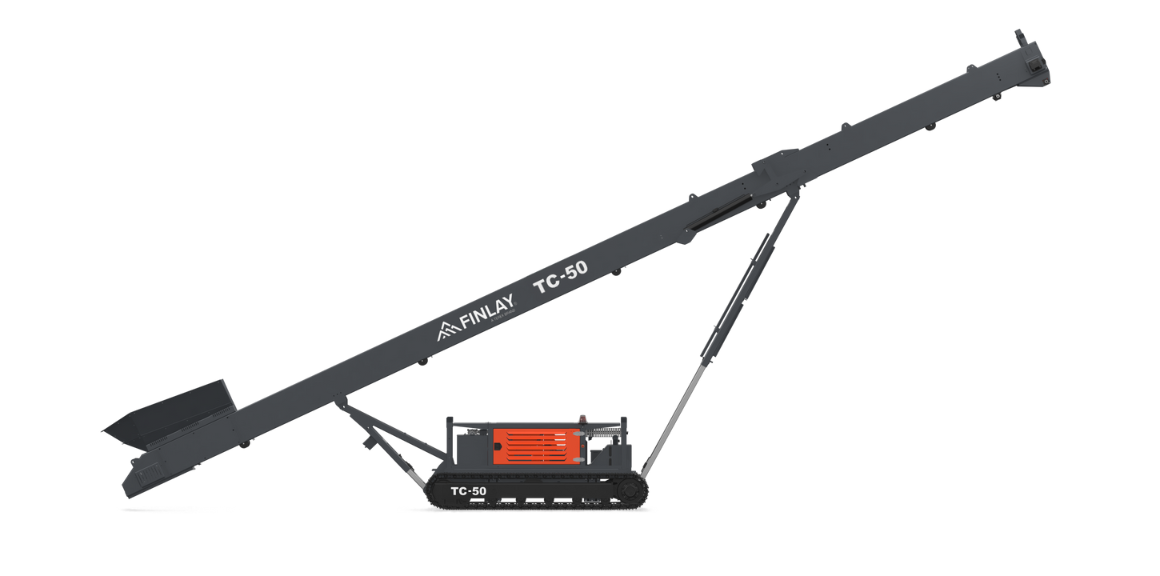

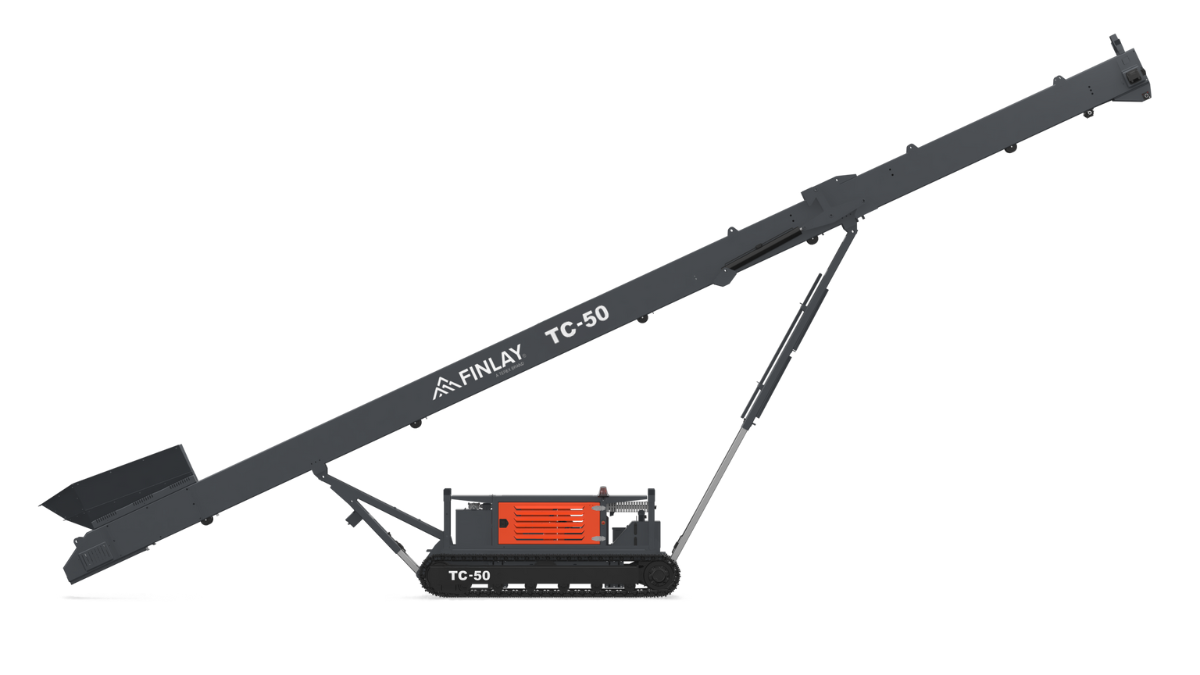

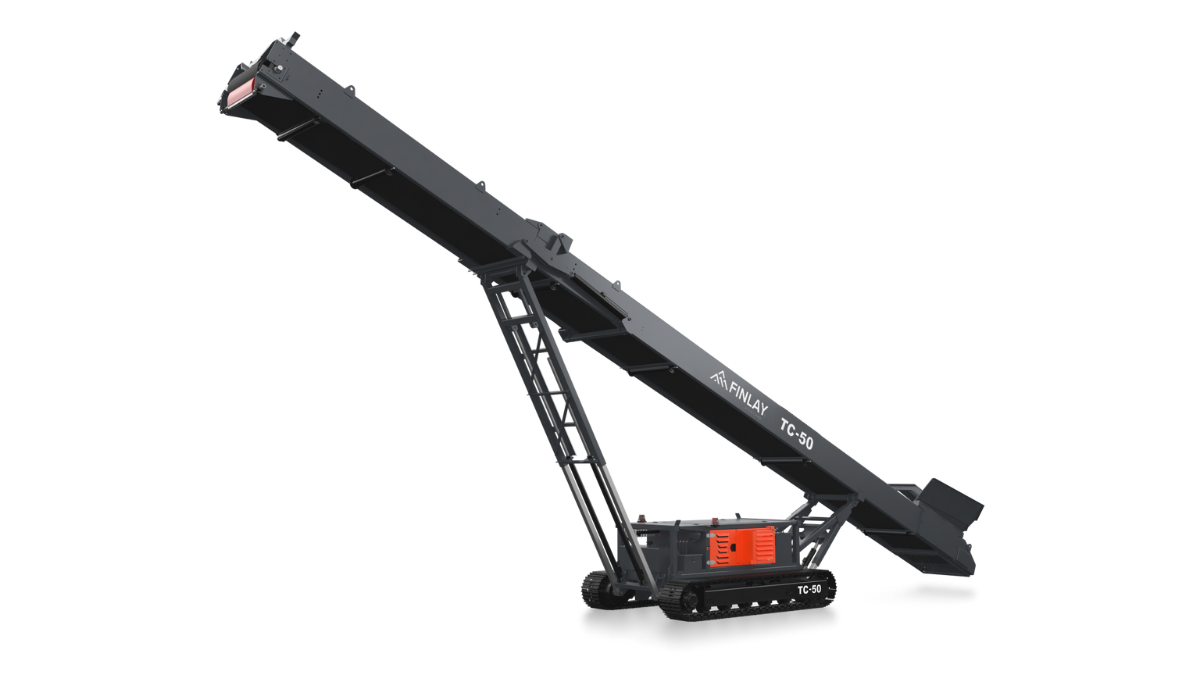

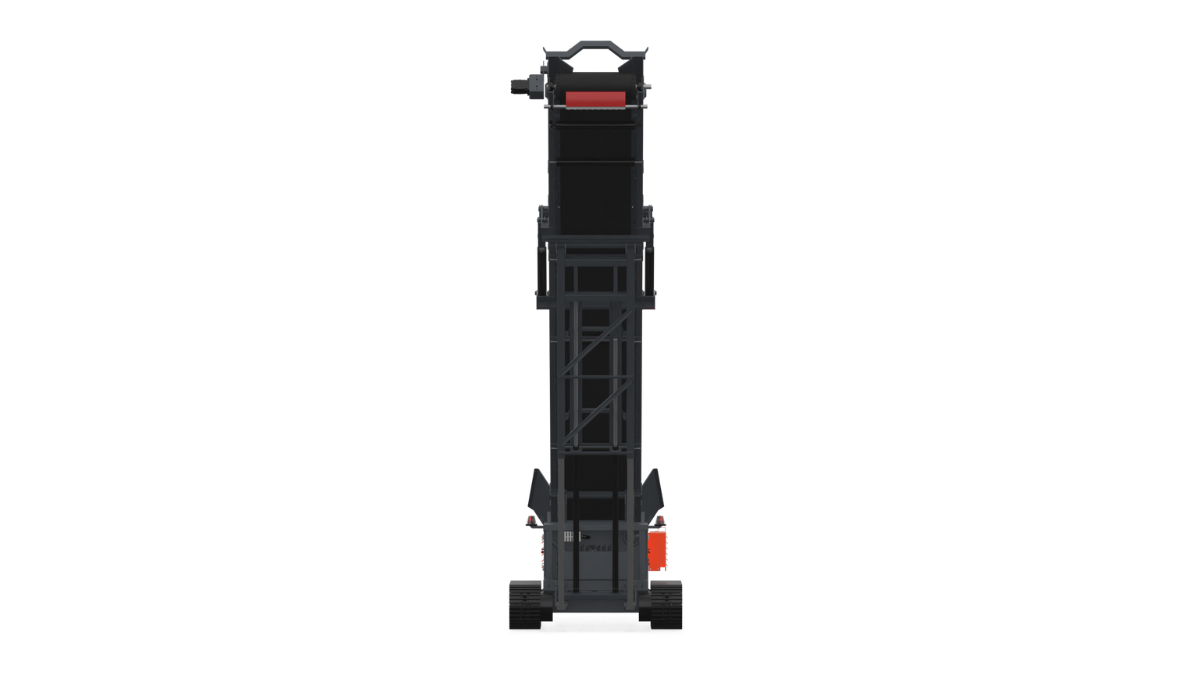

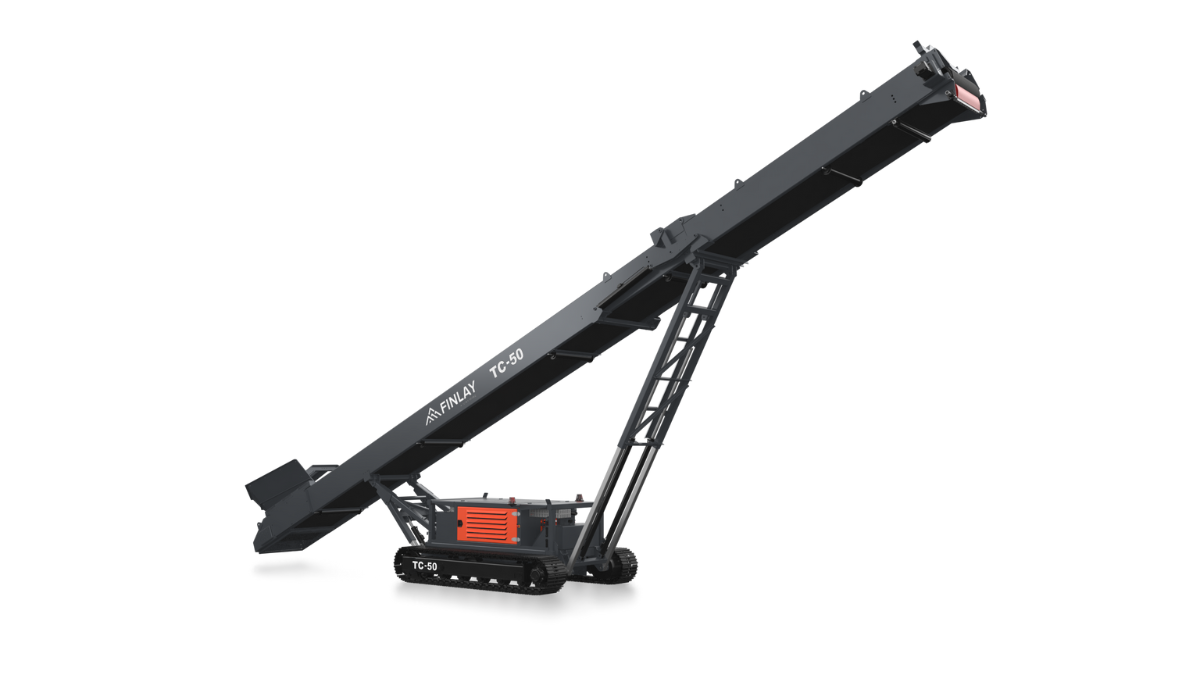

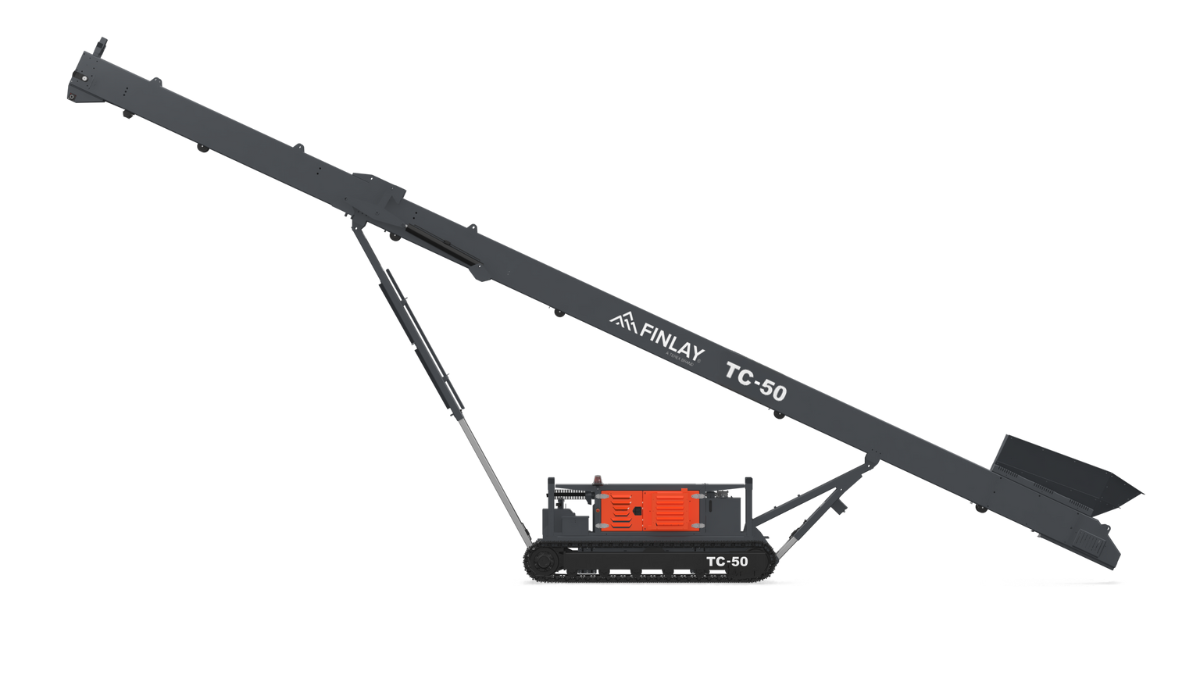

TC-50
Tracked Conveyor
The Finlay® TC-50 is a compact yet powerful tracked conveyor, engineered for efficient material handling and stockpiling. With a 50-foot conveyor length, low feed height, and robust build, it offers a high throughput of up to 500 TPH and is ideal for applications where space and flexibility are key.
Key Features:
- Stockpile capacity up to 613.8 m³ (802.8 yd³) with variable discharge height up to 6.93 m (22’ 9”)
- 900 mm (36”) wide conveyor belt with plain or optional chevron configuration
- Efficient CAT engine options with Stage V compliance (37kW)
- Hydraulic folding head section, full side skirting, and impact bars on tail section for durability
- Remote control tracking, galvanised legs, and compact transport dimensions for easy relocation
- Optional extras include dual power setup, feedboot liners, and heavy-duty belt upgrades
Downloads
Converyor
Power Options
Feedboot
Discharge height and stockpile capacity
Image Gallery
| Specification | Value |
|---|---|
| Conveyor Length | 50 ft / 15 m 24 cm |
| Belt Width | 36 Inches / 900 mm |
| Max Discharge Height | 22 ft 9 in / 6 m 93 cm |
| Transport Weight | 17600 lbs / 8000 kgs |
| Max Capacity | 802.8 Cu Yd / 613.8 m3 |
