High Level Feeder

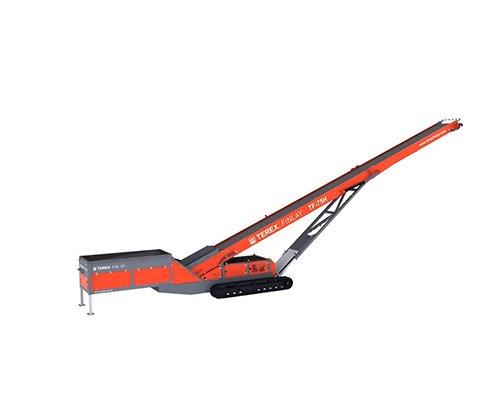

The Terex® Finlay TF-75H high level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types.
The large hopper/feeder has a capacity of 7m3 (9.15yd3) and can be fed directly from excavators, wheel loaders and auxiliary machines. For crushing and screening applications the machine can be used for a ‘metered or controlled’ feed of material. The machine can also be used to feed auxiliary equipment, connect to additional conveyors for transferring materials and to directly load / unload ships, trucks and rail wagons.
The machine is available with an orbital centre mounted slew bearing that enables 360° rotation and movement of the hopper/feeder to enhance on site mobility.
The pinless deployment of the main conveyor creates a safer working environment and enables rapid on site set up and tear down.
Hydraulic variable speed control of the feeder ensures efficient transfer from the hopper to the main discharge conveyor.
The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine
The machine features a 22.5m (73’ 10”) discharge conveyor that has the capacity to transfer up to 600tph (661tph) of material.
Maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US tonnes)
Terex Finlay TF-75H high level feeder animation
Terex Finlay J-1170 (direct drive) jaw crusher & TF-75H high level feeder
Terex Finlay TF-75H Feeder
|Conveyor Length||75' / 22.6m|
|Belt Width||48" / 1.2m|
|Max Discharge Height||32' 2" @ 24° / 9.8m @ 24°|
|Transport Dimensions||Width: 9' Length: 63' 11" Height: 10' 2" / Width: 2.75m Length: 19.5m Height: 3.12m|
|Output Potential||661 tph / 600 tph|
