TR-75
Radial Conveyor
The Finlay TR-75 Radial Stockpiling Conveyor is the ideal solution for stockpiling material after mobile crushing and screening plants to build a desegregated stockpile and ensure a consistent quality product.
It can also be integrated seamlessly into stationary plants. The mobility and flexibility of the TR-75 radial conveyors reduces / eliminates the use of a wheel loader on site and the inbuilt strength of the machine means it can be utilized in a wide range of applications from heavy duty primary jaw crushing to light duty screening applications.
With a maximum discharge height of 10.9m (34’ 9”) when operated in conical mode the machine will stockpile 3820 tonne of material. When configured to operate at 125° Kidney Bean mode the machine will stockpile 16064 tonne (17,707 US Tonnes) of material.
Key features:
- Inbuilt safety measures engineered into the machine include hydraulic feed height adjustment of the feedboot and pinless deployment of the main conveyor.
- For efficient onsite mobility the machine is fitted with crawler tracks and pendant control system as standard, optional radio remote control is also available to enable easy movement and transfer between locations.
- The machine features a 22.9m (75’ 2”) discharge conveyor that has the capacity to transfer up to 600tph (661 US tph) of material.

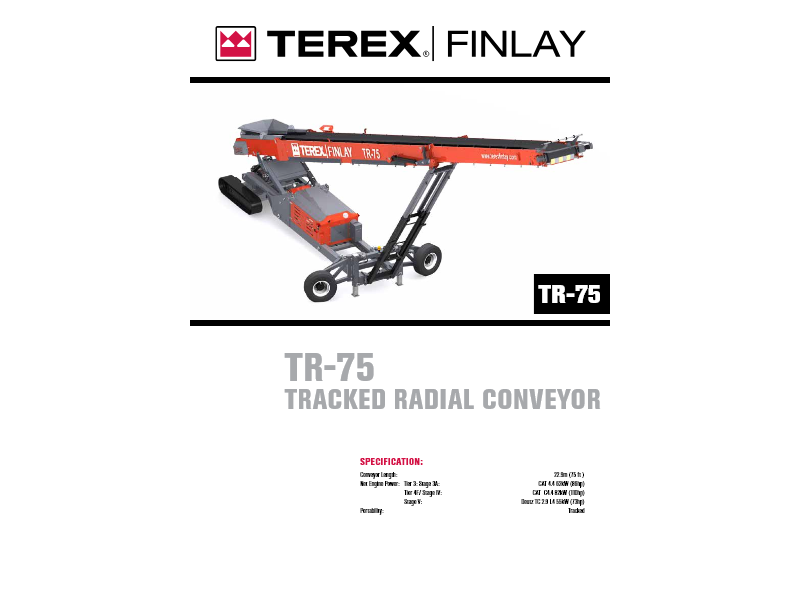

Downloads
Conveyor
Stockpile capacity:
Feedboot
Safety features:
Video Gallery
Terex Finlay I-120RS impactor & TR-75 radial conveyor
Terex Finlay TC-100 and TR-75 radial conveyor
.tmb-768v.jpg?Culture=en&sfvrsn=c09a60c0_1)

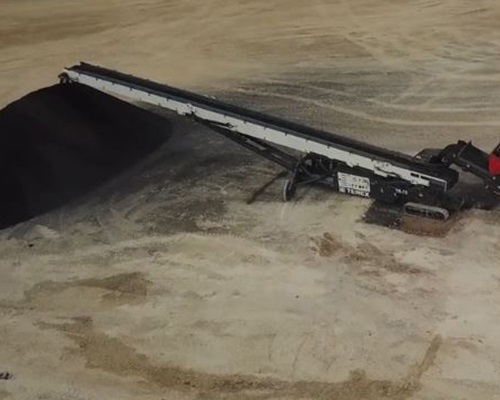

Terex Finlay TR-75 radial conveyor
| Specification | Value |
|---|---|
| Conveyor Length | 75' 2" / 22.9m |
| Belt Width | 42" / 1050mm |
| Max Discharge Height | 35' 9" @ 23° / 10.9m @ 23° |
| Transport Dimensions | Width: 7'5" Length: 51'3" Height: 9'9" / Width: 2.25m Length: 15.6m Height: 3m |
| Output Potential | 661tph / 600tph |
