TR-60
Rotating Stacker Conveyor

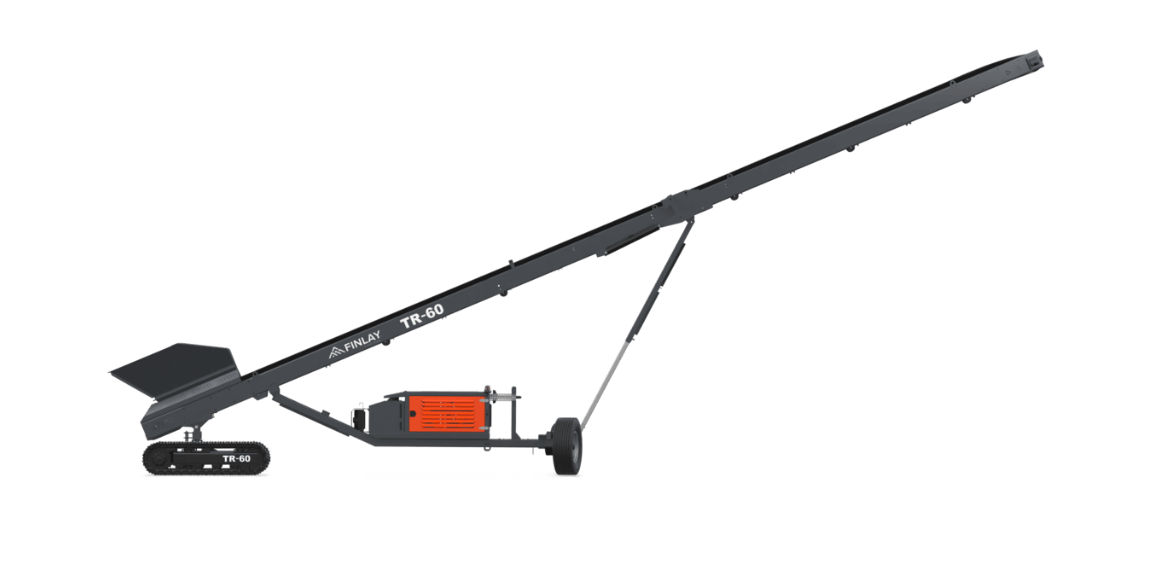

The Finlay® TR-60 is a robust and highly mobile rotating stacker conveyor designed to maximise stockpiling efficiency across a range of applications. With a 60-foot conveyor and variable discharge heights up to 8.44m (27’ 8”), it offers exceptional flexibility and high throughput performance of up to 500 TPH, depending on material.
Key Features:
- Maximum stockpiling capacity of up to 4574 m³ (5982 yd³)
- Variable operating angle from 10° to 24° for precise material placement
- 900mm (36”) wide conveyor belt with plain or optional chevron belt
- High-performance CAT Stage V engine (37kW) for fuel efficiency and reliability
- Track-mounted for easy mobility and site setup
- Optional features include dual power, radial functionality, and heavy-duty belt upgrades
Downloads

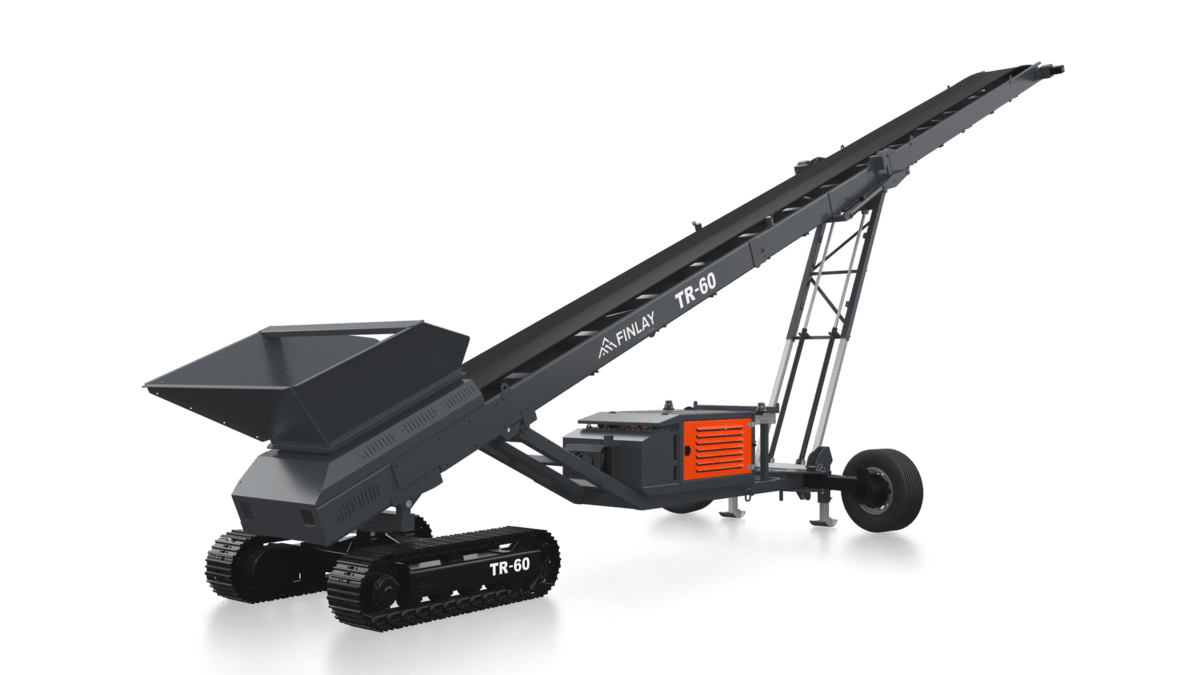

.png?sfvrsn=397bc233_1 "TR60_Finlay_07 (4)")
Feedboot
Converyor
Discharge height and stockpile capacity
Power Options

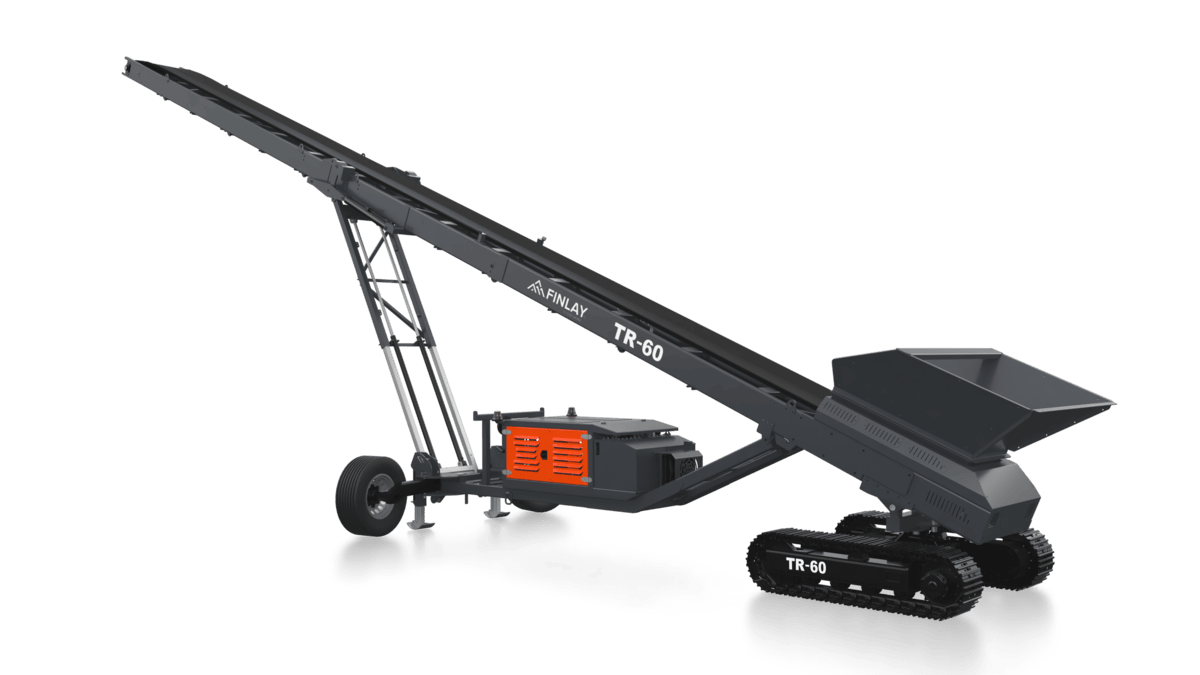

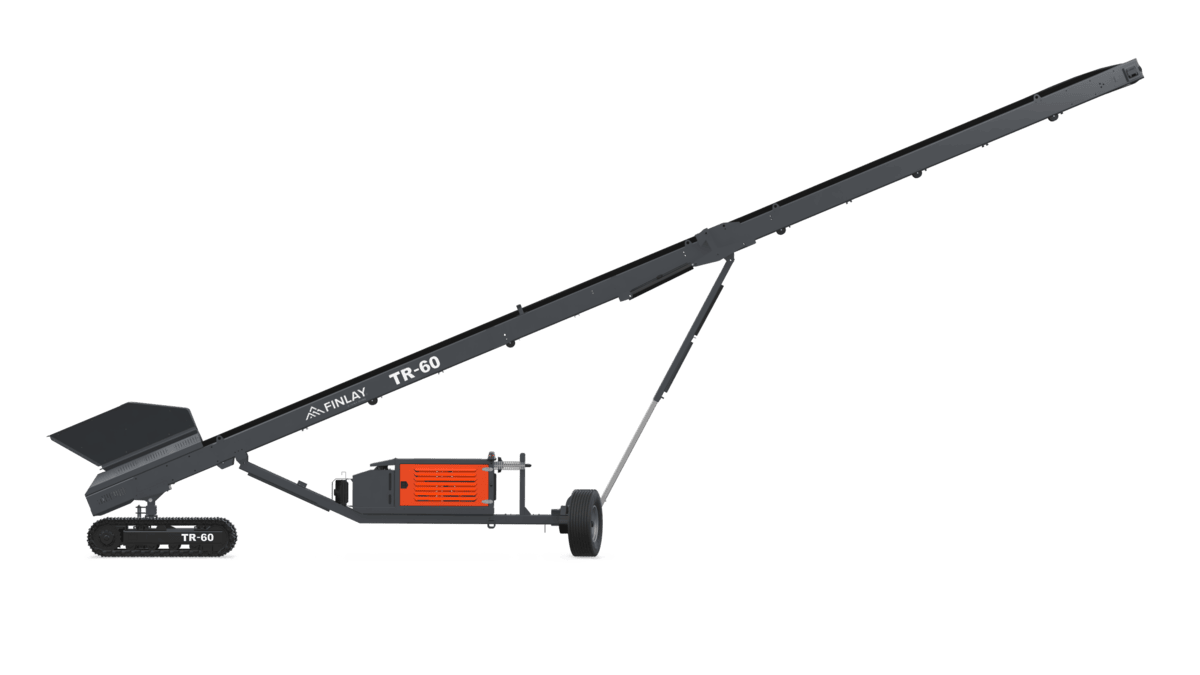

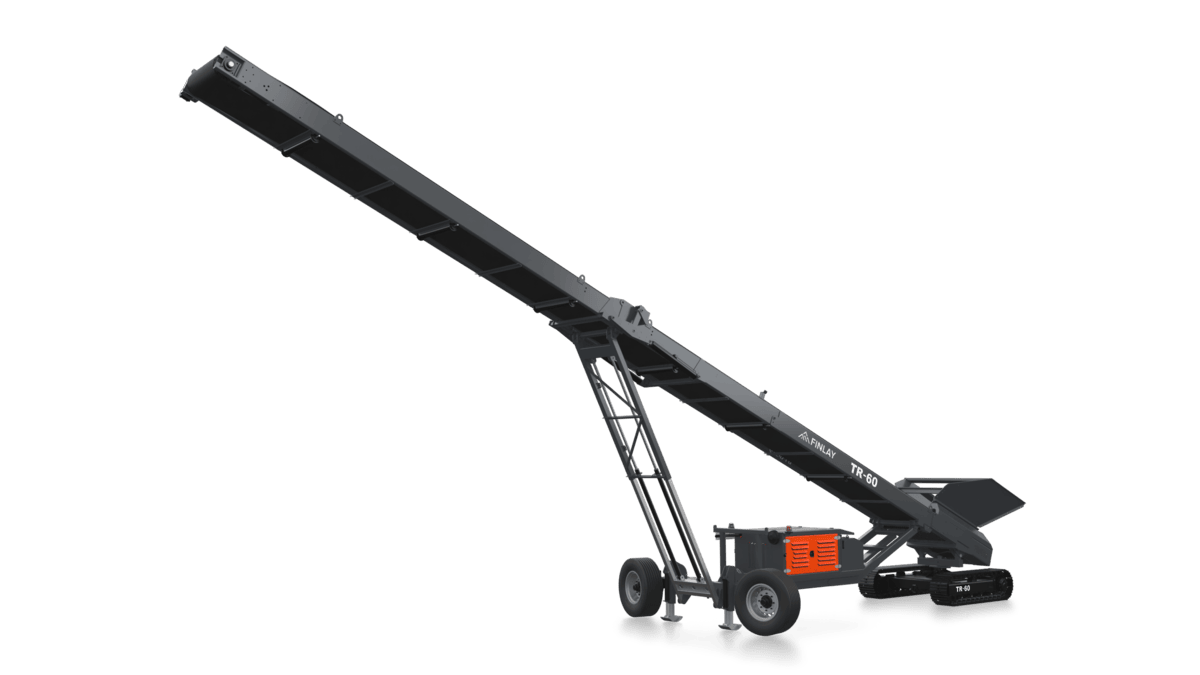

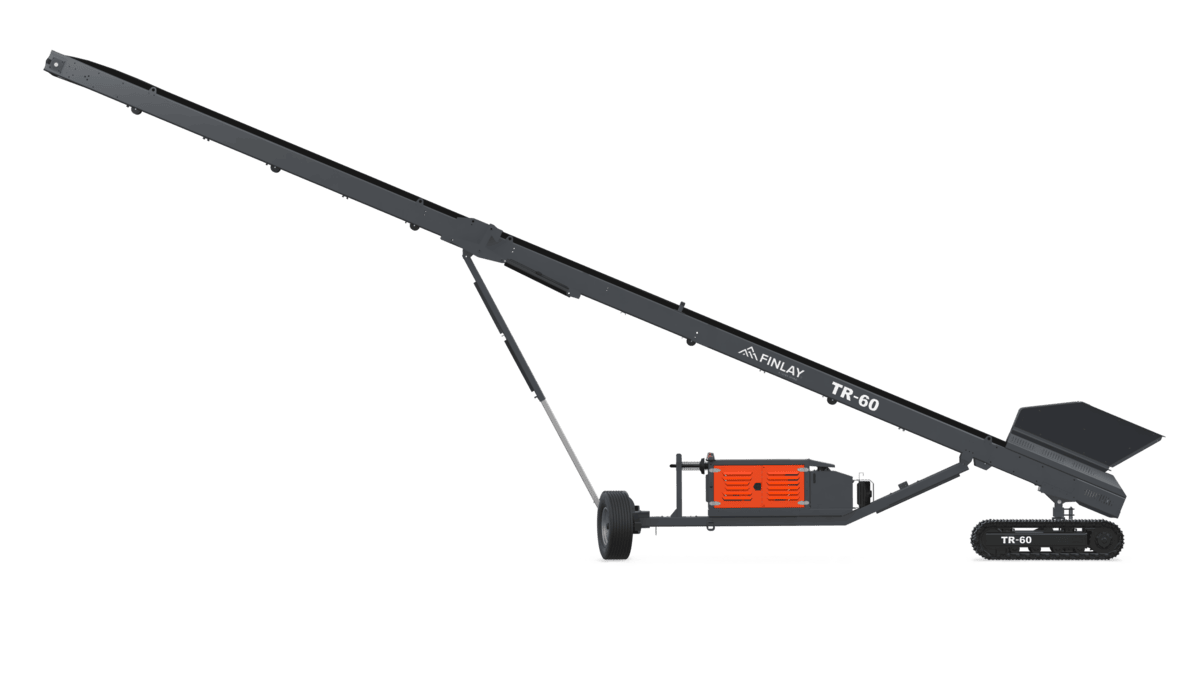

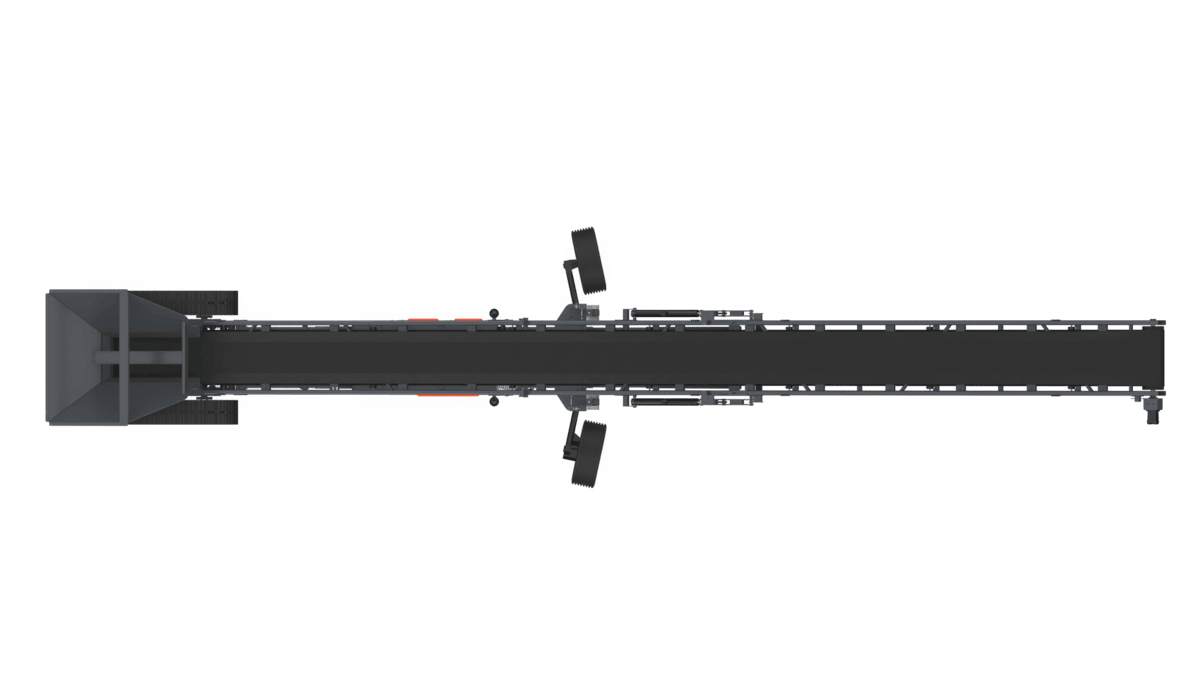

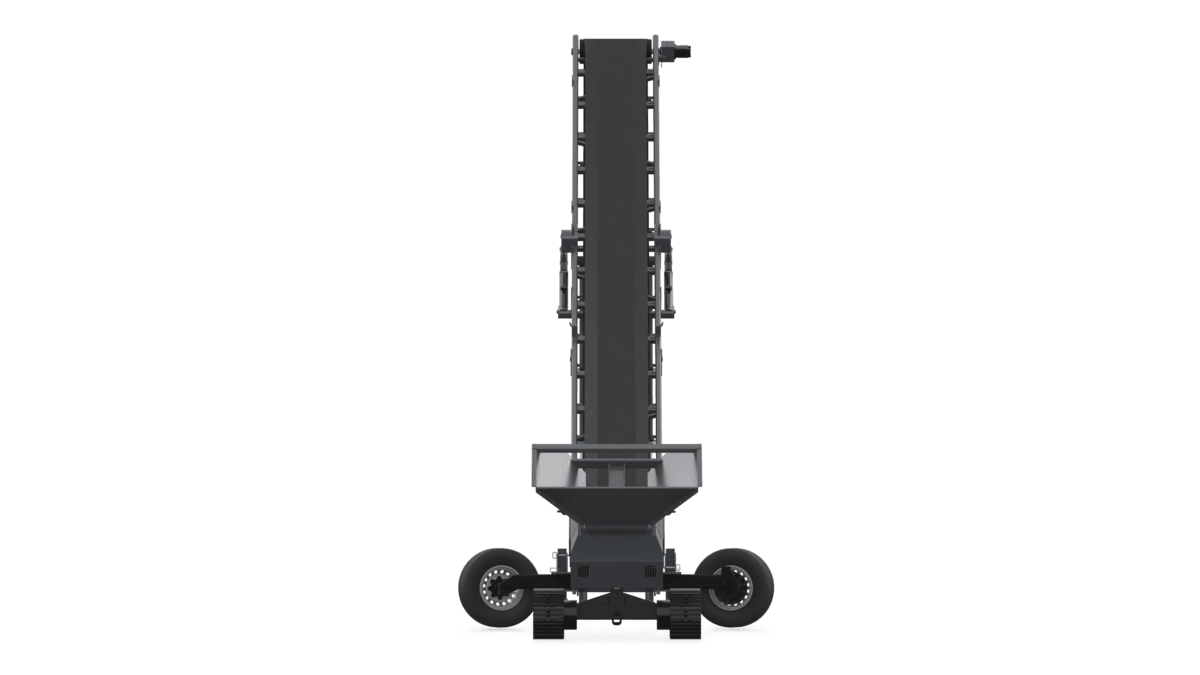

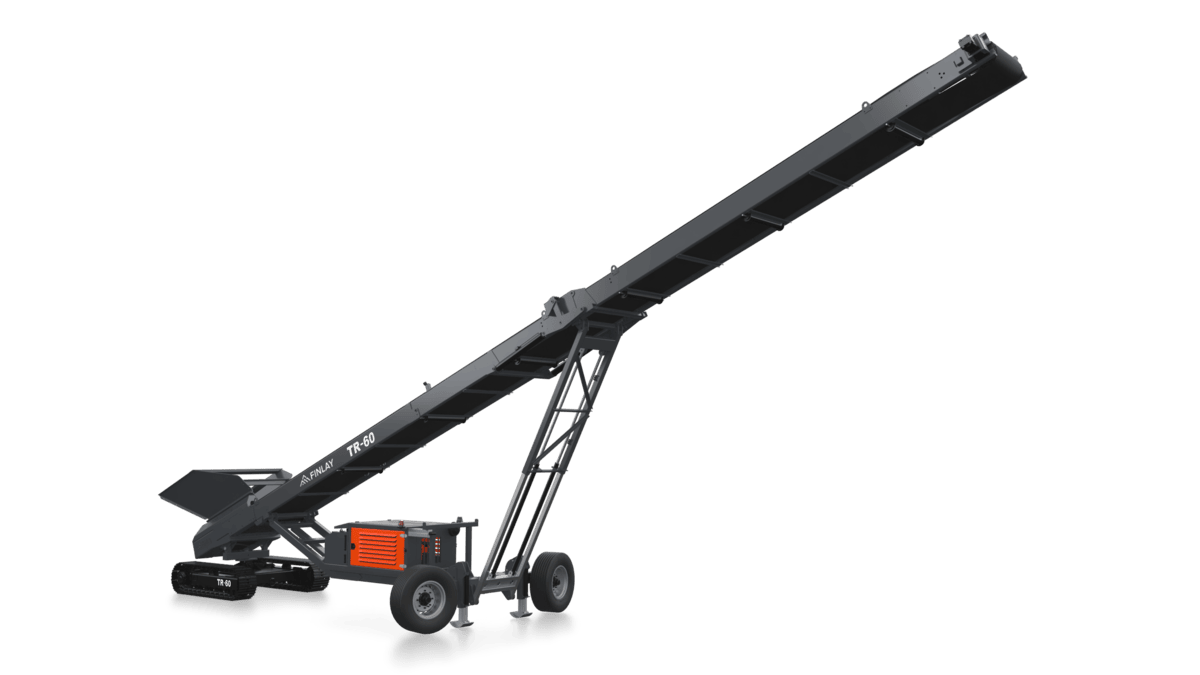

Image Gallery
| Specification | Value |
|---|---|
| Conveyor Length | 60 ft / 18 m 30 cm |
| Belt Width | 36 Inches / 900 mm |
| Max Discharge Height | 27 ft 8 in / 8 m 44 cm |
| Transport Weight | 19800 lbs / 9000 kgs |
| Max Capacity | 5982 Cu Yd / 4574 m3 |
