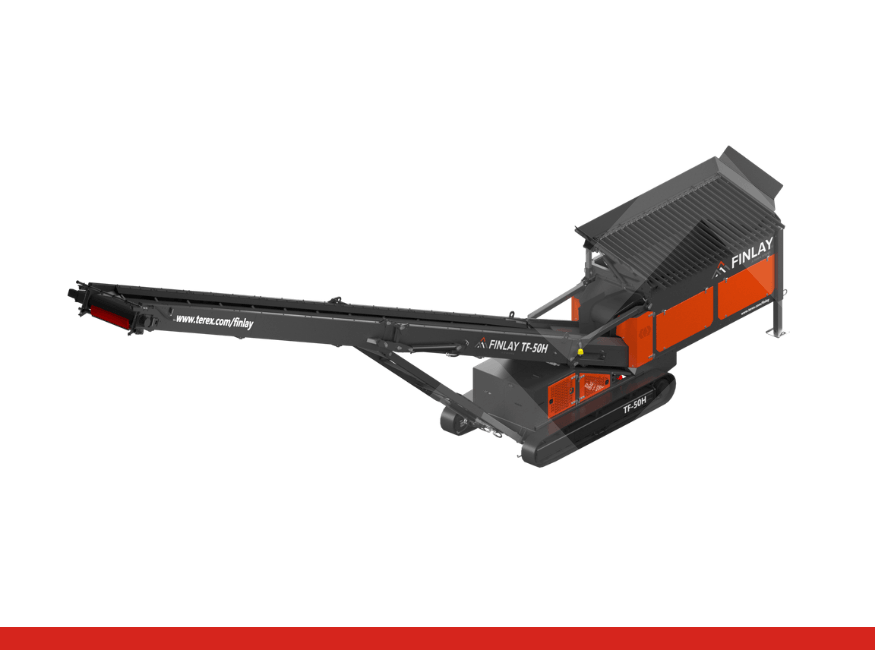

TF-50H
High Level Feeder
The Finlay® TF-50H high level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types.
The large hopper/feeder has a capacity of 4.2m3 (5.5yd3) and can be fed directly from excavators, wheel loaders and auxiliary machines. For crushing and screening applications the machine can be used for a ‘metered or controlled’ feed of material.
The machine can also be used to feed auxiliary equipment, connect to additional conveyors for transferring materials and to directly load / unload ships, trucks and rail wagons.
Key features:
- The pinless deployment of the main conveyor creates a safer working environment and enables rapid on site set up and tear down.
- Hydraulic variable speed control of the feeder ensures efficient transfer from the hopper to the main discharge conveyor.
- The machine features a 15.6m (51’ 2”) discharge conveyor that has the capacity to transfer up to 450tph (US 495tph) of material.
- Maximum stockpile capacity based on 37° angle of repose: 932 tonnes (1027 US tonnes).
DISCHARGE CONVEYOR
FEED CONVEYOR
UNDERCARRIAGE
POWERUNIT
Image Gallery
.jpg?sfvrsn=c1ab8a42_31)
.jpg?sfvrsn=bfbbe44d_31)
.jpg?sfvrsn=b74317ad_29)
.jpg?sfvrsn=61442efa_31)
.jpg?sfvrsn=48b01aa2_31)
.jpg?sfvrsn=9c7d888b_31)
.jpg?sfvrsn=a1cc9291_31)
| Specification | Value |
|---|---|
| Belt Width | 42” / 1.05m |
| Max Discharge Height | 23’ 8’’ / 7.2m |
| Transport Dimensions | Width: 7’ 6” Length: 39’ 11” Height: 8’ 4”’ / Width: 2.29m Length: 12.16m Height: 2.55m |
| Output Potential | 495tph / 450tph |
