863

Scalper

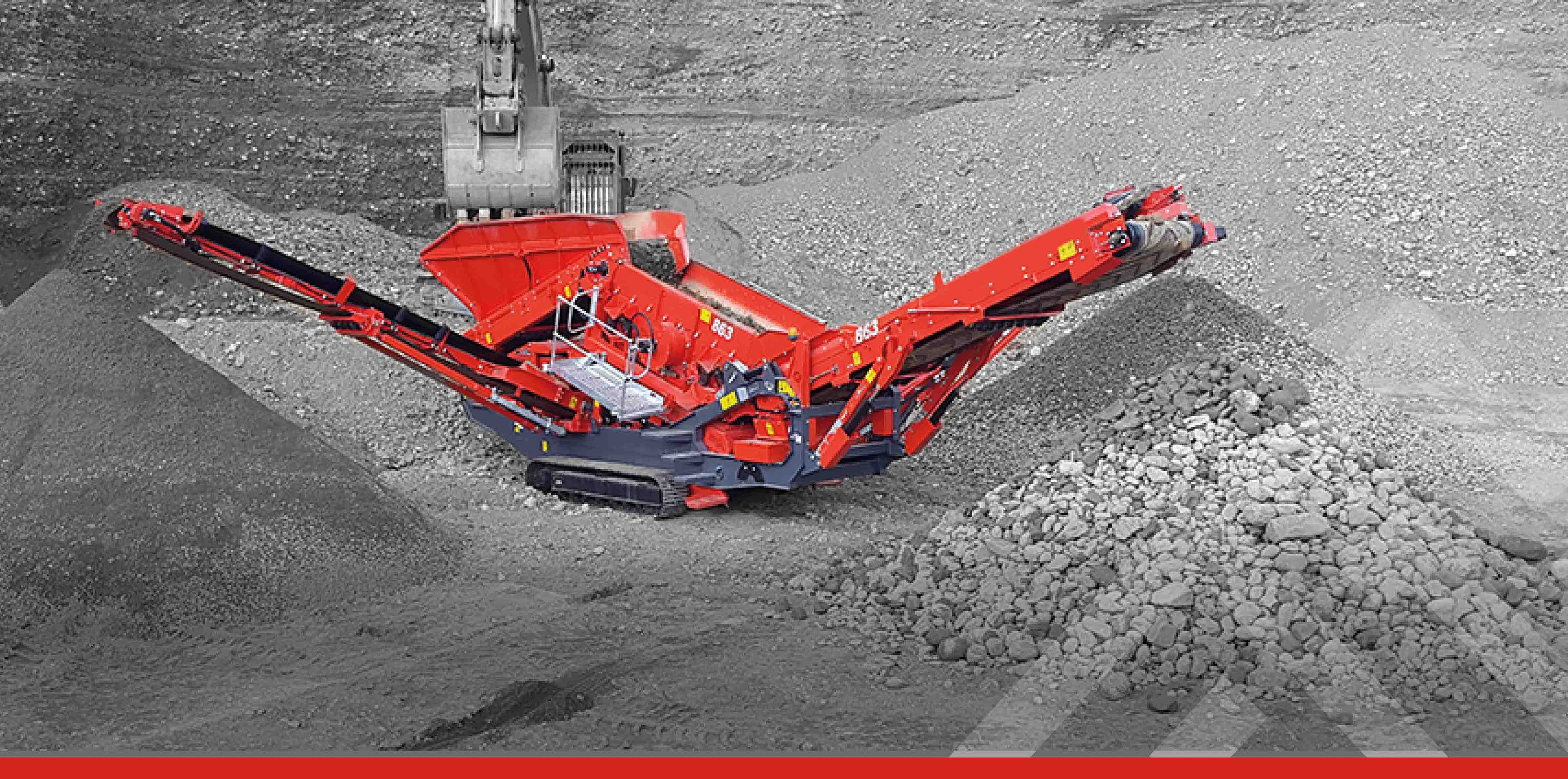

The Terex® Finlay 863 mobile screening plant is a compact and aggressive forward facing screen. This flexible and mobile plant can work in aggregates, sand and gravel, top soil, construction demolition and recycling applications where site space is at a premium.

The fully self-contained plant can be hydraulically folded and ready for transport in less than an hour making it the ideal machine for contract screening.

The plant has the capacity to process at a rate of up to 280 tonnes per hour and can be fed either by a tracked mobile crusher or an excavator.

Key Features:

  • Aggressive screen box can accept bofor bars, screenharps, woven mesh, punch plate and cascade fingers.
  • Screen box angle can be hydraulically adjusted to an angle between 14º to 18º.
  • Screen box discharge end can be hydraulically raised 500mm to facilitate efficient and easy media access and changing.
  • Oversize conveyor angle can be hydraulically adjusted from 15º to 24º
Hopper / feeder
Screenbox
MIDGRADE CONVEYOR
Oversize plus conveyor
Undercarriage
Fines conveyor
T-Link Telematics

Video Gallery

Please enable marketing cookies for this feature

Specification Value
Net Engine Power Tier 3 - Deutz 66.2hp | Tier 4i/ Stage IIIB - Cat 74hp / Tier 3 - Deutz 49.4kW | Tier 4i/ Stage IIIB - Cat 66.2kW
Screen 9'' x 4'' / 2.76m x 1.22m
Weight 40,350lbs / 18,300kg
Transport Dimensions Height 10' 2'' | Width 8' 4'' | Length 31' 6'' / Height 3.1m | Width 2.55m | Length 9.6m
Working Dimensions Height 12' 8'' | Width 46' 93' | Length 39' 8'' / Height 3.85m | Width 14.1m | Length 12.1m

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.


T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and  screeners* from 1st January 2017 (*machines fitted with electronic engine).

Image Gallery

View Terex Finlay 863 scalping heavy duty screener (3) Image Terex Finlay 863 scalping heavy duty screener (3)
View Terex Finlay 863 scalping heavy duty screener (4) Image Terex Finlay 863 scalping heavy duty screener (4)
View Terex Finlay 863 scalping heavy duty screener (2) Image Terex Finlay 863 scalping heavy duty screener (2)
View Terex Finlay 863 scalping heavy duty screener (1) Image Terex Finlay 863 scalping heavy duty screener (1)
