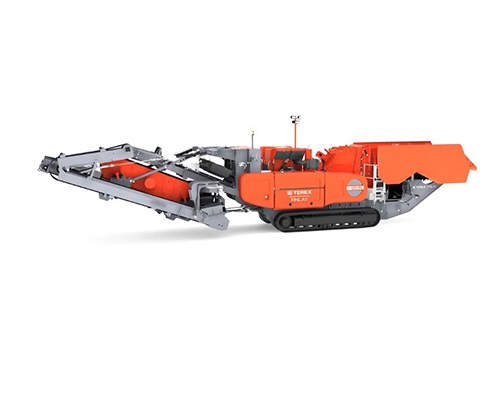

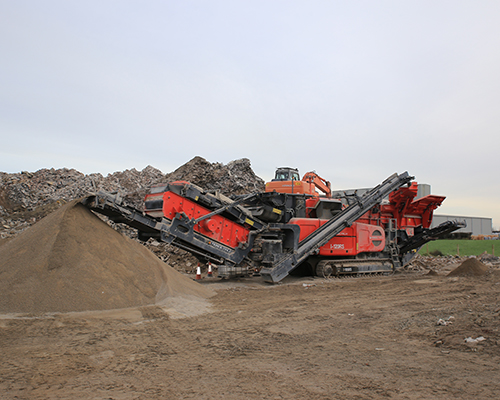

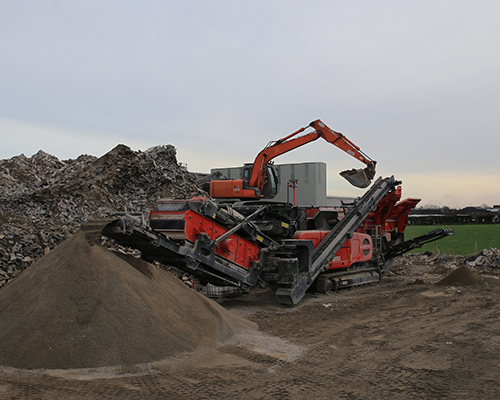

The Terex® Finlay I-120RS shapes the future through innovation. This new generation Horizontal Shaft Impact Crusher with redefined style and advanced technological design gives improved material flow and production capabilities in quarrying, mining, demolition and recycling applications.
Incorporating the Terex® CR038 impact chamber with direct drive and advanced electronic control system the machine provides operators with high material reduction ratios and produces a consistent product shape.
A key component of the machine is the on-board innovative quick detach 3.66m x 1.53m (12’ x 5’) two deck screen. For applications not requiring re-circulation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine.
The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contract crushing operators.
The ease of material flow through the machine has greatly improved with each component of the machine increasing in width as the material moves through the machine.
Fully hydraulic apron setting assist provides convenient and efficient adjustment of the aprons
Heavy duty vibrating feeder (VGF) with integrated prescreen removes dirt fines and sizes bypass material for reprocessing.
Quick on-board detachable recirculating system including large 3.66m x 1.53m (12’ x 5’) two deck screen.
Recirculating conveyor can be rotated from closed loop configuration or utilized for stockpiling making an additional oversized product.

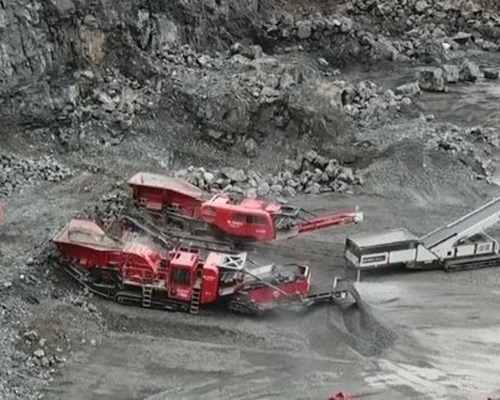

Terex Finlay I-120RS Impact Crusher working in Quarry Application
Terex Finlay I-120RS and TF-75L low level feeder

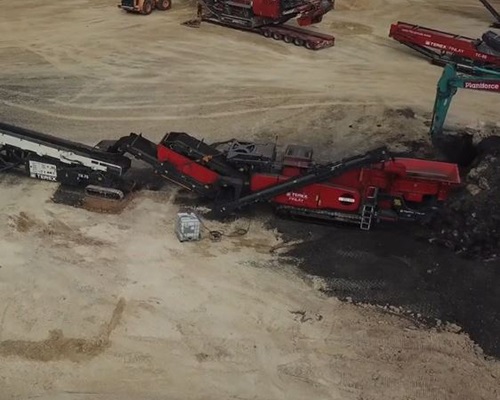

Terex Finlay I-120RS impactor & TR-75 radial conveyor

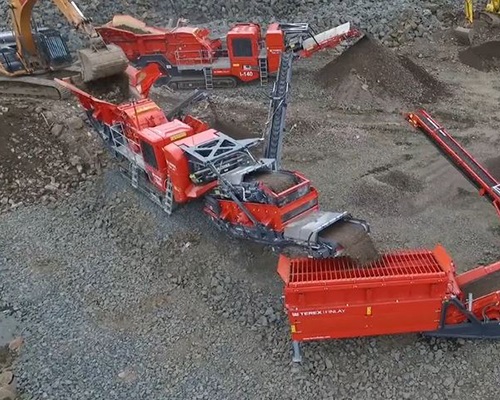

Terex Finlay I-120RS impact crusher, TC-100 conveyor and 694+ inclined screen

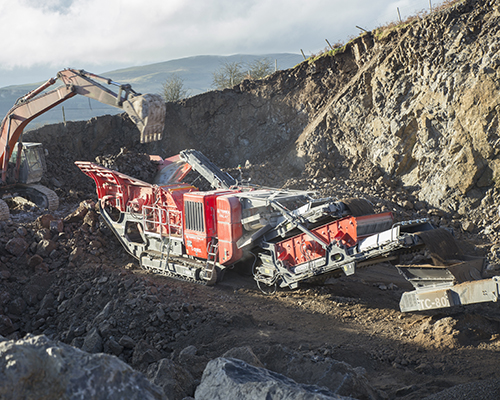

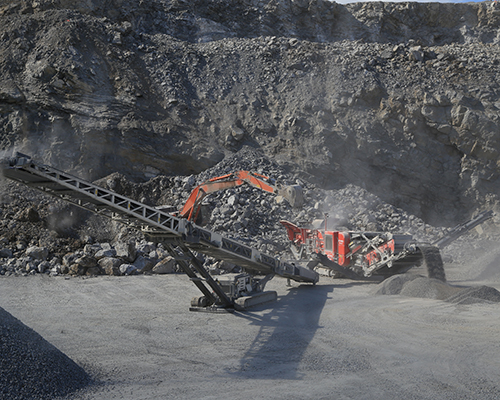

Terex Finlay TC-80 Conveyor working with I-120RS impact crusher (quarry)

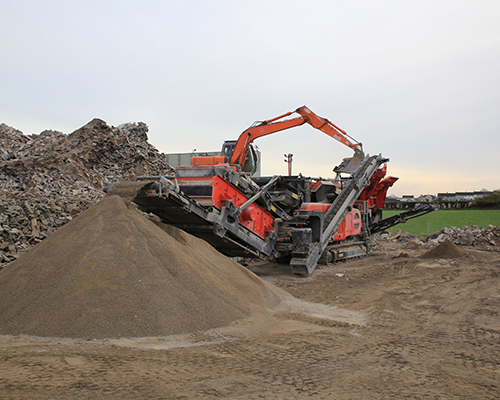

Terex Finlay I-120RS Impact Crusher (Concrete Recycling)
Terex Finlay TC-100 Conveyor
Terex Finlay I-120RS and TC-100 conveyor
Terex Finlay I-120RS impact crusher (Set up / tear down sequence)
Terex Finlay I-120RS impact crusher (Recycling C&D Waste)

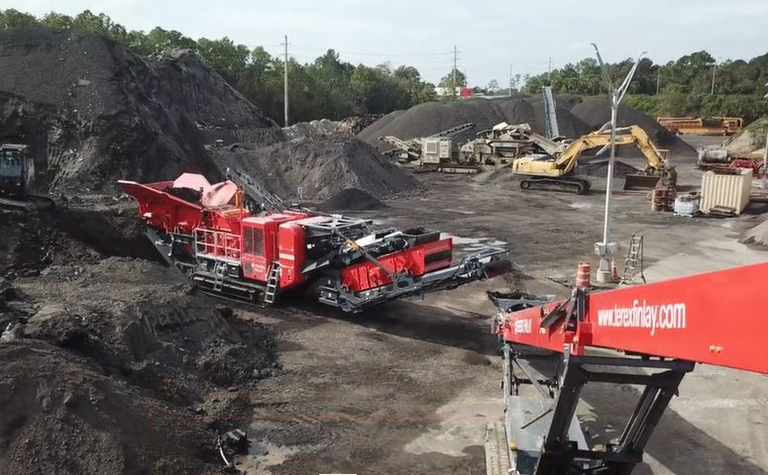

Terex Finlay I-120RS Impact Crusher (Recycling Asphalt)
Terex Finlay I-120RS impact crusher (Asphalt Recyling)
|Net Engine Power||Tier 3 - CAT 375hp | Tier 4F / Stage IV - Scania 400hp / Tier 3 - CAT 280kW | Tier 4F / Stage IV - Scania 294kW|
|Rotor Size||Ø41” x 44” / Ø1033mm x 1100mm|
|Operating Weight||106,153lbs / 48,150kg|
|Transport Dimensions||Height 15' 6'' | Width 19' 1'' | Length 59' / Height 3.4m | Width 3.1m | Length 18m|
|Working Dimensions||Height 15' 6'' | Width 19' 1'' | Length 58' 6'' / Height 4.7m | Width 5.8m | Length 17.8m|
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
