I-140
The Finlay® I-140 tracked impact crusher has an advanced technological design that gives improved material flow through the machine to produce precisely shaped cubical end products in quarrying, mining, demolit...
I-140RS
Impact Crusher
The Finlay® I-140RS is an Impact Crushing Machine. This new generation impact crusher with redefined style and advanced technological design gives improved material flow and production capabilities in quarrying, mining, demolition and recycling applications. Incorporating the Finlay® CR032 impact chamber with direct drive and advanced electronic control system the machine provides operators with high material reduction ratios and produces a consistent product shape.
A key component of the machine is the on-board innovative quick detach 4.8m x 1.5m (16’ x 5’) single deck screen. For applications not requiring recirculation of materials for further processing or stockpiling the complete screening and recirculating system can be quickly detached from the machine. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contract crushing operators.
Key Features:
The ease of material flow through the machine has greatly improved with each component increasing in width as the material moves through the machine.
Fully hydraulic assisted apron setting features makes adjustment of the aprons convenient and efficient.
Heavy duty vibrating grizzly feeder (VGF) with integral pre-screen removes dirt fines and sizes bypass material for reprocessing.
Quick on-board detachable recirculating system including large 4.8m x 1.5m (16’ x 5’) single deck screen.
Recirculating conveyor can be rotated from closed loop configuration or utilized for stockpiling making an additional oversized product.
Downloads
Hopper / Feeder
Detachable screenbox
Fines conveyor
Main conveyor
Impact chamber
BYPASS CONVEYOR
Re-circulating conveyor
T-Link Telematics
Video Gallery

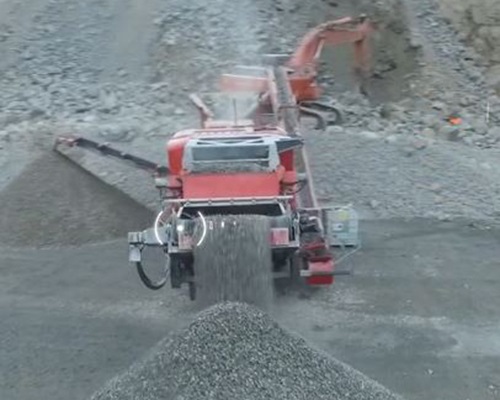

Terex Finlay I-140RS Impact Crusher (Quarry)
607490b07bd14abab75c6fef2467b83c.tmb-768v.jpg?Culture=en&sfvrsn=1e0a0ae7_2)
Terex Finlay I-140RS Impact Crusher (Quarry application stockpile mode)
Image Gallery
| Specification | Value |
|---|---|
| Net Engine Power | Tier 3 - Cat 540hp | Tier 4F / Stage IV - Scania 500hp / Tier 3 - Cat 403kW | Tier 4F / Stage IV - Scania 364kW |
| Rotor Size | Ø50” x 48” / Ø1270mm x 1220mm |
| Operating Weight | 159,394lbs / 72,300kg |
| Transport Dimensions | Height 12' 5'' | Width 11' 5'' | Length 71' 2'' / Height 3.8m | Width 3.47m | Length 21.7m |
| Working Dimensions | Height 19' 2'' | Width 26' 9'' | Length 70' 7'' / Height 5.86m | Width 8.17m | Length 21.5m |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
Related Products
-
![i140-tracked-impactor-recycling-concrete-quarry]()
-
![i120-tracked-impactor-crushing-recycled-asphalt]()
I-120
The Finlay® I-120 is a mid-sized track-mounted mobile impact crusher, commonly used for processing medium to hard natural aggregates and recycling materials such as asphalt, concrete and bricks. For operators i...
-
![Finlay-500x4000-product-images I-120RS]()
I-120RS
The Finlay® I-120RS provides the flexibility of a portable impact crushing and screening plant on one platform. The on-board innovative quick detach 3.66m x 1.53m (12’ x 5’) two deck screen ensures a quality cu...
-
![IC-110 right]()
IC-110
The Finlay® IC-110 tracked compact impact crusher has been designed to provide high productivity in quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The imp...
-
![ic-100-compact-recycling-impactor-for-asphalt-and-concrete]()
IC-100
The Finlay® IC-100 compact impactor has been specifically designed for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The IC-100 provides operators with a...
-
![]()

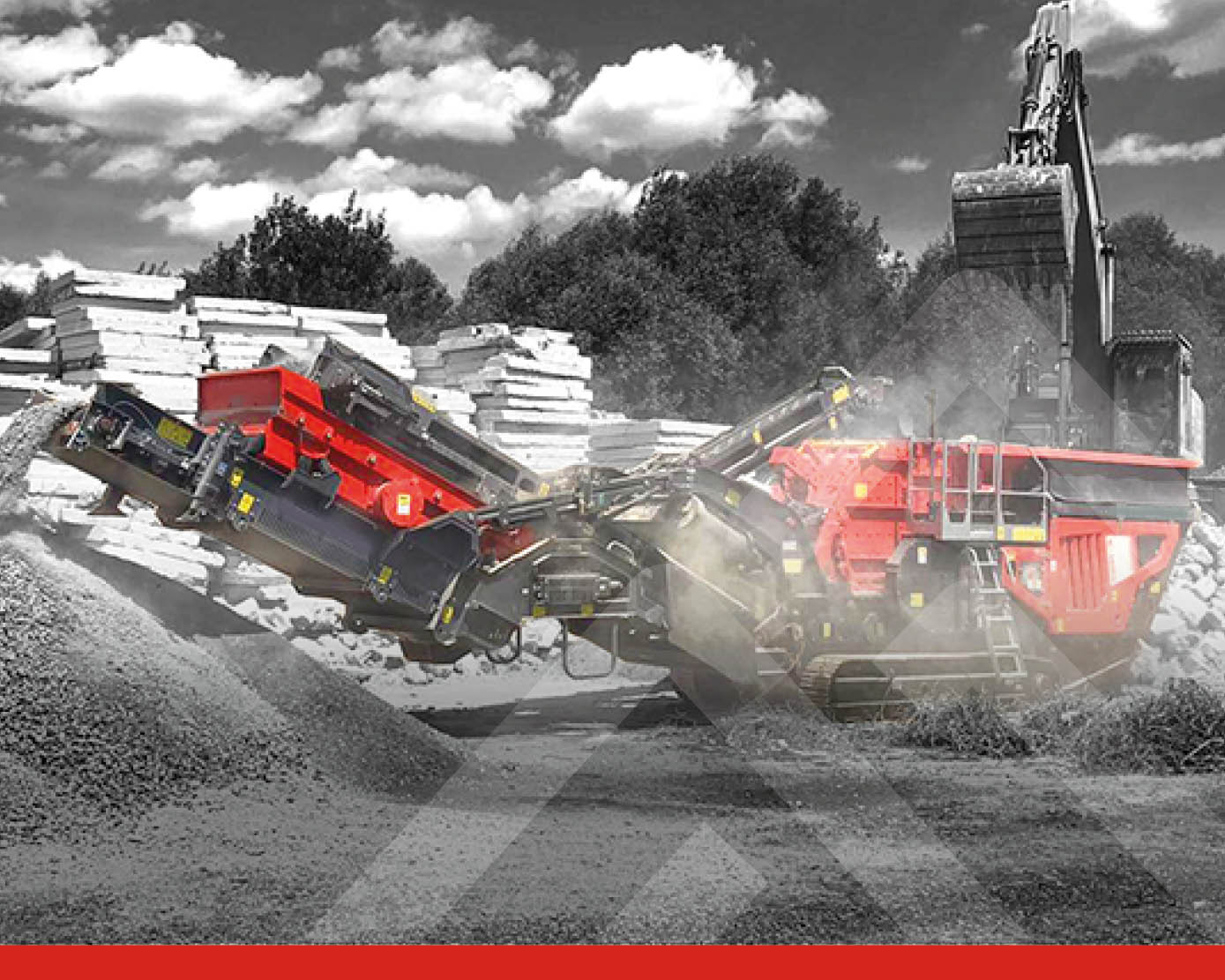

IC-110RS
The Finlay® IC-110RS mobile impact crusher provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and as...
-
![ic-100rs-portable-impactor-crushing-rock]()

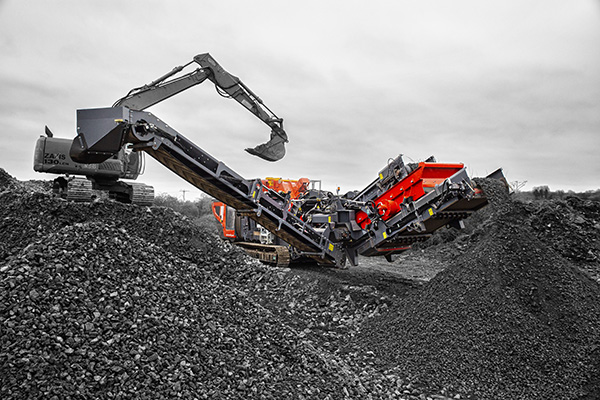

IC-100RS
