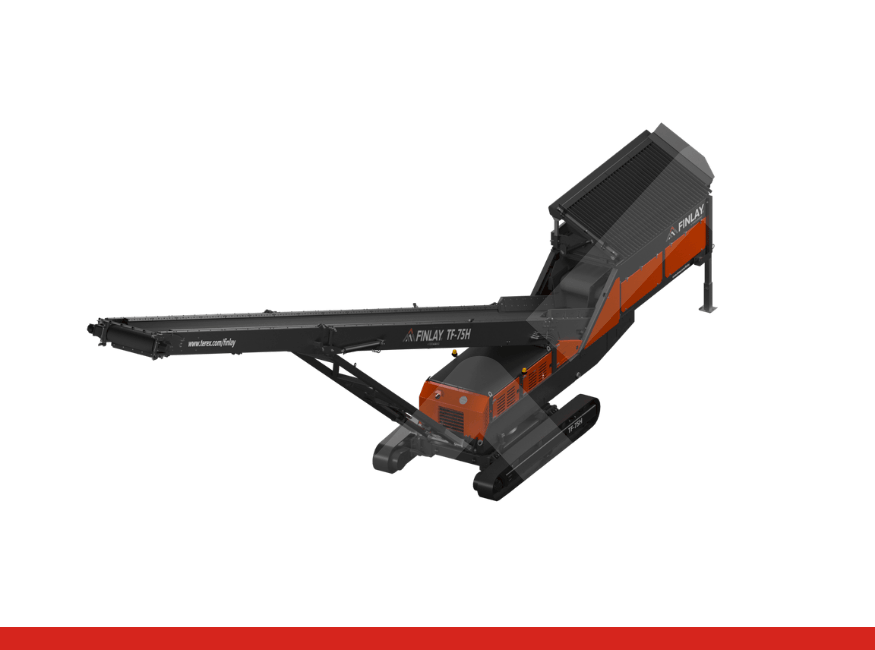

TF-75H Orbital
High Level Feeder
The Finlay® TF-75H high level orbital feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types. For enhanced onsite mobility and flexibility the machine is fitted with an orbital centre mounted slew bearing that enables 360° rotation and movement of the hopper/feeder.
The large hopper/feeder has a capacity of 7m3 (9.2yd3) and can be fed directly from excavators, wheel loaders and auxiliary machines. For crushing and screening applications the machine can be used for a ‘metered or controlled’ feed of material.
The machine can also be used to feed auxiliary equipment, connect to additional conveyors for transferring materials and to directly load / unload ships, trucks and rail wagons.
Key features:
- 360 degree movement for accurate product placement and operations requiring the machine to move parallel to the direction of material flow.
- The pinless deployment of the main conveyor creates a safer working environment and enables rapid on site set up and tear down.
- Hydraulic variable speed control of the feeder ensures efficient transfer from the hopper to the main discharge conveyor.
- The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine
- The machine features a 22.5m (73’ 10”) discharge conveyor that has the capacity to transfer up to 600tph (US 661tph) of material.
| Specification | Value |
|---|---|
| Conveyor Length | 73' 10" / 22.5m |
| Belt Width | 48" / 1.2m |
| Max Discharge Height | 34' 6" / 10.7m @ 24° |
| Transport Dimensions | Width: 10'6" Length: 63' Height: 11'11" / Width: 3.2m Length: 19.5m Height: 3.63m |
| Output Potential | 661 tph / 600 tph |
