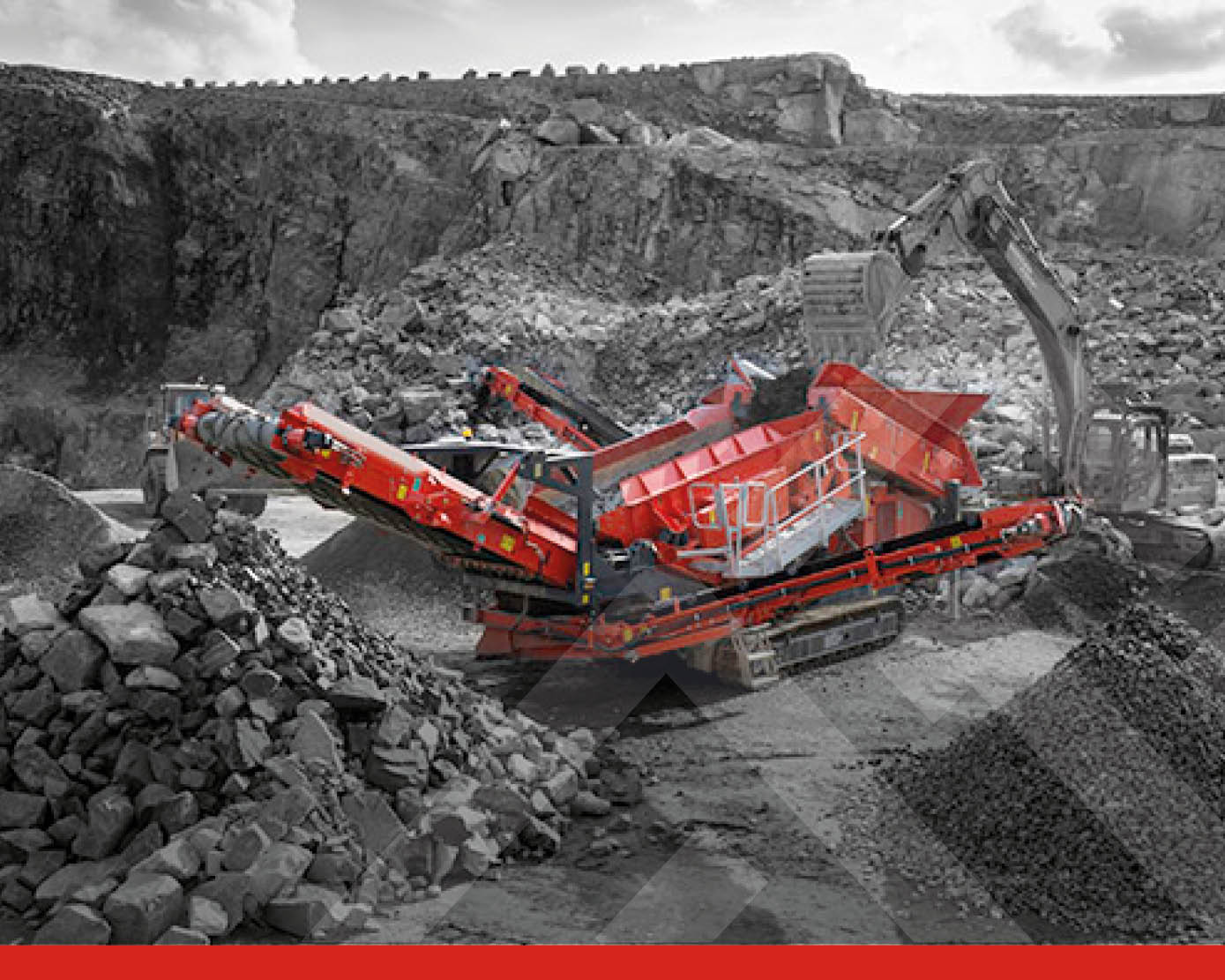

883+ Triple Shaft Scalper

883 Triple Shaft Screening Rock

The Finlay® 883+ triple shaft mobile scalping screener is ideal for working in dry and sticky applications including quarry, mining, sand, gravel, construction and demolition debris and recycling applications. The heart of this new model is the new triple shaft screenbox, featuring two “true” full size 4.8 x 1.53m (16’ x 5’) screening decks.

The triple-shaft design of this new screenbox employs an oval motion stroke to  generate an aggressive screening action, reducing plugging and blinding over the screen decks to ultimately provide a quality product with high tonnage output.

The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine.

Dotted Line

Request A Quote

Receive Product Updates

Machine Walkaround

Hopper / feeder
Midgrade conveyor
Fines conveyor
Oversize conveyor
T-Link Telematics
Dotted Line

Features & Benefits

  • Higher G-force and larger stroke of the triple shaft screenbox provides the optimal solution for high productivity in dry and sticky applications.

  • Multiple media configurations including bofor bars, finger screens, woven mesh and punch plates are available for a wide range of applications, from fine screening to heavy scalping.

  • All media configurations are compatible with both the standard and triple shaft screenboxes.

  • The banana profile of the bottom deck maximizes the screening of fine materials.

Dotted Line

Set Up & Tear Down Animation
