Colt 1000

Scalping Screen

The highly adaptable Colt 1000 Scalping screen is able to operate in both heavy duty scalping and precision screening applications and will manage the most difficult of materials.

The Colt 1000 achieves a compact footprint maintaining the ethos of the EvoQuip range while achieving versatility and mobility. Flexibility is enhanced with configurable conveyor options and two way split conversion.

Featuring an aggressive double deck screen, variable screening angle with numerous screen media options, broad fines conveyor, quick set up time and tall discharge heights ensures the Colt 1000 distinguishes itself amongst its competition.
Colt 1000 Screening Machine Working in UK
Longer Arrow Spacer

Discover some of the Colt 1000 features

Want more information on the Colt 1000?

Why choose

the Colt 1000...

Versatile Icon

Configure Layout and Ability to Convert to 2 Way Split

Speedo Icon

Variable Speed on Feeder, Fines,

Midgrade and Oversize

TPH Icon

Up to 360 Tonnes Per Hour

(396 US Tonnes Per Hour)

Screen Throw

Variable Screen Throw

Screen Angle Icon

Variable Screen Angle

High Energy Icon

High Energy Aggressive Screen

Longer Arrow Spacer

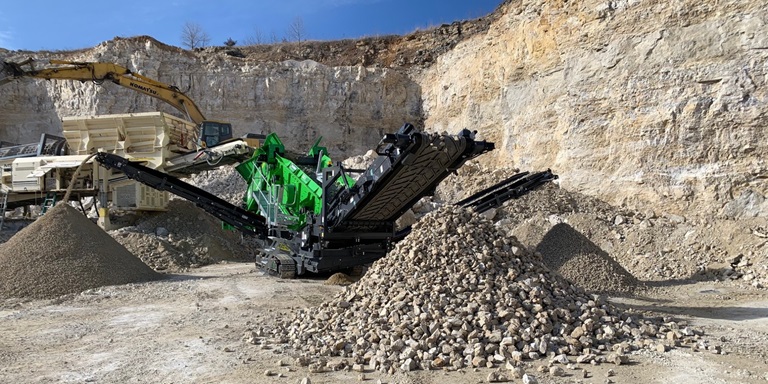

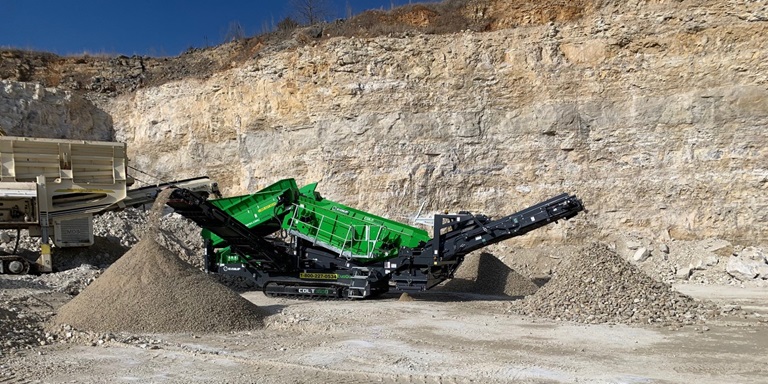

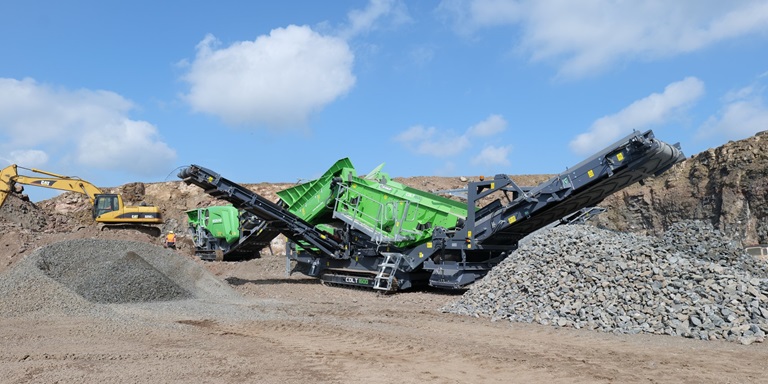

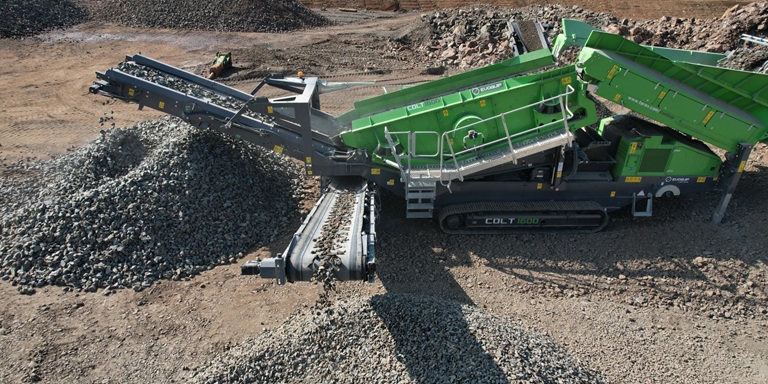

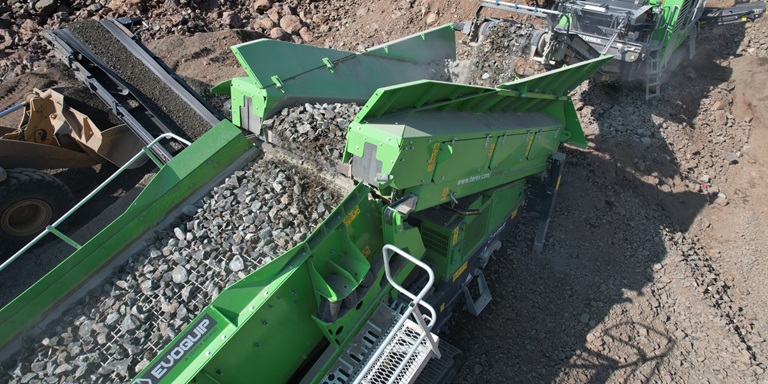

Colt 1600

The high capacity, versatile heavy duty Colt 1600 Screener Machine is designed to work in primary and secondary screening applications. With the single, triple shaft and Spaleck screen box options the applications are endless  The Colt 1600 is available with dual power technology giving flexibility to be powered by an external power supply or the standard on-board engine.

Flexibility is enhanced with configurable conveyor options and two way split conversion.
Tall discharge heights can be improved further with optional telescopic conveyors and the wide array of screen media available makes this the perfect multi-purpose machine.

Get a Quote
Sign Up
Order Parts

Technical Documentation

Measurements

Transport Width 9 ft 11 in 3 m
Transport Length 49 ft 10 in 14 m 95 cm
Double Deck Screen 16' x 5' 4.8 m x 1.53 m
Output Potential 600 US tph 600 tph
Transport Height 11 ft 20 in 3 m 36 cm

Downloads

Others

.pdf Evoquip Overview brochure 2022_1393a6ec-28e2-4a15-8aaf-a2e39f899d96
Evoquip Overview brochure 2022

Related products

Scalping Screen Product Render Side View

Colt 1000

Transport Length 35 ft 11 in
Transport Width 8 ft 20 in
Transport Height 10 ft 40 in
Double Deck Screen 13'6'' x 4'
Output Potential 396 US tph
Colt 800 Screener Product Render Side View

Colt 800

Transport Length 30 ft 30 in
Transport Width 8 ft 20 in
Transport Height 10 ft 10 in
Double Deck Screen 9' x 4'
Output Potential 308 US tph
Colt 600 Side View

Colt 600

Transport Length 36 ft
Transport Width 7 ft 50 in
Transport Height 8 ft 40 in
Double Deck Screen 8' x 4'
Output Potential 308 US tph
