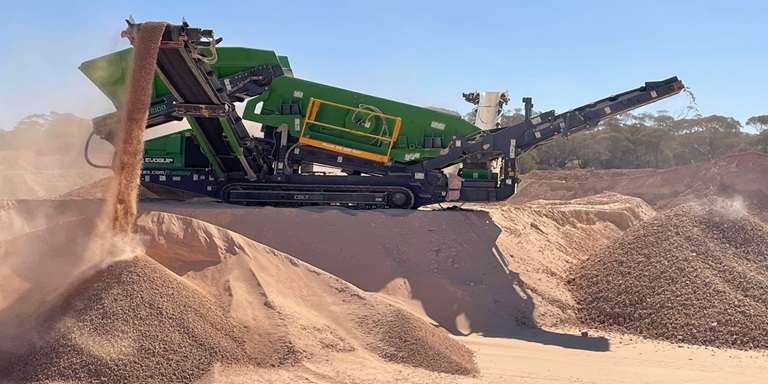

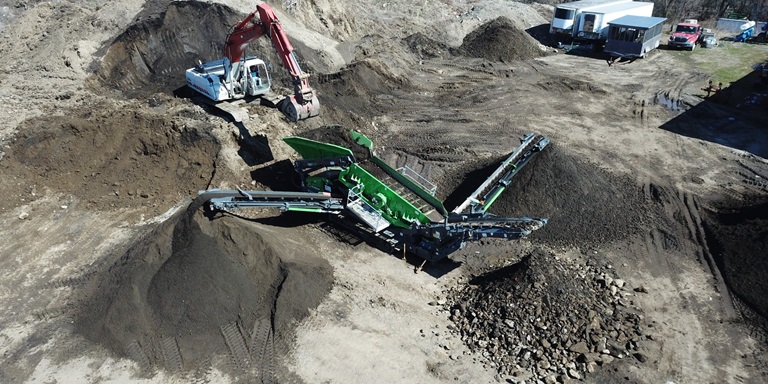

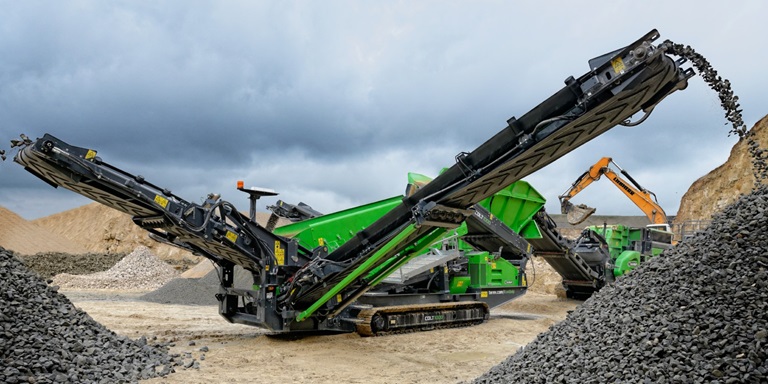

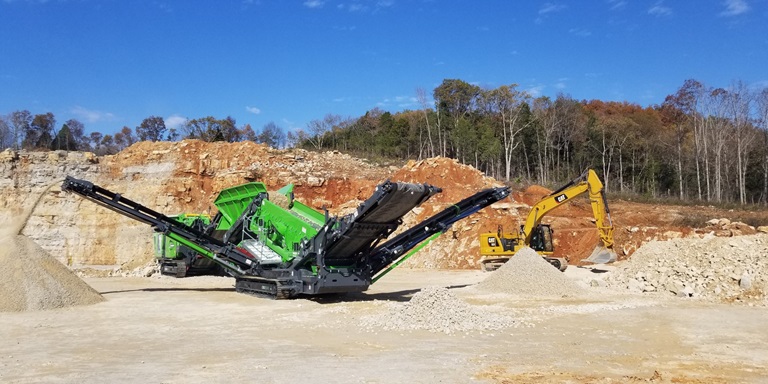

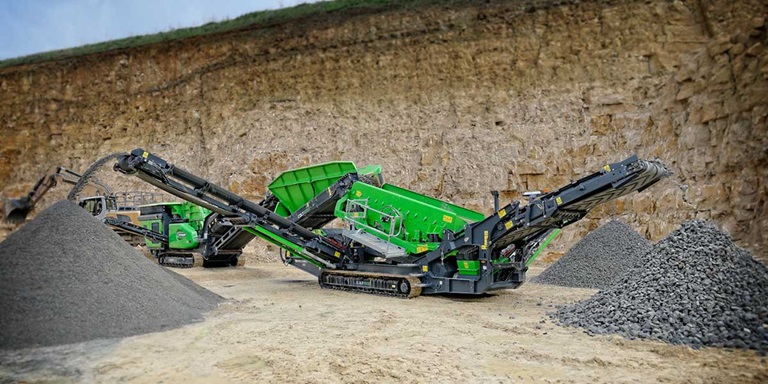

Colt 1000
The highly adaptable Colt 1000 Scalping screen is able to operate in both heavy duty scalping and precision screening applications and will manage the most difficult of materials. The Colt 1000 achieves a compact footprint maintaining the ethos of the EvoQuip range while achieving versatility and mobility. Flexibility is enhanced with configurable conveyor options and two way split conversion. Featuring an aggressive double deck screen, variable screening angle with numerous screen media options, broad fines conveyor, quick set up time and tall discharge heights ensures the Colt 1000 distinguishes itself amongst its competition.

HOPPER / FEEDER
- 5m3 (6.5yd3) Hopper capacity
- 1100mm (44”) wide
- Variable speed
SCREEN
- 4.1m (13’6”) x 1.22m (4’) Double deck screen
- Variable screen angle
- Wide range of screen media
- Top Deck - Bofor Deck, Fingers, Punch Plate, 3D Punch Plate & Mesh
- Bottom Deck – Mesh & Fingers
POWERUNIT
- Tier 4 Final/ Stage lllB: CAT C3.4 engine (55kW / 74hp @ 2300rpm)
- Tier 3: Cat C4.4 62Kw
- Stage V: Cat C2.2 55Kw
CONVEYORS
- 1000mm (40”) Wide collection conveyor with SCS scraper
- 800mm (31”) Wide fines conveyor with 3.9m (12’8”) discharge
- 650mm (26”) Wide midgrade conveyor with 3.7m (12’2”) discharge
- 1050mm (41”) Wide oversize conveyor with 3.2m (10’4”) discharge
- Configurable layout and ability to convert to 2 way split
- Variable speed on fines, midgrade and oversize as standard
COLT 1000 SCALPING SCREEN - HIGHLY ADAPTABLE
Technical Documentation
Measurements
Transport Height
10 ft 40 in
Transport Width
8 ft 20 in
Output Potential
396 tph
Transport Length
35 ft 11 in
