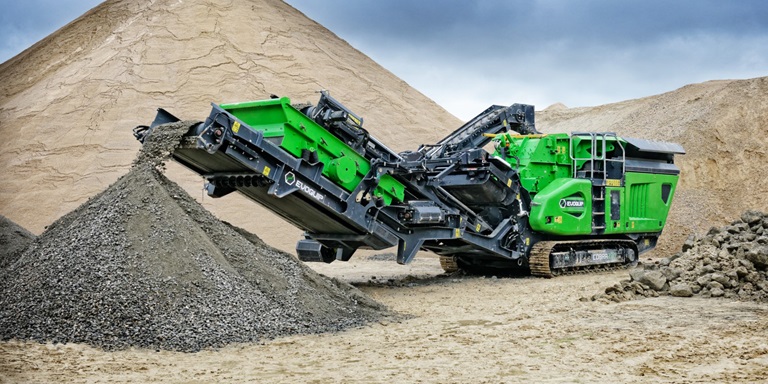

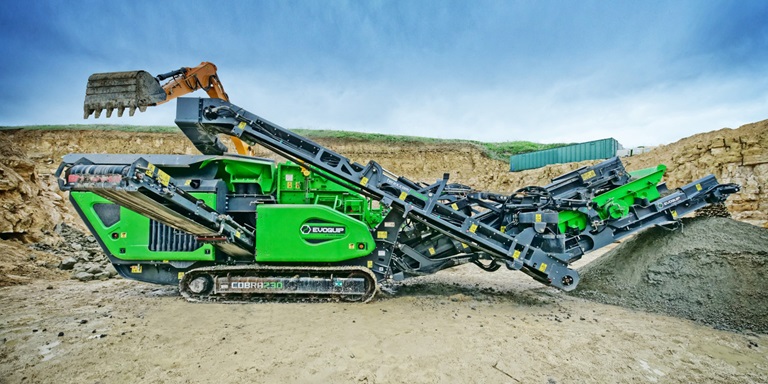

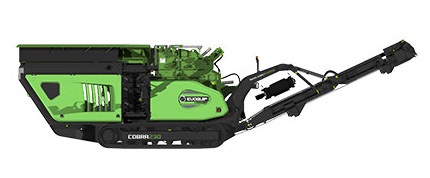

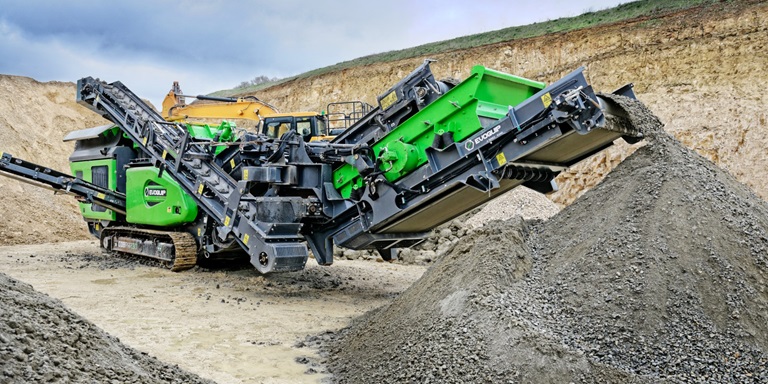

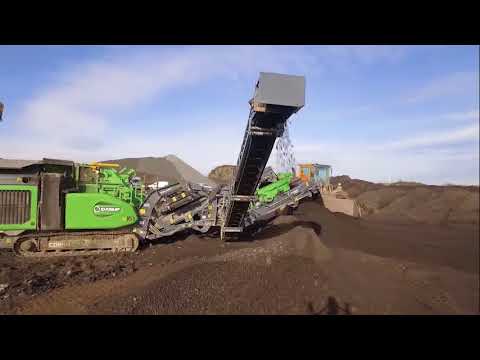

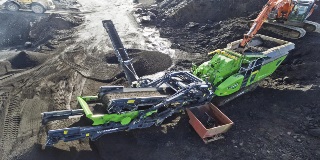

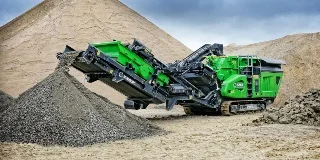

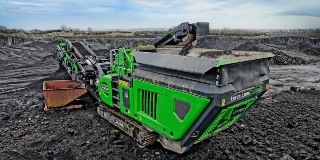

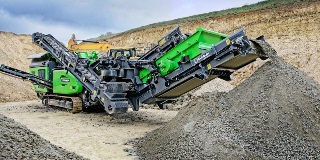

Cobra 230R
The Cobra 230R is a versatile and easy to use Small Impact Crusher that can operate in the most demanding of applications such as Reinforced Concrete, Recycled Asphalt, Construction and Demolition waste and Natural Rock. The integrated Afterscreen system on the Cobra 230R ensures the required product specification is achieved with oversize material either being recirculated back to the Crusher or else stockpiled.
POWERUNIT
- Tier 4 Final: Volvo D8 210kW (281Hp)
- Stage V: Volvo D8 210kW (281Hp)
- Direct drive to crusher via clutch and V Belts
CONVEYORS
- 900mm (36”) Wide product conveyor
- 500mm (20’’) Transfer conveyor
- 500mm (20’’) Oversize conveyor with Recirc & Stockpile
- 1000mm (48’’) Fines conveyor with 2.5m (8’2’’) discharge
HOPPER / FEEDER
- 2.6m3 (3.4yd3) Hopper capacity
- Integrated pre-screen for fines removal
- Feeder speed auto-regulates depending on crusher load
IMPACT CRUSHER
- 860mm (34”) x 720mm (28.5”) Crusher Inlet
- 830mm (33”) Wide x 860mm (34”) diameter rotor
- 2 High / 2 Low configuration as standard
- Hydraulic adjust and hydraulic overload protection as standard
SCREEN
- 2.44m x 1.2m (8’ x 4’) single deck mesh
- Side tensioned
- Screen can be lowered to horizontal to ease mesh change and maintenance
Technical Documentation
Measurements
Transport Length
43 ft 70 in
Measurements
Transport Width
8 ft 30 in
Transport Height
9 ft 10 in
Productivity
Output Potential
275 tph
