Falcon 1230

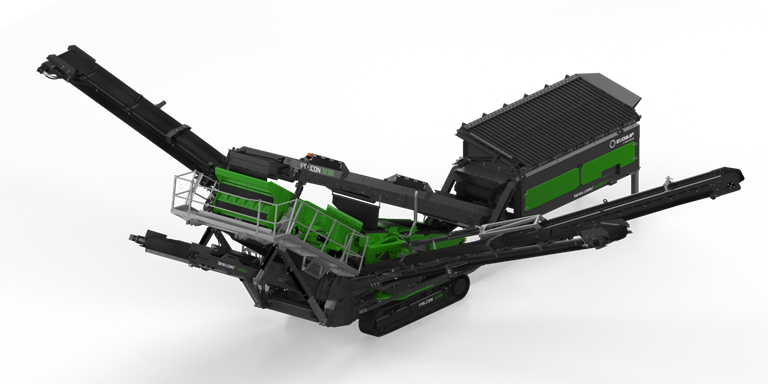

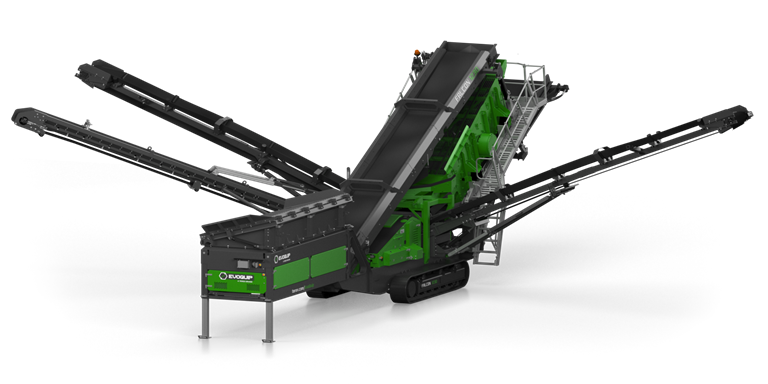

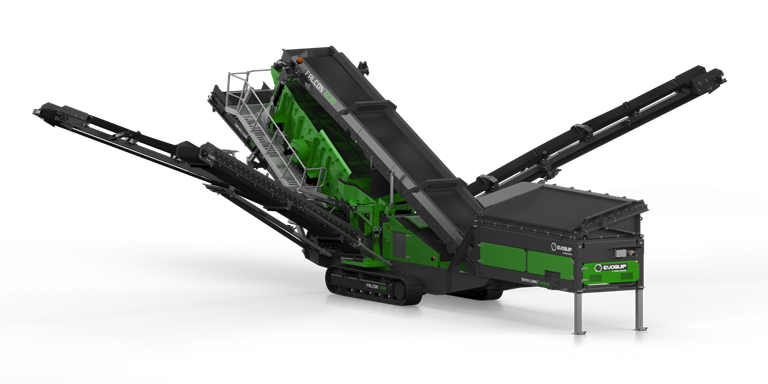

The Falcon 1230 Portable Inclined Screen, a solution for scalping, screening and stockpiling in a self-contained unit. A compact easily transportable machine that offers operators rapid set up and tear down times
HOPPER / FEEDER
- 8m3 (10.5yd3) hopper capacity
- 4.2m (14ft) long hopper and belt feeder
- 1050mm (42”) wide feeder belt
SCREEN
- Versatile and configurable 3 deck screen
- 3.66m x 1.52m (12’ x 5’) top & middle deck screen
- 3.00m x 1.52m (10’ x 5’) bottom deck screen
- Total screening area: 15.7m² (170ft²) 3 deck
- screen speed: 1120rpm max
POWERUNIT
- Tier 3: CAT C4.4
- Engine Power: 77kW (103Hp)
- Engine Speed: 1800rpm
- Stage 3A (EU Region Only): CAT C4.4
- Engine Power: 98.1kW (131Hp)
- Engine Speed: 1800rpm
- Tier 3 Option: CAT C4.4 LRC (Optional)
- Engine Power: 90kW (121Hp)
- Engine Speed: 1800rpm
- Stage V (EU Region Only): CAT C4.4
- Engine Power: 98kW (131Hp)
- Engine Speed: 1800rpm
- Tier 4 Final: CAT C4.4
- Engine Power: 82kW (110Hp)
- Engine Speed: 1800rpm
CONVEYORS
- 1m (40”) wide main conveyor
- 1.2m (48”) wide fines conveyor with 4.4m (14’ 4”) discharge
- 650mm (26”) wide mid -overs with 4.76m (15’ 7”) discharge
- 650mm (26”) wide mid-fines with 4.76m (15’ 7”) discharge
- 500mm (20”) wide over size conveyor with max discharge height 4.48m (14’ 8”)
TIPPING GRID
- 4.25m (14ft) long tipping grid as standard
- Feed in width 4.77m (15’ 8”)
FALCON 1230 PORTABLE INCLINED SCREEN IS A COMPACT, EASILY TRANSPORTABLE MACHINE.
FALCON 1230 PORTABLE INCLINED SCREEN -IS A COMPACT EASILY TRANSPORTABLE MACHINE i
Technical Documentation
Measurements
Screen
12' x 5' / 3.66m x 1.52m
Transport Height
11 ft 30 in
Transport Length
55 ft
Transport Width
8 ft 50 in
Productivity
Output Potential
330 tph
