I-120RS
The Finlay® I-120RS provides the flexibility of a portable impact crushing and screening plant on one platform. The on-board innovative quick detach 3.66m x 1.53m (12’ x 5’) two deck screen ensures a quality cu...
IC-100RS
Compact Impact Crusher
The Finlay® IC-100RS Compact Crushing Plant provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications.
The machine features a direct drive ø860mm x 860mm (Ø34” x 34”) horizontal impact crusher with variable speed control to give operators high levels of fuel efficiency and productivity.
A key feature of this Compact Crushing Plant is the onboard 2.44m x 1.2m (8’ x 4’) single deck screen. For applications not requiring recirculation of oversize material back to the crushing chamber or stockpiling an oversize product the complete screening and recirculating system can be quickly detached from the machine.
The compact size, ease of transport, quick set up times and intuitive operation make this machine ideal for contract crushers, independent rental houses and small scale operators.
Key Features:
- Direct drive Ø860mm x 860mm (Ø34" x 34") crusher chamber with independent belt tensioner allowing for rapid adjustment.
- Hydraulic apron setting assist provides convenient and efficient adjustment of the aprons and hydraulic overload protection in event that an un-crushable object enters chamber.
- Advanced electronic control system monitors, controls and regulates the speed of the VGF to maintain a consistent flow of material into the impact chamber
- Quick and easy detachable 2.44m x 1.2m (8’ x 4’) single deck afterscreen, fines and transfer conveyor for open circuit crushing.
- Recirculating conveyor can be rotated from closed loop configuration and utilized for stockpiling making an additional oversized product.
Downloads
Video Gallery
Terex Finlay IC-100RS compact impact crusher animation
Terex Finlay IC-100RS Compact Impact Crusher
Terex Finlay IC-100RS Compact Impact Crusher (Concrete Recycling)
.tmb-768v.jpg?Culture=en&sfvrsn=d837d9b5_2)
Terex Finlay IC-100RS Compact Impact crusher (recirculating)
.tmb-768v.jpg?Culture=en&sfvrsn=226c769b_2)
Terex Finlay IC-100RS Compact Impact Crusher (screen detach)
.tmb-768v.jpg?Culture=en&sfvrsn=c8decdef_1)
Terex Finlay IC-100RS impact crusher
Image Gallery
| Specification | Value |
|---|---|
| Net Engine Power: Tier 3 / Stage IIIA | John Deere 6068 (260hp) / John Deere 6068 (194kW) |
| Net Engine Power: Tier 4F / Stage IV | Volvo 275hp / Volvo 205kW |
| Net Engine Power: Stage V | Volvo 275hp / Volvo (205kW |
| Rotor Size | Ø34” x 33” / Ø860mm x 830mm |
| Operating Weight | 64,595lbs / 29,300kg |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
Related Products
-
![i120rs-impact-crushing-and-screening-plant-recycling-asphalt]()
-
![i140rs-mobile-crusher-in-rock-quarry]()
I-140RS
The Finlay® I-140RS mobile impactor provides the flexibility of a tracked impact crushing and screening plant on one machine. The key component is the on-board detachable 4.8m x 1.5m (16’ x 5’) single deck scre...
-
![i120-tracked-impactor-crushing-recycled-asphalt]()
I-120
The Finlay® I-120 is a mid-sized track-mounted mobile impact crusher, commonly used for processing medium to hard natural aggregates and recycling materials such as asphalt, concrete and bricks. For operators i...
-
![i140-tracked-impactor-recycling-concrete-quarry]()
I-140
The Finlay® I-140 tracked impact crusher has an advanced technological design that gives improved material flow through the machine to produce precisely shaped cubical end products in quarrying, mining, demolit...
-
![ic-100-compact-recycling-impactor-for-asphalt-and-concrete]()

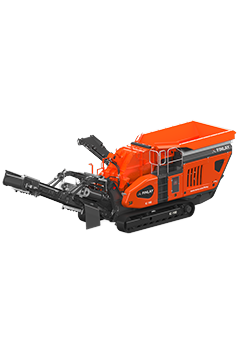

IC-100
The Finlay® IC-100 compact impactor has been specifically designed for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The IC-100 provides operators with a...
-
![IC-110 right]()

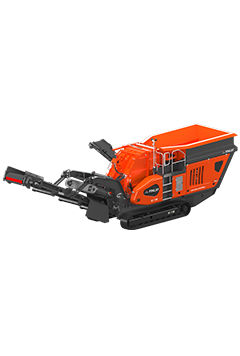

IC-110
The Finlay® IC-110 tracked compact impact crusher has been designed to provide high productivity in quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The imp...
-
![]()

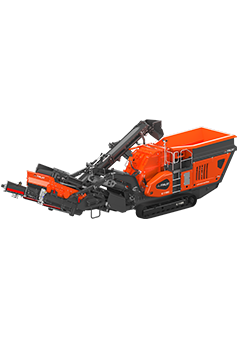

IC-110RS
