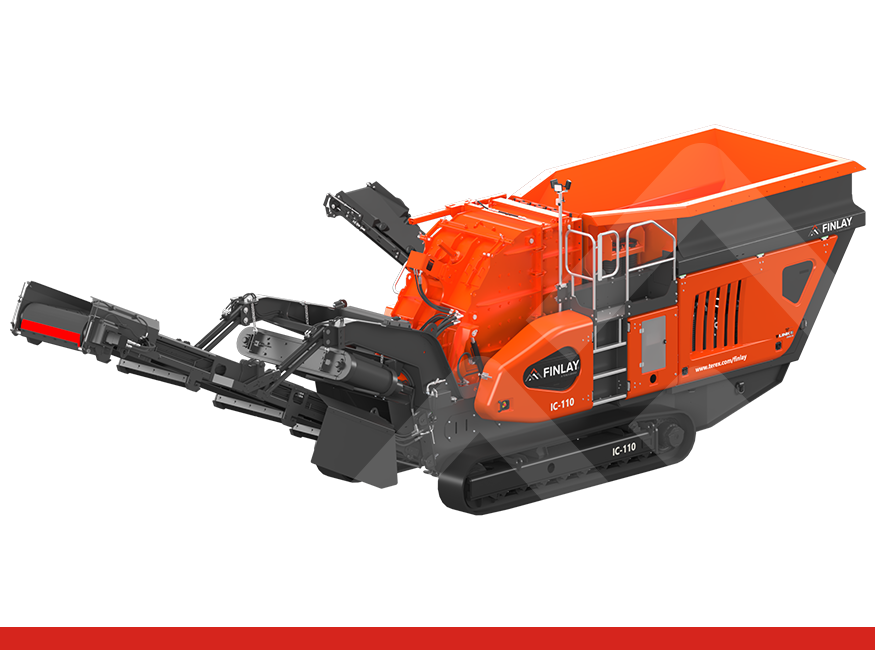

IC-110
Compact Impact Crusher
The Finlay® IC-110 Mobile Compact Crusher has been designed to provide high productivity in quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The IC-110 features a Ø1034 x 1000mm (Ø41.5” x 40”) direct drive impact chamber with variable rotor speed and hydraulic apron setting assist to provide convenient and efficient adjustment of the chamber aprons. The chamber is also fitted with hydraulic overload protection system as standard. For operators in recycling and demolition applications an underpan feeder is also available as options.
The compact size, ease of transport, quick set up times and intuitive operation make this Mobile Compact Crusher ideal for contract crushers, independent rental houses and small scale operators.
Key features:
- Direct drive Ø1034 x 1000mm (Ø41.5” x 40”) crusher chamber with independent belt tensioner allowing for rapid adjustment.
- The advanced electronic control system monitors, controls and regulates the speed of the vibrating grizzly feeder to maintain a consistent feed of material into the impact chamber.
- Fully hydraulic assisted apron setting features makes adjustment of the aprons convenient and efficient.
- Crusher chamber is supplied with a 4 bar rotor and two apron design for large reduction ratios and consistent product shape.
Downloads
Video Gallery
Terex Finlay IC-110 compact impact crusher
Image Gallery
| Specification | Value |
|---|---|
| Net Engine Power: Tier 3 / Stage IIIA | Volvo 315hp / Volvo 235kW |
| Net Engine Power: Tier 4F / Stage IV | Volvo 315hp / Volvo 235kW |
| Net Engine Power: Stage V | Volvo 315hp / Volvo 235kW |
| Rotor Size | Ø41.5” x 40” / Ø1034mm x 1000mm |
| Operating Weight | 63,934lbs / 29,000kg |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
