C-1554
Cone Crusher
.jpg?sfvrsn=2a13706_20)

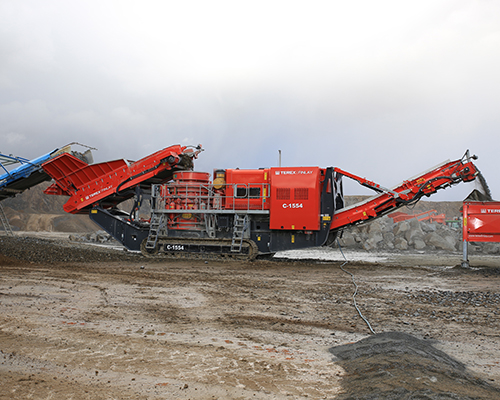

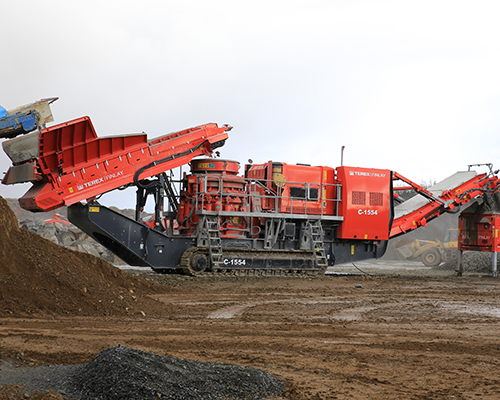

The Terex® Finlay C-1554 Secondary Cone Crusher is the ultimate mobile solution for any aggregates producer or contractor looking for a high output capacity machine that provides large reduction ratios and an excellent cubical shape.
This aggressive machine incorporates the proven Terex® MVP450x cone crusher that can accept an all in feed and features direct variable speed clutch drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.
The large hopper/feeder on the plant has an automated metal detection and a purge system designed to protect the cone and reduce downtime by removing metal contaminants via the purge chute.
Key Features:
- Fully Hydraulic CSS Adjustment with electronic monitoring system ensures ease of operation.
- Fuel efficient direct drive transmission through wet clutch.
- Hydraulic Tramp Relief System with automatic reset protects the chamber and minimises downtime.
- Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.
Video Gallery
Terex Finlay C-1554 cone crusher (Quarry)
Terex Finlay C-1554 cone crusher (set up / tear down sequence)
| Specification | Value |
|---|---|
| Net Engine Power | Caterpillar C18 Acert 765hp / Caterpillar C18 Acert 571kW |
| Cone Head Diameter | 54” / 1380mm |
| Transport Weight | 134,614lbs / 61,060kg |
| Transport Dimensions | Height 12' 6'' | Width 9' 10'' | Length 55' 9'' / Height 3.8m | Width 3m | Length 17m |
| Working Dimensions | Height 15' 11'' | Width 13' 9'' | Length 60' 8'' / Height 4.85m | Width 4.2m | Length 18.5m |
