C-1540RS
The Finlay® C-1540RS tracked cone crusher provides the versatility of a crushing and screening plant on one machine. Based on the Finlay® C-1540 this machine features an innovative on board recirculating system...
C-1550+
Tracked Cone Crusher

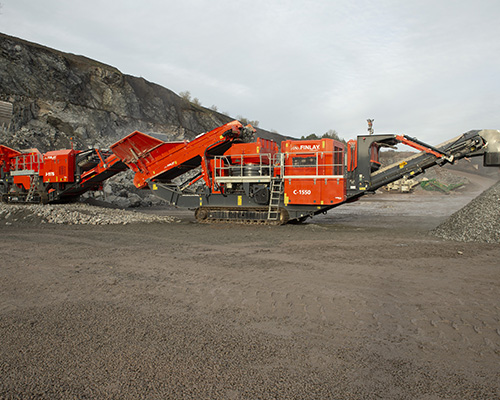

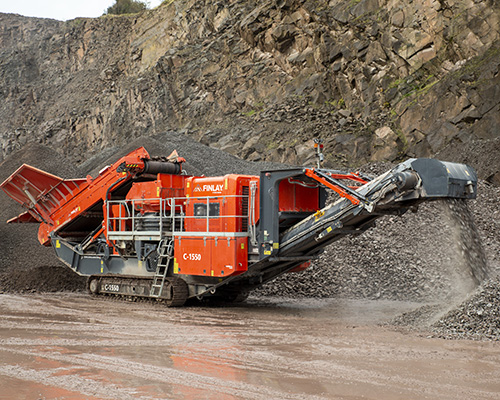

The Finlay® C-1550+ Tracked Cone Crusher is a high capacity and aggressive mobile cone crusher for the surface ore mining and aggregate industries. This efficient and productive machine incorporates the proven Terex® 1300 cone crusher with direct variable clutch drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.
The large hopper/feeder has an automated metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute.
Additional benefits include, rapid set up time, ease of maintenance, high reduction ratio, high output capacity and advanced electronic control system.
Key Features:
- Fully Hydraulic CSS Adjustment with electronic monitoring system ensures ease of operation.
- Fuel efficient direct drive transmission through wet clutch.
- Hydraulic Tramp Relief System with automatic reset protects the chamber and minimizes downtime.
- Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.
Downloads
Hopper / Feeder
Metal purge system
Cone chamber
Main conveyor
Undercarriage
T-Link Telematics
Video Gallery
Finlay C-1550+ Cone Crusher
.tmb-768v.jpg?Culture=en&sfvrsn=3e912d40_1)
Image Gallery
| Specification | Value |
|---|---|
| Net Engine Power: Tier 3 / Stage IIIA | Tier 3 - Cat 540hp | Tier 4F / Stage IV - Scania 550hp / Tier 3 - CAT 403kW | Tier 4F / Stage IV - Scania 405kW |
| Cone Head Diameter | 52'' / 1300mm |
| Transport Weight | 110,782lbs / 50,250kg |
| Transport Dimensions | Height 12' 6'' | Width 9' 10'' | Length 58' 9'' / Height 3.8m | Width 3m | Length 17.92m |
| Working Dimensions | Height 16' | Width 12' 10'' | Length 55' 1'' / Height 4.89m | Width 3.92m | Length 16.8m |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
