883+ Spaleck

Scalper

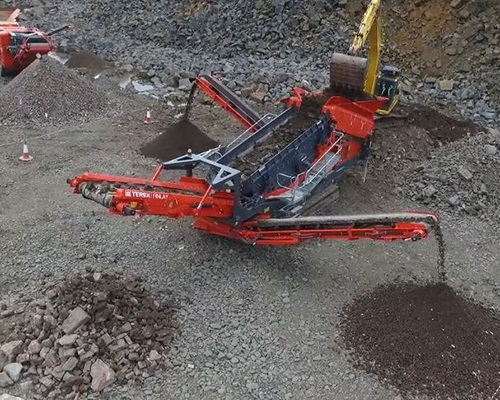

Terex-Finlay-883+-Spaleck-Scalping Screen

The Terex Finlay 883+ Spaleck Mobile Scalping Screen is the ultimate in mobile screening and separation technology. At the heart of the screen is the two deck German designed and constructed high performance recycling waste screen with Flip-Flow-Screen Elastica.

The unique stepped top deck design combined with state of the art flip flow technology on the bottom deck catapults the 883+ Spaleck into a class of its own.

Its processing capabilities and application flexibility make the machine the only all in one mobile solution for the processing and separation of recycling materials such as incineration slag, shredder light and heavy fraction, scrap metal, electronic scrap, C&D, C&I, bulky waste, compost, plastic fractions, biomass, topsoil etc.

The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine.

Key Features:

  • Nearly blockage-free screening in the upper and lower deck thanks to tried and tested 3D and Flip-Flow technology.
  • The 3D screening segments guarantee correct grain size with no long pieces or extraneous material for the tension shaft screen on the lower deck.
  • The Flip-Flow screen with screwless mounted screen mats avoids unnecessary cleaning.
  • This combination of two system solutions in one machine enables you to make enormous savings on conveying equipment, steel structures and space.
HOPPER / FEEDER
SCREENBOX
MIDGRADE CONVEYOR
OVERSIZE CONVEYOR
FINES CONVEYOR
UNDERCARRIAGE
T-Link Telematics

Specification Value
Net Engine Power Tier 3 - Cat 113.3hp - Tier 4F / Stage IV - Cat 110hp / Tier 3 - CAT 83kW | Tier 4F / Stage IV - Cat 82kW
Screen 16' x 5’ / 4.8m x 1.53m
Weight 67,240lbs / 30,500kg
Transport Dimensions Height 13' 1'' | Width 9' 10'' | Length 48' 8'' / Height 4m | Width 3m | Length 13.8m
Working Dimensions Height 13' 1'' | Width 41' 4'' | Length 48' 8'' / Height 4m | Width 12.6m | Length 14.8m

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.


T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and  screeners* from 1st January 2017 (*machines fitted with electronic engine).
