883+ Triple Shaft

Scalper

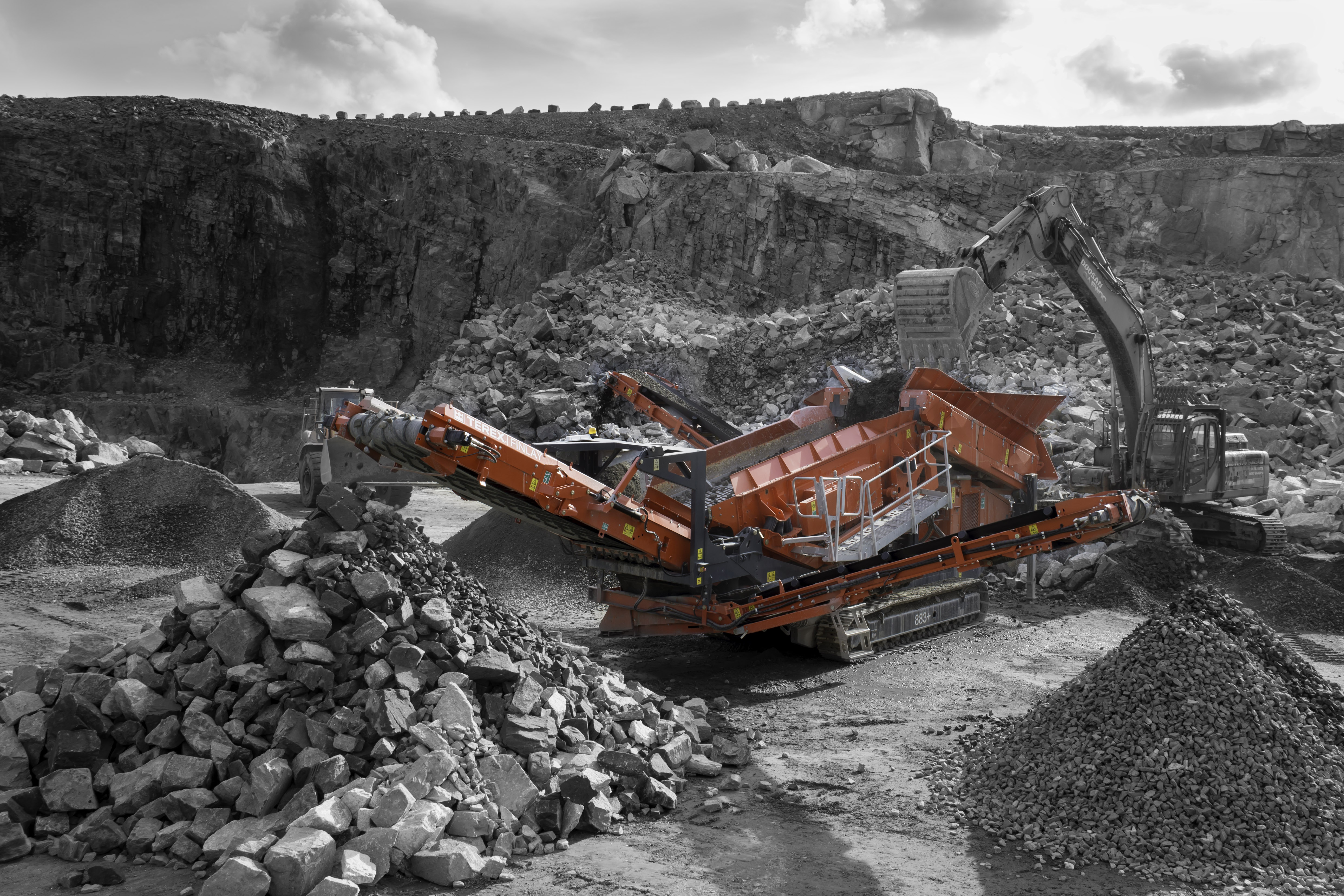

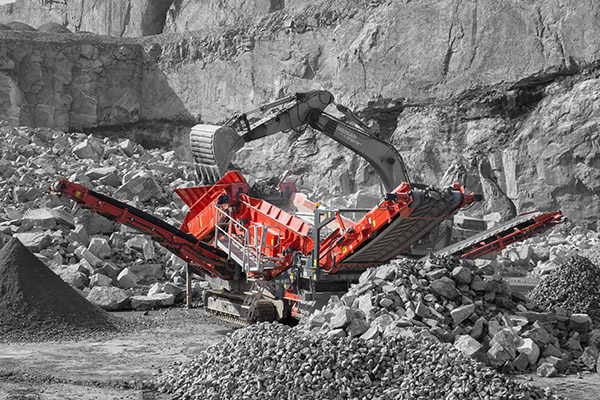

The industry leading Terex®  Finlay 883+ mobile scalping screener is now available with a triple shaft screenbox that is ideal for working in dry and sticky applications including quarry, mining, sand, gravel, construction and demolition debris and recycling applications. The heart of this new model is the new triple shaft screenbox, featuring two “true” full size 4.8 x 1.53m (16’ x 5’) screening decks.

The triple-shaft design of this new screenbox employs an oval motion stroke to  generate an aggressive screening action, reducing plugging and blinding over the screen decks to ultimately provide a quality product with high tonnage output.

The model is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine.

Key Features:

  • Higher G-force and larger stroke of the triple shaft screenbox provides the optimal solution for high productivity in dry and sticky applications.

  • Multiple media configurations including bofor bars, finger screens, woven mesh and punch plates are available for a wide range of applications, from fine screening to heavy scalping.

  • All media configurations are compatible with both the standard and triple shaft screenboxes.

  • The banana profile of the bottom deck maximizes the screening of fine materials.

Hopper / feeder
SCREENBOX
Midgrade conveyor
Fines conveyor
Oversize conveyor
Undercarriage
T-Link Telematics

Specification Value
Net Engine Power Tier 3 - Cat 113.3hp - Tier 4F / Stage IV - Cat 110hp / Tier 3 - CAT 83kW | Tier 4F / Stage IV - Cat 82kW
Screen 16’ x 5’ / 4.8 x 1.53m
Weight 68,340lbs / 31,000kg
Transport Dimensions Height 11' 2'' | Width 9' 10'' | Length 48' 8'' / Height 3.4m | Width 3m | Length 14.8m
Working Dimensions Height 13' 1'' | Width 41' 4'' | Length 48' 8'' / Height 4m | Width 12.6m | Length 14.8m

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.


T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and  screeners* from 1st January 2017 (*machines fitted with electronic engine).
