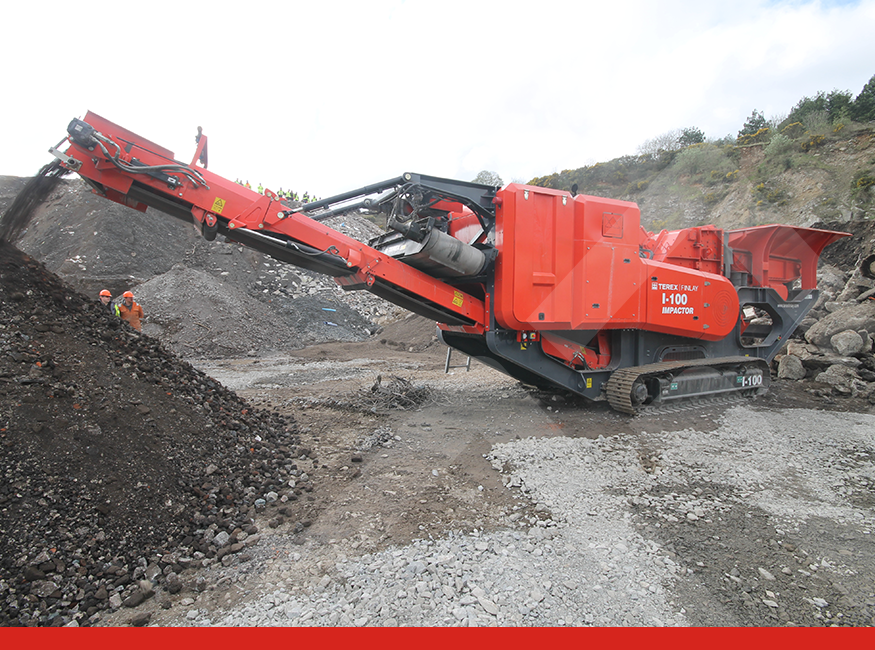

I-100
Impact Crusher
The Finlay I-100 tracked impact crusher has been specifically designed for quarrying, recycling and demolition applications.
The I-100 features a Ø860mm x 830mm (Ø34” x 33”) direct drive impact chamber with variable rotor speed.
The advanced electronic control system monitors, controls and regulates the speed of VGF with, integrated pre-screen, to maintain a consistent feed of material into the impact chamber while maintaining optimal crushing capacity.
The machine provides operators high material reduction ratios and produces a consistent product grading.
Key Features
- Hydraulic apron setting assist provides convenient and efficient adjustment of the aprons.
- Hydraulic overload protection provides instant protection for uncrushable material.
- Heavy duty vibrating feeder (VGF) with integrated prescreen helps by-pass dirty fines
- Direct drive crusher chamber with independent belt tensioner allowing for rapid adjustment.
- Crusher chamber is supplied with a 4 bar rotor and two apron design for large reduction ratios.
Downloads
| Specification | Value |
|---|---|
| Net Engine Power | Tier 3 - Caterpillar C7.1 Acert 250hp | Tier 4F/ Stage IV - Caterpillar C7.1 275hp / Tier 3 - Caterpillar C7.1 Acert 186kW | Tier 4F/ Stage IV - Caterpillar C7.1 205kW |
| Rotor Size | Ø34” x 33” / Ø860mm x 830mm |
| Transport Weight | 59,525lbs / 27,000kg |
| Transport Dimensions | Height 10' 6'' | Width 8' 2'' | Length 43' 11'' / Height 3.2m | Width 2.5m | Length 13.4m |
| Working Dimensions | Height 11' 10" | Width 13' 1" | Length 44' / Height 3.6m | Width 4m | Length 13.4m |
