I-120

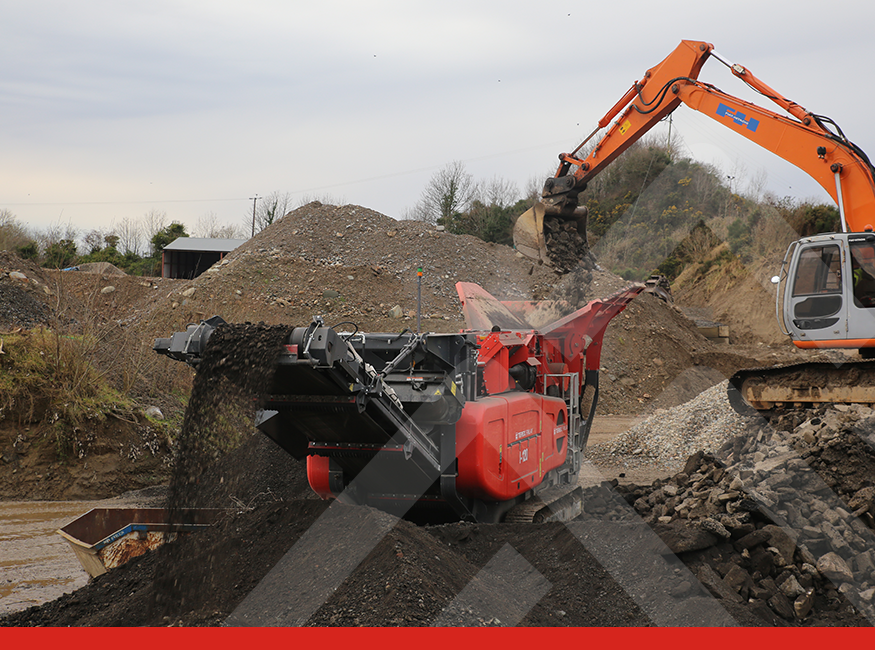

Impact Crusher

Terex-Finlay-I-120-Impact-Crusher-(General-thumbnail)

The second generation I-120 Horizontal Impact Crusher has been designed with improved material flow and enhanced productivity in quarrying, mining, recycling and construction demolition applications. Incorporating the proven Terex® CR038 impact chamber with direct drive and advanced electronic control system the machine provides operators with high material reduction ratios and produces a consistent product shape.

For operators in recycling and demolition applications the options of an underpan feeder and auto adjust on the chamber secondary apron are also available for the machine.

Key Features:

  • Fully hydraulic apron setting assist provides convenient and efficient adjustment of the chamber aprons.

  • Heavy duty vibrating feeder (VGF) with integrated prescreen removes dirt fines and sizes bypass material for reprocessing.

  • Curved corners on the feeder wear plate to minimize the chances of material building up in the corners when running in sticky material.

  • For efficient and safer onsite set up and tear down processes the hopper is hydraulically folded and locked from ground level




Main Conveyor
Impact Chamber
VGF Hopper / Feeder
Bypass Conveyor
Undercarriage
Magnet Separator (Optional)
T-Link Telematics

Specification Value
Net Engine Power Tier 3 - CAT 375hp | Tier 4F / Stage IV - Scania 400hp / Tier 3 - CAT 280kW | Tier 4F / Stage IV - Scania 292kW
Rotor Size Ø41” x 44” / Ø1033mm x 1100mm
Transport Weight 81,571lbs / 37,000kg
Transport Dimensions Height 11' 2'' | Width 8' 6'' | Length 49' 10'' / Height 3.4m | Width 2.6m | Length 15.2m
Working Dimensions Height 13' 0'' | Width 18' 9'' | Length 48' 10'' / Height 4.0m | Width 5.8m | Length 14.9m

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment. At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimize your profitability without needing to be standing beside your machine.


Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.


T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and  screeners* from 1st January 2017 (*machines fitted with electronic engine).
