683

Inclined Screen

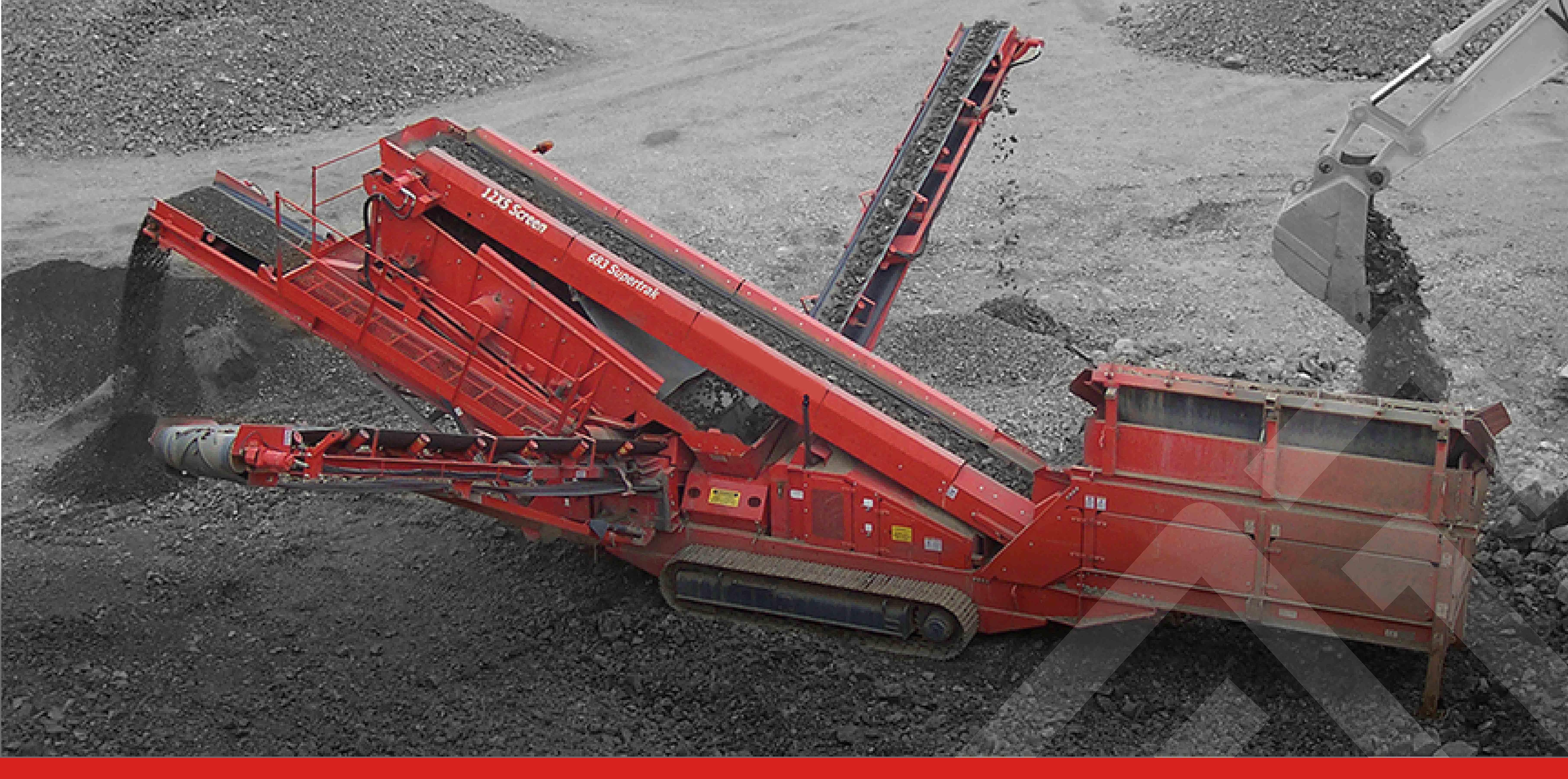

The Terex® Finlay 683 Portable Screening Plant is the most popular machine in the Terex® Finlay inclined range.

Renown for its quality, performance and productivity the Terex® Finlay 683 combines scalping, screening and stockpiling into one self contained unit.

Its rugged design enables the Terex® Finlay 683 with its 3.65m x 1.5m (12’ x 5’) screen to handle materials such as sand and gravel, limestone, crushed stone, coal, topsoil and demolition waste.

Remote tipping reject grid, hydraulic screen tensioning of bottom deck mesh and three on-board hydraulic folding conveyors are standard.

Key Features:

  • 8m³ hopper (10.5yd3) with 4.25m (14’) tipping grid.
  • Remote control hydraulic tipping reject grid c/w grouser bars 4.25m x 100mm spacing (14’ 0” x 4”).
  • 3.66m x 1.52m (12’ x 5’) top deck screen and 3.00m x 1.52m (10’ x 5’) bottom deck screen Hydraulic tensioning (bottom deck screen mesh).
  • Catwalk around screen c/w handrail, kick board and access ladder.
  • Screen box reject chute (1).
  • Skirting on main conveyor.
  • Heavy duty undercarriage unit with 400mm wide tracks.
  • Control operation of tracks via hand-held set with 5m connection lead with heavy duty square connector.
  • Guards to M & Q specification.
  • Low level greasing & emergency stops (4).
Oversize & Mid-grade conveyors

Specification Value
Net Engine Power Tier 3 - Cat 113hp | Tier 4F / Stage IV - 110hp / Tier 3 - Cat 83kW | Tier3 4F / Stage IV - 82kW
Screen 12’ x 5’ / 3.66m x 1.52m
Weight 53,462lbs / 24,250kg
Transport Dimensions Height 10' 8'' | Width 9' 10'' | Length 49' 3'' / Height 3.25m | Width 3m | Length 15m
Working Dimensions Height 17' 5'' | Width 56' 7'' | Length 54' 0'' / Height 5.3m | Width 17.25m | Length 16.5m

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.


T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and  screeners* from 1st January 2017 (*machines fitted with electronic engine).
