Aggrescalp

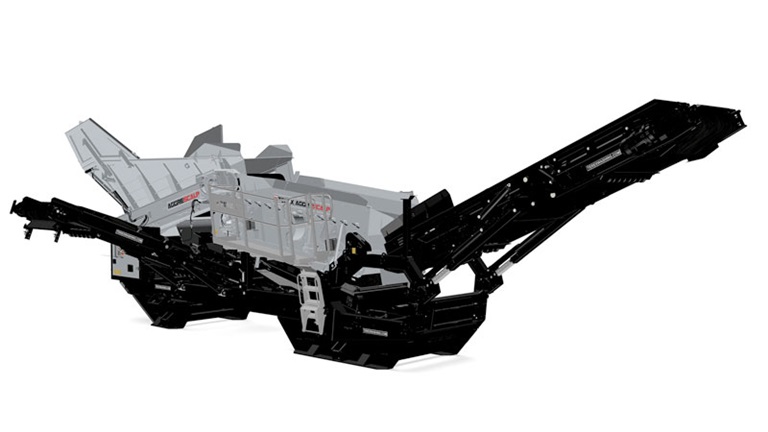

The highly aggressive primary scalping screen can accept media including bofor bars, finger screens, woven mesh and 3D punch plates, which allows it to be used across a wide variety of applications.

With on board hydraulic folding product conveyors, hydraulic screen angle adjustment and single lift set-up, it remains easy to transport and easy to set-up. The AggreScalp™ Scalping Screen can work in conjunction with the Terex® AggreSand™ range by providing a consistent feed material even in difficult applications. Together they form an efficient, lower operating cost aggregate and recycling solution.

FEATURES & BENEFITS
• Semi-mobile
• Electric powered (40Kw)
• Integrated hydraulic pack for set up
• Pre wired & pre plumbed
• Quick set up
• Integrated discharge conveyors
• 2-way & 3-way split

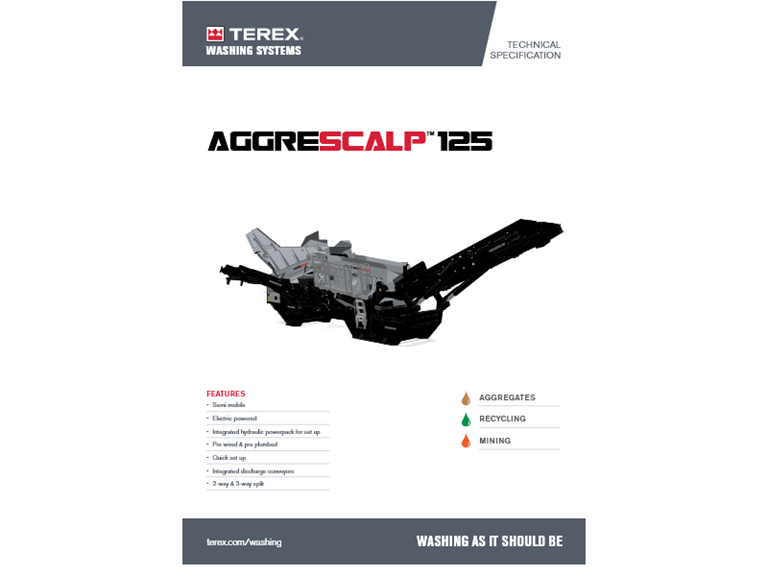

Technical Documentation

Measurements

Machine Width 18 ft 5 in 5 m 60 cm
Machine Length 46 ft 11 in 14 m 30 cm
Machine Height 14 ft 1 in 4 m 50 cm

Application Type

Application Type Recycling / Aggregates
