Cobra 290R

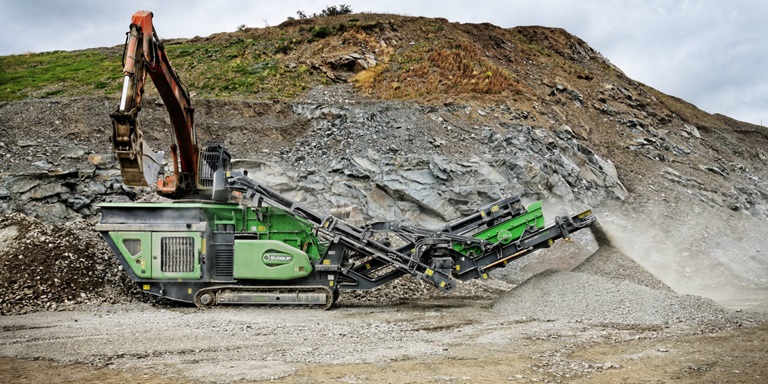

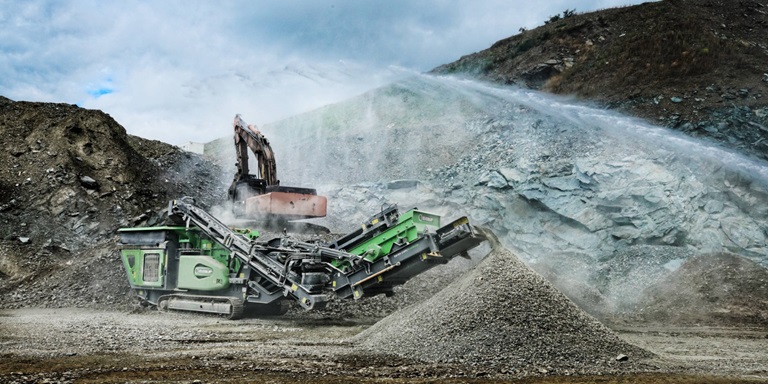

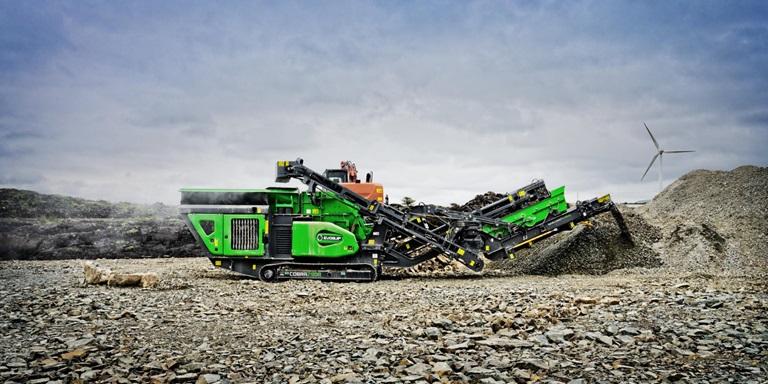

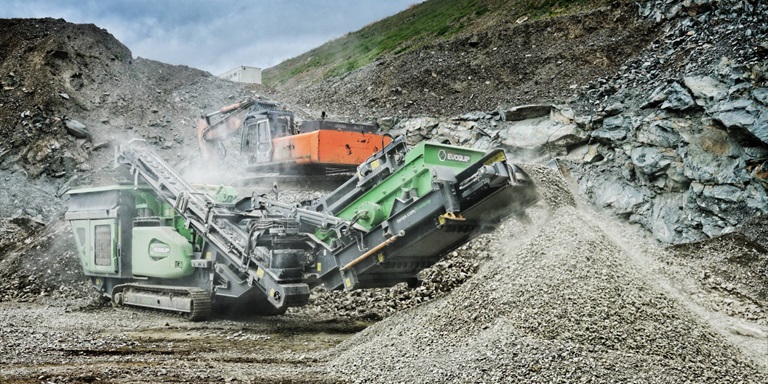

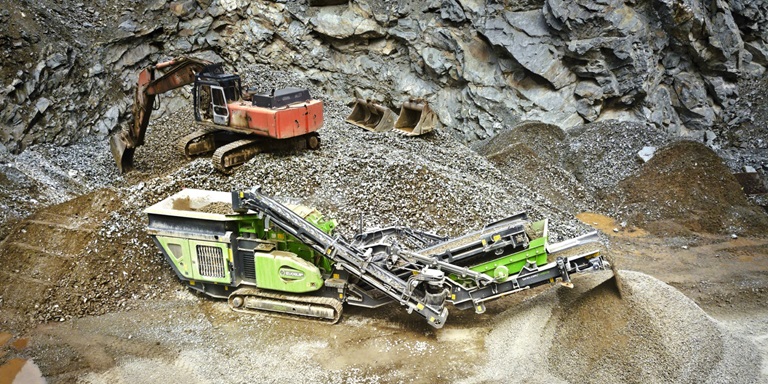

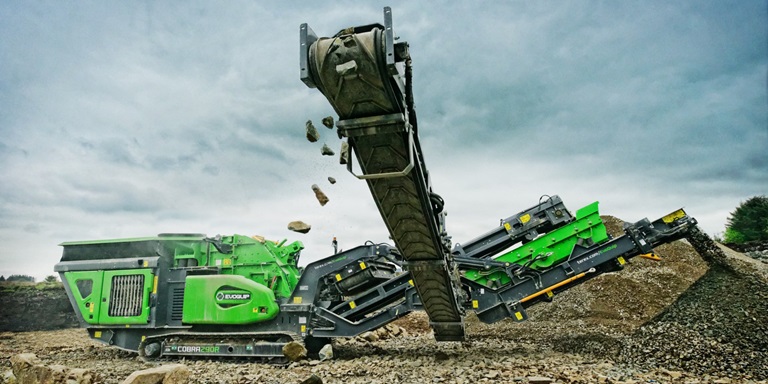

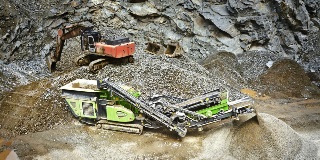

The Cobra 290R is a versatile and easy to use Track Mounted Impact Crusher that can operate in the most demanding of applications such as Reinforced Concrete, Recycled Asphalt, Construction and Demolition waste and Natural Rock. The integrated Afterscreen system on the Cobra 290R Track mounted Impact Crusher ensures the required product specification is achieved with oversize material either being recirculated back to the Crusher or else stockpiled.
The Cobra 290R Impact Crusher is available with the wind sifter as an option, providing the ideal solution to remove contaminants such as plastic and wood from crushed C&D waste based on density and size.
The Cobra 290R Impact Crusher is available with the wind sifter as an option, providing the ideal solution to remove contaminants such as plastic and wood from crushed C&D waste based on density and size.
HOPPER / FEEDER
- 3.3m3 (4.3yd3) Hopper capacity
- Integrated pre-screen for fines removal
- Feeder speed auto-regulates depending on crusher load
CONVEYORS
- 1000mm (40”) Wide product conveyor
- 500mm (20”) Wide side conveyor (option)
- Side conveyor (option) discharge height 2.48m (8’2”)
- 500mm (20”) Transfer conveyor
- 500mm (20”) Oversize conveyor with Recirc & Stockpile.
- 1200mm (47”) Fines conveyor with 3m (9’10”) discharge
IMPACT CRUSHER
- 1030mm (41”) x 790mm (31”) crusher inlet
- 1000mm (40”) x 1034mm (41.5”)
- Max OSS - 150mm (6”) upper, 75mm (3”) lower
- Min CSS - 50mm (2”) upper, 20mm (3/4”) lower
- 2 high / 2 low configuration as standard
- Hydraulic adjust and hydraulic overload as standard

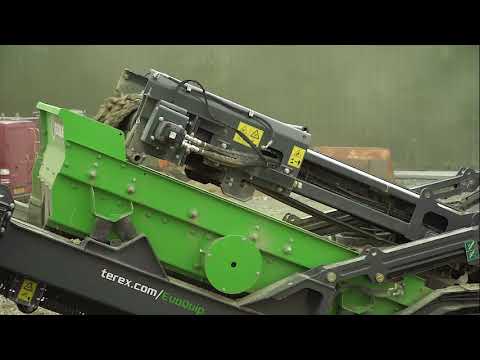

SCREEN
- 2.74m x 1.5m (9’x5’) single deck screen
- Wide range of screen media
- Side tensionedScreen can be lowered to horizontal to ease mesh change and maintenance
POWERUNIT
- Tier 3 Equivalent: Volvo D8 235 kW (315hp)
- Tier 4 Final: Volvo D8 235kW (315Hp)
- Stage V: Volvo D8 235kW (315Hp)
- Direct drive to crusher via clutch and V belts
Technical Documentation
Measurements
Transport Height
10 ft 40 in
Transport Length
48 ft 50 in
Transport Width
9 ft 60 in
Measurements
Diameter Rotor
40" x 41.5" / 1000mm x 1034mm
Output Potential
320 tph
EvoQuip continues to focus on versatility and have released the new Wind Sifter option for the Cobra Impact Crusher Range.
Designed to be rugged, powerful and efficient, the Wind Sifter provides the ideal solution to remove contaminants such as plastic and wood from crushed C&D waste based on density and size.
The Wind Sifter option offers effective separation of light materials from the crushed material by means of a continuous jet of air at the end of the transfer conveyor forcing light fractions out of the crusher closed circuit for disposal or alternative recycling operation.
Air flow is variable and air nozzle pitch angle can be easily adjusted providing a high degree of versatility to suit any application further enhancing the Cobra range making them the perfect recycling crushers.
With wide belts, tunnelled conveyor, excellent under crusher clearance as standard and options including twin pole magnet, underpan and now the new wind sifter the Cobra 290R really is a versatile recycling machine.
