Jaw Crushers

Terex Finlay J1175 Jaw Crusher

Terex® Finlay tracked Mobile Jaw Crushers are renown for their capabilities in the reduction and sizing of aggregates for construction materials and also recycling construction waste. The Finlay range of Jaw Crushers are designed to meet the toughest demands of primary crushing applications with their impressive power, reliability and proven performance.

  • LJ-130 Hybrid

    The Terex® Finlay LJ-130 hybrid mobile jaw crusher is the largest mobile jaw crusher in our range and has been developed for large-scale quarry and mining operations.The plant’s electrically driven power systems provide significant cost advantages and environmental efficiencies. The machine features a robust Terex 1300 x 1000mm (51” x 39”) single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 3 - CAT 540hp | Tier 4 Final / Stage V - Scania 550hp Tier 3 - CAT 403kW | Tier 4 Final / Stage V - Scania 410kW
    Inlet Opening 51” x 39” 1300 x 1000mm
    Operating Weight 271,169lbs 123,000kg
    Transport Dimensions Height 13’ 11” | Width 11’ 9” | Length 55’ 8” Height 4.25m | Width 3.4m | Length 17m
    Working Dimensions Height 6.4m | Width 7.3m | Length 71’ 6” Height 21’ 3” | Width 24’ 1” | Length 71’ 6”
  • J-1480

    The Terex® Finlay J-1480 tracked mobile crusher incorporates the Terex® Jaques JW55 single toggle jaw which boasts a throughput capacity up to 750mtph depending on application and material. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1415mm x 820mm (55” x 32”)single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 3 - CAT 440hp | Tier 4 Final / Stage V - Scania 450hp Tier 3 - CAT 328kW | Tier 4 Final / Stage V - Scania 331kW
    Inlet Opening 55” x 32" 1415mm x 820mm
    Operating Weight 175,157lbs 79,450kg
    Transport Dimensions Height 12' 8'' | Width 11' 1'' | Length 59' 4'' Height 3.8m | Width 3.38m | Length 18m
    Working Dimensions Height 15' 3'' | Width 22' 0'' | Length 67' 11'' Height 4.6m | Width 6.7m | Length 20.7m
  • J-1280

    The Terex® Finlay J-1280 mobile jaw crusher incorporates a 1200 x 820mm (47” x 32”) high performance direct drive single toggle jaw chamber that is designed for crushing hard rock types such as granite, gneiss and basalt. The direct drive jaw chamber is fitted with an unblock feature that maximizes uptime. The integrated pan and heavy duty VGF feeder features automatic power monitoring to regulate and control material flow to the jaw chamber to prevent overflow and give optimum production in quarrying, mining, demolition and recycling applications.

    Specification Value
    Net Engine Power Tier 3 - CAT 450hp | Tier 4 Final / Stage V - Scania 450hp Tier 3 - CAT 331kW | Tier 4 Final / Stage V - Scania 331kW
    Inlet Opening 47” x 32” 1200mm x 820mm
    Operating Weight 151,843 lbs 68,875kg
    Transport Dimensions Height 12' 6'' | Width 9' 10'' | Length 56' 1'' Height 3.8m | Width 3.0m | Length 17.1m
    Working Dimensions Height 14' 9'' | Width 26' 5'' | Length 54' 7'' Height 4.49m | Width 8.06m | Length 16.63m
  • J-1280 Hybrid

    The hybrid Terex Finlay J-1280 mobile jaw crusher offers operators the flexibility to power the plant either by an onboard genset powerpack configuration or connected to an external power source. Both power options provide operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/hydraulic powered plant. The machine is fitted with a high powered alternator that generates sufficient energy that can be used to power downstream screening plants or stockpile conveyors further improving overall fuel consumption and efficiencies of production trains. The machine features a robust Terex 1200mm x 820mm (47” x 32”) electrically driven single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 2 - Scania 450hp | Stage V - Scania 450hp Tier 2 - Scania 331kW | Stage V - Scania 331kW
    Inlet Opening 47” x 32” 1200mm x 820mm
    Operating Weight 165,480lbs * est 75,060kg * est
    Transport Dimensions Height 12' 6'' | Width 10' 3'' | Length 56' 1'' Height 3.8m | Width 3.12m | Length 17.1m
    Working Dimensions Height 14' 9'' | Width 26' 5'' | Length 56' 1'' Height 4.49m | Width 8.06m | Length 17.1m

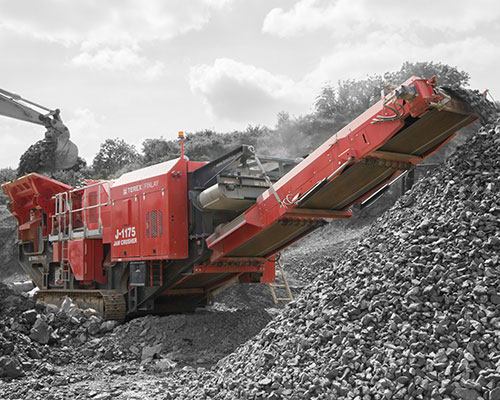

  • J-1175

    The Terex® Finlay J-1175 tracked jaw crusher is a high performance and aggressive mobile crusher. The machine incorporates a heavy duty variable speed VGF and integrated prescreen to give optimum performance in quarrying, mining, demolition and recycling applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1070mm X 760mm (42” x 30”) driven single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 3 - CAT 350hp | Tier 4 Final / Stage V - Scania 345hp Tier 3 - CAT 261kW | Tier 4 Final / Stage V - Scania 257kW
    Inlet Opening 42" x 30" 1070mm x 760mm
    Operating Weight 113,096lbs 51,300kg
    Transport Dimensions Height 11' 6'' | Width 9' 6'' | Length 47' 8'' Height 3.5m | Width 2.9m | Length 14.5m
    Working Dimensions Height 12' 1'' | Width 20' 4'' | Length 51' 8'' Height 3.9m | Width 20.4m | Length 15.7m
  • J-1175 Hybrid

    The Hybrid Terex Finlay J-1175 mobile jaw crusher offers operators the flexibility to power the plant either by mains electric connection or the onboard genset powerpack configuration. Either power option presents operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/hydraulic powered plant. The machine is fitted with a high powered alternator that generates sufficient energy that can be used to power downstream screening plants or stockpile conveyors further improving overall fuel consumption and efficiencies of production trains. The machine features a robust Terex 1070mm X 760mm (42” x 30”) electrically driven single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 2 Equivalent - Scania 350hp | Stage V - Scania DC9 345hp Tier 2 Equivalent - Scania 261kW | Stage V - Scania DC9 257kW
    Inlet Opening 42" x 30" 1070mm x 760mm
    Operating Weight 119,711lbs 54,300kg
    Transport Dimensions Height 11' 6'' | Width 9' 6'' | Length 47' 8'' Height 3.5m | Width 2.9m | Length 14.5m
    Working Dimensions Height 12' 1'' | Width 20' 4'' | Length 51' 8'' Height 3.9m | Width 6.2m | Length 15.7m

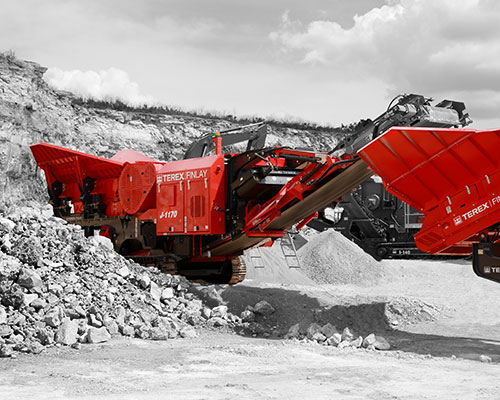

  • J-1170

    The Terex Finlay J-1170 portable jaw crusher provides high production capacity with large reduction ratios. The jaw chamber can be configured specifically for either processing construction demolition debris or quarrying applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1100mm X 700mm (44” x 28”) chamber single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 3 CAT 350hp | Tier 4 Final / Stage V - Scania 345hp Tier 3 CAT 261kW | Tier 4 Final / Stage V - Scania 257kW
    Inlet Opening 44" x 28" 1100mm x 700mm
    Operating Weight 107,806lbs 48,900kg
    Transport Dimensions Height 11' 2'' | Width 9' 6'' | Length 47' 5'' Height 3.4m | Width 2.9m | Length 14.5m
    Working Dimensions Height 13' 2'' | Width 19' 11'' | Length 52' 10'' Height 4m | Width 6.04m | Length 16.1m

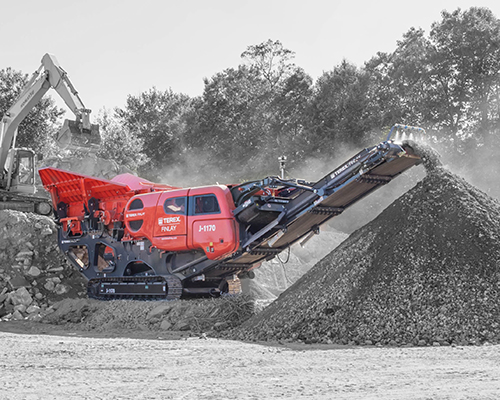

  • J-1170 (Direct Drive)

    The Terex Finlay J-1170 (direct drive) tracked jaw crusher features a heavy duty variable speed VGF and integrated prescreen giving excellent production throughput in quarrying, mining, demolition and recycling applications. The main conveyor has an excellent discharge height and increased clearance at the bottom of the chamber for rebar discharge due to the hydraulic raise/lower facility. The direct drive jaw chamber is fitted with an unblock feature that maximizes uptime. The machine features a robust Terex 1100mm X 700mm (44” x 28”) chamber single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 3 - Cat C9 275hp | Stage IIIA Constant Speed - Scania DC09 300hp | Tier 4 Final / Stage V - CAT 275hp Tier 3 - Cat C9 205kW | Stage IIIA Constant Speed - Scania DC09 226kW | Tier 4 Final / Stage V - CAT 205kW
    Inlet Opening 44" x 28" 1100mm x 700mm
    Operating Weight 105,822lbs 48,000kg
    Transport Dimensions Height 11' 1'' | Width 9'6'' | Length 54'2'' Height 3.37m | Width 2.9m | Length 16.51m
    Working Dimensions Height 14' 4'' | Width 13' 7'' | Length 52' 8'' Height 4.37m | Width 4.14m | Length 16.05m

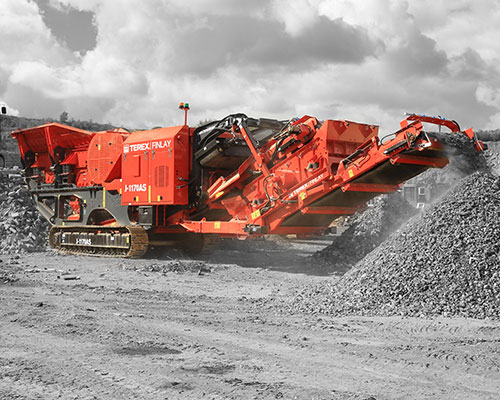

  • J-1170AS

    The J-1170AS provides the flexibility of a jaw crushing and screening plant on one machine. This highly productive machine features a detachable on-board single deck 2.44m x 1.52m (8’ X 5') sizing screen. The after screen system can be removed quickly allowing the operator to use as a standard unit, giving the operator versatility depending on the application. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1100mm X 700mm (44” x 28”) chamber single toggle jaw crusher.

    Specification Value
    Net Engine Power: Tier 3 / Stage IIIA Caterpillar C9 350hp Caterpillar C9 261kW
    Inlet Opening 44" x 28" 1100mm x 700mm
    Operating Weight 120,372lbs 54,600KG
    Transport Dimensions Height 11' 0'' | Width 9' 8'' | Length 52' 8'' Height 3.4m | Width 2.95m | Length 16m
    Working Dimensions Height 13' 2'' | Width 19' 10'' | Length 56' 3'' Height 4.01m | Width 6.04m | Length 17.16m
  • J-1160

    The Terex Finlay J-1160 mobile jaw crusher is a primary crusher for aggregates production as well as concrete and asphalt recycling applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. It is designed to be easy to transport between sites and quick to set up and tear down. The machine features a robust Terex 1000mm x 600mm (40” x 24”) single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 3 - John Deere 284hp | Tier 4 Final / Stage V - CAT 275hp Tier 3 - John Deere 212kW | Tier 4 Final / Stage V - CAT 205kW
    Inlet Opening 40" x 24" 1000mm x 600mm
    Operating Weight 77,930lbs 35,350kg
    Transport Dimensions Height 11' 2'' | Width 8' 6'' | Length 51' 6'' Height 3.5m | Width 2.6m | Length 15.7m
    Working Dimensions Height 12' 9'' | Width 15' 1'' | Length 50' 10'' Height 3.9m | Width 4.6m | Length 15.5m

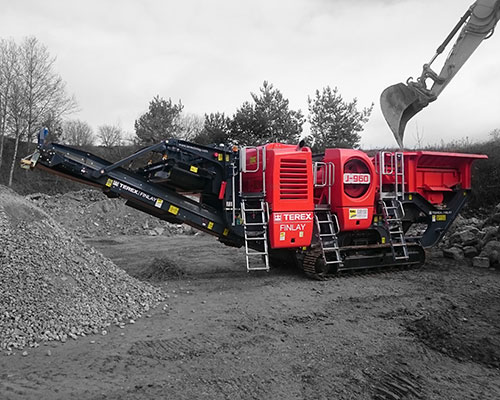

  • J-960

    The J-960 is the most compact tracked jaw crusher in the Terex® Finlay range. This aggressive and versatile crusher is ideal for small scale on-site crushing of aggregates and construction demolition waste. The direct drive jaw chamber is fitted with an unblock feature that maximizes uptime. The machine features the robust Terex 900mm x 600mm (35” x 24”) direct driven single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 3 John Deere 169hp | Tier 4 Final / Stage V - CAT 173hp Tier 3 John Deere 126kW | Tier 4 Final / Stage V - CAT 129kW
    Inlet Opening 35" x 24" 900mm x 600mm
    Operating Weight 61,730lbs 28,000kg
    Transport Dimensions Height 10' 6'' | Width 7'10'' | Length 40'8'' Height 3.2m | Width 2.4m | Length 12.4m
    Working Dimensions Height 10' 6'' | Width 12'6'' | Length 40'8'' Height 3.2m | Width 3.8m | Length 12.4m
