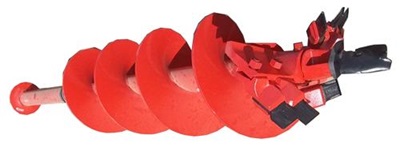

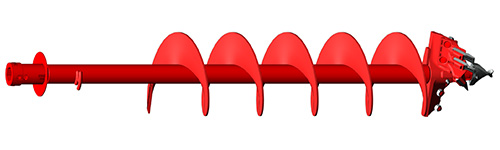

Auger, TXD (Dirt)

TXD DIGGER

This series of Augers has bolt on shank plate design.

Standard flighting on Terex® TXD Series digger derrick augers are as follows:

  • 2”, 2-1/2”, 2-5/8” or 3” Hex Hub available.
  • 5/16" thick for 30" diameter and smaller.
  • 1/2" thick for diameter larger than 30"

Standard components are as follows:


Teeth

  • TX50 (P#T29171)
  • TX52 (P#T29429)

Pilot

  • TX205 (P#T29168)



Application


Terex® TXD Series digger derrick dirt augers are manufactured to improve the drilling performance of digger derricks, for loose and compacted soils, stiff clays and soft shale. The optional TX50D (P#T29167) pilot bit greatly increases the performance of the TXD auger.



Diameter

Part number

9"

65355790

10"

65355796

12"

65355803

14"

65355811

16"

65355819

18"

65355828

20"

65355837

22"

65355854

24"

65355860

30"

65355871

36"

65355878

42"

65355885

48"

65355483

Other configurations available upon request.
