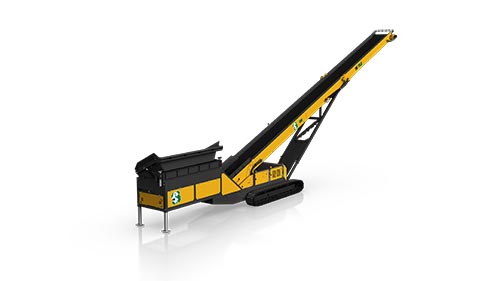

HLF75
High Level Feeder
The CBI HLF75 High Level Feeder combines an inclined screen style feeding system and stockpiling conveyor, allowing the operator to directly discharge from wheel loaders to eliminate the double handling of material on site. The HLF75 features a 75′ long conveyor and is designed to work with CBI’s range of grinding and chipping equipment. Tracks allow for easy movement around the site.
| Specification | Value |
|---|---|
| Conveyor Length | 74' 2" / 22.6m |
| Belt Width | 48" / 1200mm |
| Max Discharge Height | 32" @ 24° / 9.8m @ 24° |
| Working Dimensions | Width: 84' Height: 34' 6" / Width: 25.6m Height: 10.5m |
| Transport Dimensions | Width: 64' Height: 10' 2" / Width: 19.5m Height: 3.12m |
