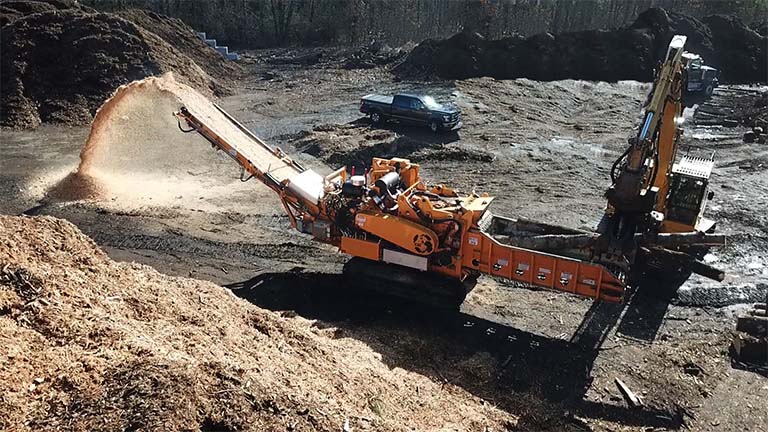

5800BT


No other horizontal wood grinder cures the headaches of load restrictions and permitting as much as the CBI Magnum Force 5800BT Portable Upswing Grinder. This portable horizontal grinder was developed to feature the same principles of the proven CBI 6800BT Grinder but is purpose-built for contractors dealing with transportation restrictions. Like CBI’s other horizontal grinders, the 5800BT never compromises strength or performance.

Request a Quote
Request Parts

Technical Documentation

Working Dimensions

Working Length 39 ft 12 m
Working Width 8 ft 40 in 2 m 54 cm
Working Height 15 ft 40 in 4 m 67 cm

Measurements

Discharge Width 4 ft 1 m 20 cm
Infeed Width 4 ft 1 m 20 cm

Productivity

Gear Box PT Tech PTT-552 PT Tech PTT-552
Hydraulic Tank Capacity Hydraulic Tank Capacity
Fuel Tank Capacity 350 Gallons 1.3L

Product Details

Rotor Size Width: 48” Diameter: 40” Shaft: 6” Number of Hammers: 20 Width: 1.21m - Diameter: 1.01m - Shaft: .152m
Weight 69,000lbs - 73,000lbs (depending on options) 31,297kg - 33,112kg (depending on options)

Power

Engine CAT C18; 765hp CAT C18; 570kW

Transport Dimensions

Transport Width 8 ft 40 in 2 m 54 cm
Transport Height 12 ft 3 m 65 cm
Transport Length 38 ft 11 in 11 m 86 cm

Downloads

Others

.pdf 5800bt-horizontal-grinder-brochure_1497ca15-6aa9-4bb5-9d0c-256c61c61751
5800BT Horizontal Grinder Brochure
